3211-20 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

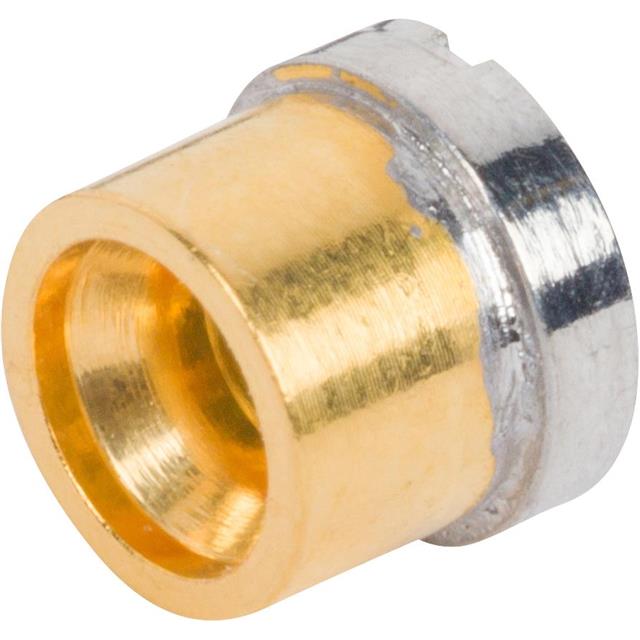

SMPM MALE PCB SURFACE MOUNT CONNECTOR (GLASS SEAL, PRE-TINNED), SB /INDIVIDUAL - TRAY (PACK FILL QTY: 100)
| Part | Body Finish | Center Contact Plating | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Mating Cycles | Dielectric Material | Housing Color | Impedance | Connector Style | Mounting Type | Shield Termination | Contact Termination | Number of Ports | Features | Frequency - Max | Fastening Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | Gold | Steel | -65 °C | 165 °C | 1000 cycles | Glass | Gold | 50 Ohm | SMPM | Surface Mount | Solder | Solder | 1 | Pre-Tinned (J-STD-001) Smooth Bore | 40 Gbps | Snap-On | Male Pin Plug |
 McGill Microwave Systems | Gold | Gold | Steel | -65 °C | 165 °C | 1000 cycles | Glass | Gold | 50 Ohm | SMPM | Surface Mount | Solder | Solder | 1 | Smooth Bore | 40 Gbps | Snap-On | Male Pin Plug |
McGill Microwave Systems | Gold | Gold | Steel | -65 °C | 165 °C | 100 cycles | Glass | Gold | 50 Ohm | SMPM | Surface Mount | Solder | Solder | 1 | Full Detent Pre-Tinned (J-STD-001) | 40 Gbps | Snap-On | Male Pin Plug |
McGill Microwave Systems | Gold | Gold | Steel | -65 °C | 165 °C | 100 cycles | Glass | Gold | 50 Ohm | SMPM | Surface Mount | Solder | Solder | 1 | Full Detent | 40 Gbps | Snap-On | Male Pin Plug |
