132255 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT JACK, SOLDER, 50 OHM, BERYLLIUM COPPER
| Part | Impedance | Fastening Type | Frequency - Max | Connector Type | Housing Color | Shield Termination | Connector Style | Mounting Type | Contact Termination | Number of Ports | Center Contact Material | Voltage Rating | Center Contact Plating | Body Finish | Dielectric Material | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | 50 Ohm | Threaded | 18 GHz | Jack Male Pin | Gold | Solder | RP-SMA | Board Edge End Launch | Solder | 1 | Beryllium Copper | 375 V | Gold | Gold | Polytetrafluoroethylene (PTFE) | Brass | -65 °C | 165 °C | 500 cycles |

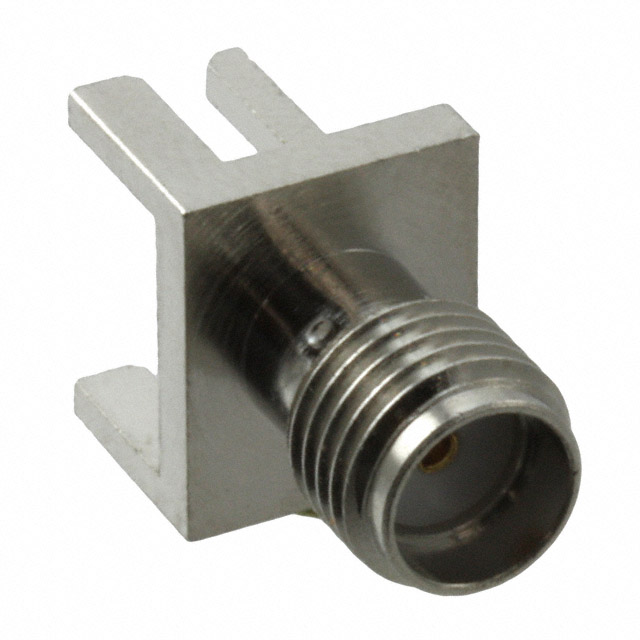

 McGill Microwave Systems | 50 Ohm | Threaded | 18 GHz | Female Socket Recepture | Silver | Solder | SMA | Board Edge End Launch | Solder | 1 | Beryllium Copper | Gold | Nickel | Polytetrafluoroethylene (PTFE) | Brass | -65 °C | 165 °C | 500 cycles |
