43-0116 Series

Catalog

CONN RCPT MALE 4POS GOLD SOLDER

Part	Orientation	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Features	Insert Material	Primary Material	Number of Positions	Voltage Rating	Termination	Material Flammability Rating	Shell Size - Insert	Color	Shell Finish	Fastening Type	Connector Type	Mounting Feature	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Contact Material	Contact Finish - Mating	Shell Material
McGill Microwave Systems 43-01167	A	4 A	Dust Tight Waterproof	IP67	Shielded	Board Guide Board Lock	Nylon 6/6 PA66 Polyamide	Metal	4	250 V	Solder	UL94	M12-4	Silver	Nickel	Threaded	Male Pins Receptacle	Bulkhead Front Side Nut	85 °C	-30 °C	Panel Mount Through Hole	Copper Zinc	Gold	Copper Zinc
McGill Microwave Systems 43-01163	A	4 A	Dust Tight Waterproof	IP67	Shielded	Board Guide Board Lock	Nylon 6/6 PA66 Polyamide	Metal	4	250 V	Solder	UL94 V-0	M12-4	Silver	Nickel	Threaded	Female Sockets Plug	Bulkhead	80 °C	-30 °C	Panel Mount Through Hole	Copper Zinc	Gold	Copper Zinc
McGill Microwave Systems 43-01164	A	4 A	Dust Tight Waterproof	IP67	Unshielded	Board Guide Board Lock	Nylon 6/6 PA66 Polyamide	Metal	5	60 V	Solder	UL94 V-0	M12-5	Silver	Nickel	Threaded	Female Sockets Plug	Bulkhead	80 °C	-30 °C	Panel Mount Through Hole	Copper Zinc	Gold	Copper Zinc
McGill Microwave Systems 43-01165	A	4 A	Dust Tight Waterproof	IP67	Shielded	Board Guide Board Lock	Nylon 6/6 PA66 Polyamide	Metal	5	60 V	Solder	UL94 V-0	M12-5	Silver	Nickel	Threaded	Female Sockets Plug	Bulkhead	80 °C	-30 °C	Panel Mount Through Hole	Copper Zinc	Gold	Copper Zinc
McGill Microwave Systems 43-01166	A	4 A	Dust Tight Waterproof	IP67	Unshielded	Board Guide Board Lock	Nylon 6/6 PA66 Polyamide	Metal	4	250 V	Solder	UL94	M12-4	Silver	Nickel	Threaded	Male Pins Receptacle	Bulkhead Front Side Nut	85 °C	-30 °C	Panel Mount Through Hole	Copper Zinc	Gold	Copper Zinc

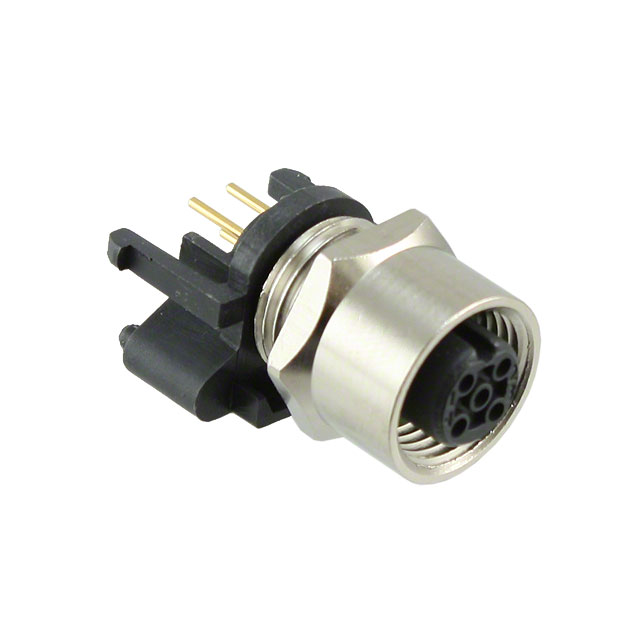

McGill Microwave Systems 43-01162	A	4 A	Dust Tight Waterproof	IP67	Unshielded	Board Guide Board Lock	Nylon 6/6 PA66 Polyamide	Metal	4	250 V	Solder	UL94 V-0	M12-4	Silver	Nickel	Threaded	Female Sockets Plug	Bulkhead	80 °C	-30 °C	Panel Mount Through Hole	Copper Zinc	Gold	Copper Zinc

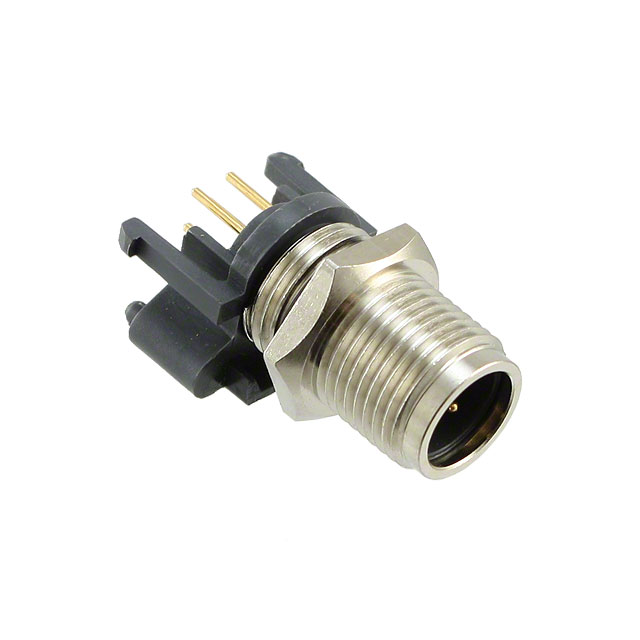

McGill Microwave Systems 43-01169	A	4 A	Dust Tight Waterproof	IP67	Shielded	Board Guide Board Lock	Nylon 6/6 PA66 Polyamide	Metal	5	60 V	Solder	UL94	M12-5	Silver	Nickel	Threaded	Male Pins Receptacle	Bulkhead Front Side Nut	85 °C	-30 °C	Panel Mount Through Hole	Copper Zinc	Gold	Copper Zinc
