NP Series

Catalog

TERM BLK 2P SIDE ENTRY 10MM PCB

Part	Mating Orientation	Wire Termination	Positions Per Level	Mounting Type	Number of Levels	Pitch	Color	Features	Voltage	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Clamp Material - Plating	Contact Material	Plating	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)	Current
McGill Microwave Systems NP0211020000G	Horizontal with Board	Leg Spring Push-In Spring Screwless	2	Through Hole	1	0.394 in	Black	Interlocking (Side)
McGill Microwave Systems NP0411510000G	Horizontal with Board	Leg Spring Push-In Spring Screwless	4	Through Hole	1	0.394 in	Green	Interlocking (Side)	600 V	20.5 AWG	4 AWG
McGill Microwave Systems NP0211510000G	Horizontal with Board	Leg Spring Push-In Spring Screwless	2	Through Hole	1	0.394 in	Green	Interlocking (Side)	600 V	20.5 AWG	4 AWG
McGill Microwave Systems NP0110500000G		Leg Spring Push-In Spring Screwless	1	Through Hole	1		Green	Interlocking (Side)
McGill Microwave Systems NP0211500000G	Horizontal with Board	Leg Spring Push-In Spring Screwless	2	Through Hole	1	0.394 in	Green		300 V	20.5 AWG	8 AWG	Steel Stainless	Copper	Tin Plated	Thermoplastic	-40 °C	115 °C	40 A

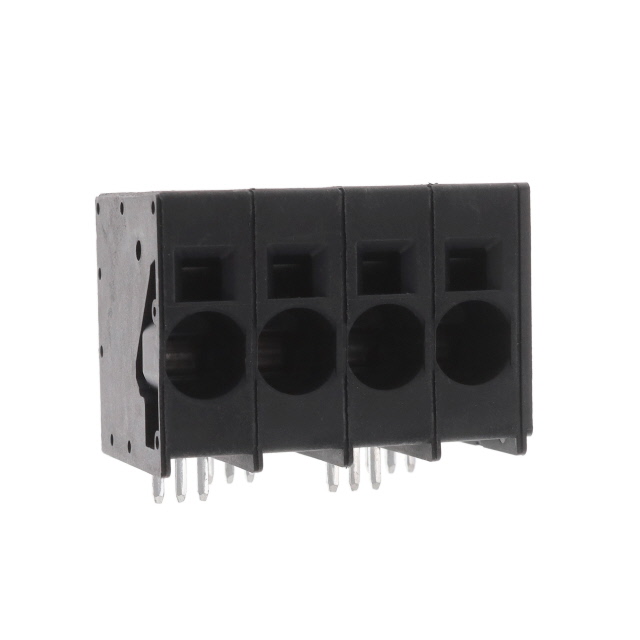

McGill Microwave Systems NP0411020000G	Horizontal with Board	Leg Spring Push-In Spring Screwless	4	Through Hole	1	0.394 in	Black	Interlocking (Side)
McGill Microwave Systems NP1111510000G	Horizontal with Board	Leg Spring Push-In Spring Screwless	11	Through Hole	1	0.394 in	Green	Interlocking (Side)	600 V	20.5 AWG	4 AWG
McGill Microwave Systems NP0311510000G	Horizontal with Board	Leg Spring Push-In Spring Screwless	3	Through Hole	1	0.394 in	Green	Interlocking (Side)	600 V	20.5 AWG	4 AWG
McGill Microwave Systems NP1211510000G	Horizontal with Board	Leg Spring Push-In Spring Screwless	12	Through Hole	1	0.394 in	Green	Interlocking (Side)	600 V	20.5 AWG	4 AWG
McGill Microwave Systems NP0911510000G	Horizontal with Board	Leg Spring Push-In Spring Screwless	9	Through Hole	1	0.394 in	Green	Interlocking (Side)	600 V	20.5 AWG	4 AWG
