RTS718 Series

Catalog

CONN RCPT HSG FMALE 23POS PNL MT

Part	Contact Type	Number of Positions	Ingress Protection IP Rating	Ingress Protection Description	Shell Material	Contact Size	Mounting Type	Housing Color	Material Flammability Rating	Fastening Type	Shielding	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Connector Type	Type	Orientation	Mounting Feature	Note	Insert Material	Contact Shape	Includes Total Count	Includes	Operating Temperature (Max)	Operating Temperature (Min)	Features	Shell Size - Insert Width	Shell Size - Insert Length
McGill Microwave Systems RTS718N23S03	Crimp	23	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	16 S	Panel Mount	Black	UL94 V-0	Bayonet Lock	Unshielded	23	18	Receptacle Housing	For Female Sockets	N (Normal)	Bulkhead Front Side Nut	Contacts Not Included	Thermoplastic	Circular	4 pcs	Connector Gasket Nut O-Ring	125 °C	-40 °C

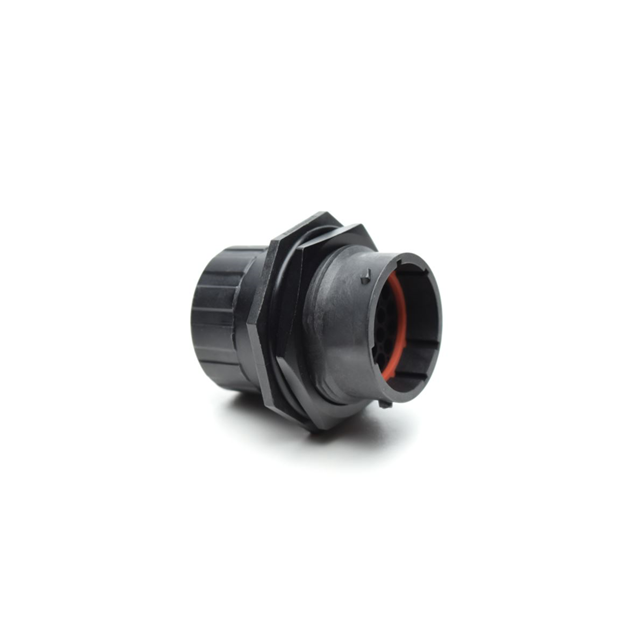

McGill Microwave Systems RTS718N23PHEC03	Crimp	23	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	16 S	Panel Mount	Black	UL94 V-0	Bayonet Lock	Unshielded	23	18	Receptacle Housing	For Male Pins	N (Normal)	Bulkhead Front Side Nut	Contacts Not Included	Thermoplastic	Circular	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	125 °C	-40 °C	Backshell
McGill Microwave Systems RTS718N8P03	Crimp	8	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	2.5 mm	Panel Mount	Black	UL94 V-0	Bayonet Lock	Unshielded			Receptacle Housing	For Male Pins	N (Normal)	Bulkhead Front Side Nut	Contacts Not Included	Thermoplastic	Circular	4 pcs	Connector Gasket Nut O-Ring	125 °C	-40 °C		8 mm	18 mm
McGill Microwave Systems RTS718N32S03	Crimp	32	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	20	Panel Mount	Black	UL94 V-0	Bayonet Lock	Unshielded	32	18	Receptacle Housing	For Female Sockets	N (Normal)	Bulkhead Front Side Nut	Contacts Not Included	Thermoplastic	Circular	4 pcs	Connector Gasket Nut O-Ring	125 °C	-40 °C

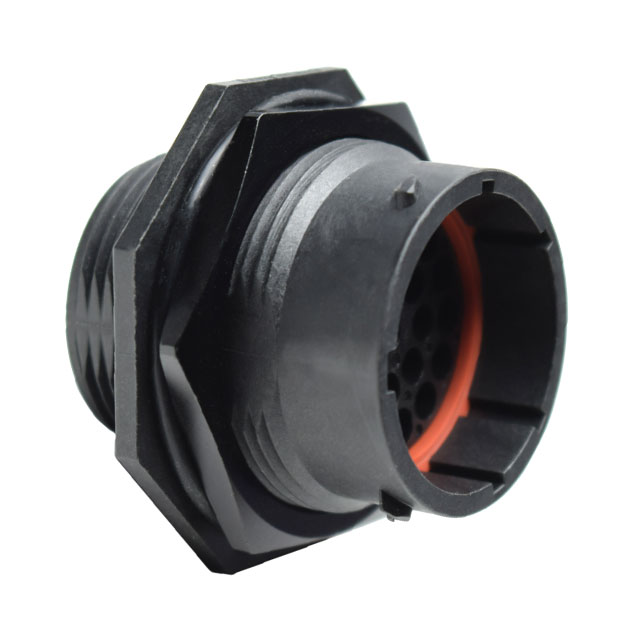

McGill Microwave Systems RTS718N23P03	Crimp	23	IP67 IP69K	Dust Tight Water Resistant Waterproof	Thermoplastic	16 S	Panel Mount	Black	UL94 V-0	Bayonet Lock	Unshielded	23	18	Receptacle Housing	For Male Pins	N (Normal)	Bulkhead Front Side Nut	Contacts Not Included	Thermoplastic	Circular	4 pcs	Connector Gasket Nut O-Ring	125 °C	-40 °C
