ALM06FD13 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG MALE 8POS GOLD CRIMP

Part	Features	Applications	Insert Material	Contact Finish - Mating	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Number of Positions	Fastening Type	Termination	Mounting Type	Orientation	Shielding	Shell Size - Insert Length	Shell Size - Insert Width	Ingress Protection Description	Ingress Protection IP Rating	Shell Finish	Shell Material	Current Rating	Primary Material	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Color
Amphenol Aerospace Operations ALM06FD13-8P	Coupling Nut	Aviation	Silicon Rubber	Gold	UL94 V-0	125 °C	-65 °C	Male Pins Plug	8	Threaded	Crimp	Free Hanging (In-Line)	N (Normal)	Shielded	13 mm	8 mm	Dust Tight Waterproof	IP67	Electroless Nickel	Composite	7.5 A	Composite
Amphenol Aerospace Operations ALM06FD13-98P	Coupling Nut	Aviation	Silicon Rubber	Gold	UL94 V-0	125 °C	-65 °C	Male Pins Plug	10	Threaded	Crimp	Free Hanging (In-Line)	N (Normal)	Shielded			Dust Tight Waterproof	IP67	Electroless Nickel	Composite	7.5 A	Composite	98	13
Amphenol Aerospace Operations ALM06FD13-8S(072)	Coupling Nut	Aviation	Silicon Rubber	Gold	UL94 V-0	125 °C	-65 °C	Female Sockets Plug	8	Threaded	Crimp	Free Hanging (In-Line)	N (Normal)	Shielded	13 mm	8 mm	Dust Tight Waterproof	IP67	Gray Zinc Nickel	Composite	7.5 A	Composite			Gray

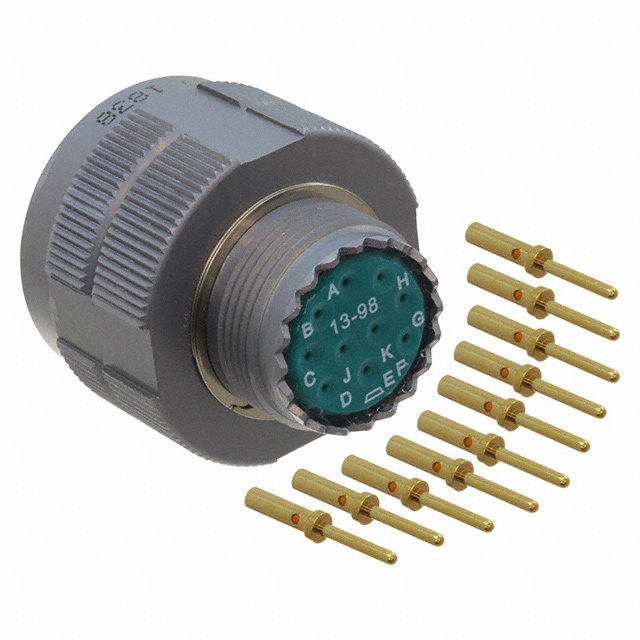

Amphenol Aerospace Operations ALM06FD13-98P(072)	Coupling Nut	Aviation	Silicon Rubber	Gold	UL94 V-0	125 °C	-65 °C	Male Pins Plug	10	Threaded	Crimp	Free Hanging (In-Line)	N (Normal)	Shielded			Dust Tight Waterproof	IP67	Gray Zinc Nickel	Composite	7.5 A	Composite	98	13	Gray
Amphenol Aerospace Operations ALM06FD13-71S(072)	Coupling Nut	Aviation	Silicon Rubber	Gold	UL94 V-0	125 °C	-65 °C	Female Sockets Plug	2	Threaded	Crimp	Free Hanging (In-Line)	N (Normal)	Shielded			Dust Tight Waterproof	IP67	Gray Zinc Nickel	Composite	23 A	Composite	71	13	Gray
