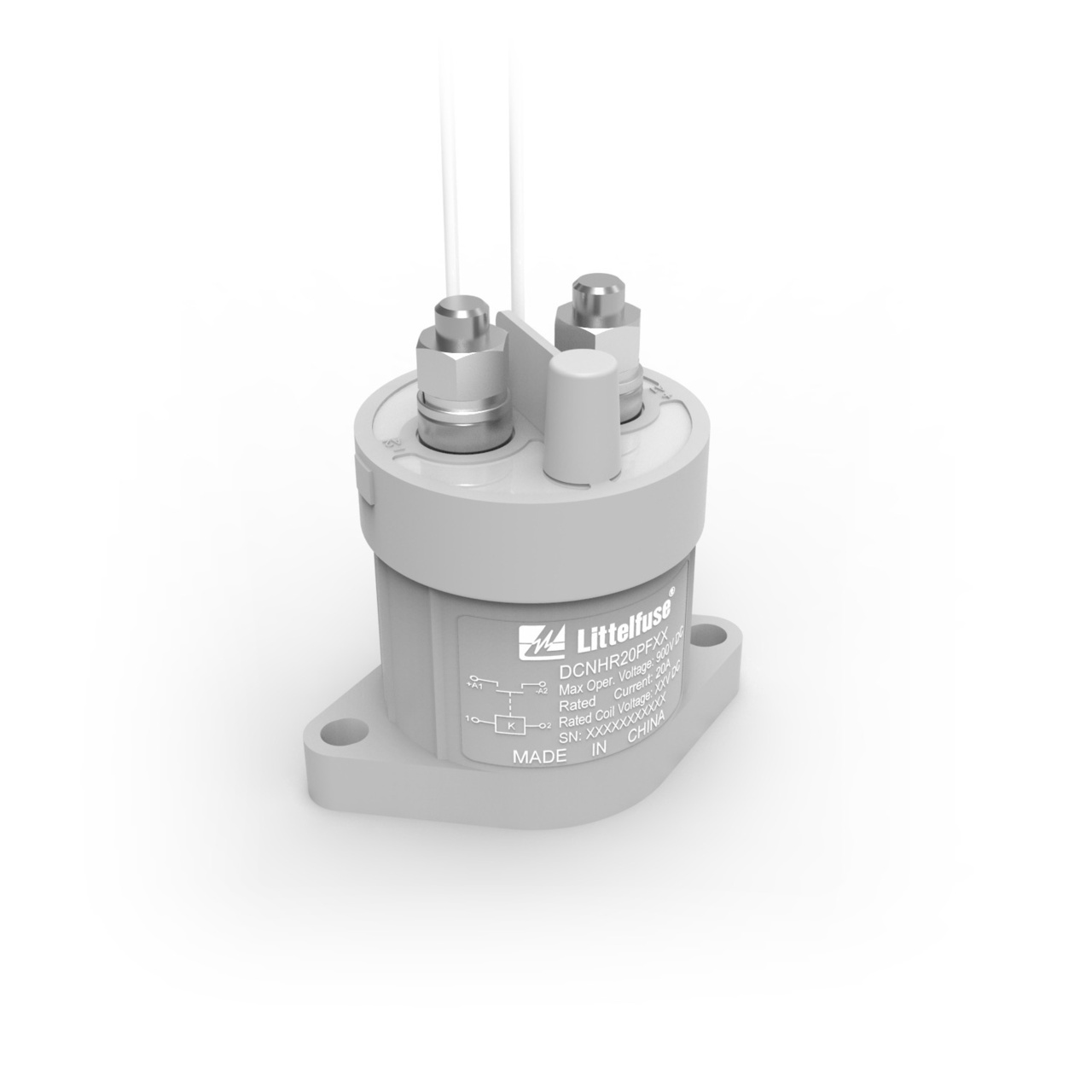

DCNHR20PF12 Series

DCNHR 20A 450V P 12Vcoil

Catalog

DCNHR 20A 450V P 12Vcoil

Part	Switching Voltage DC (Max)	Coil Voltage	Termination Style	Must Release Voltage	Form A Count	Contact Form	Must Operate Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Contact Rating (Current)	Mounting Type
LITTELFUSE DCNHR20PF12	900 VDC	12 VAC	Stud Wire Leads	1 VDC	1	SPST-NO	9 VDC	-40 °C	85 °C	20 A	Chassis Mount

Catalog

DCNHR 20A 450V P 12Vcoil

Description

The DCNHR Series 900V Max High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff. This DCNHR Series contactor relay (DCNHR20PF12) is for 20A contact switching and features polarized main contacts and a 12V coil.
