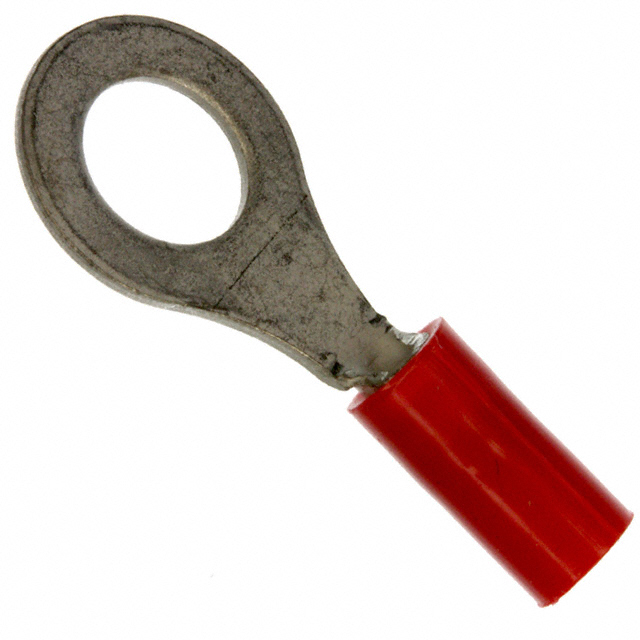

32953 Series

Catalog

PG R 22-16 COMM 22-18 MIL 1/4

Part	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Thickness	Terminal Type	Insulation	Width - Outer Edges	Features	Mounting Type	Length - Overall	Termination	Contact Material	Stud/Tab Size	Color	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation
TE Connectivity AMP Connectors 2-32953-1	16 AWG	22 AWG	Tin	0.031 in	Circular	Insulated	0.469 in	Serrated Termination	Free Hanging (In-Line)	1.09 in	Crimp	Copper	0.25 Stud	Red	0.08 in	0.125 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 8-32953-1	16 AWG	22 AWG	Tin	0.031 in	Circular	Insulated	0.469 in	Serrated Termination	Free Hanging (In-Line)	1.09 in	Crimp	Copper	0.25 Stud	Red	0.08 in	0.125 in	Poly-Vinyl Chloride PVC
