ATP06-2S Series

Catalog

2 POSITION PLUG, SOCKET, REDUCED

Part	Operating Temperature (Max)	Operating Temperature (Min)	Color	Contact Termination	Insulation Material	Number of Rows	Features	Fastening Type	Contact Type	Mounting Type	Connector Type	Number of Positions	Note	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Wire Type	Cable Termination

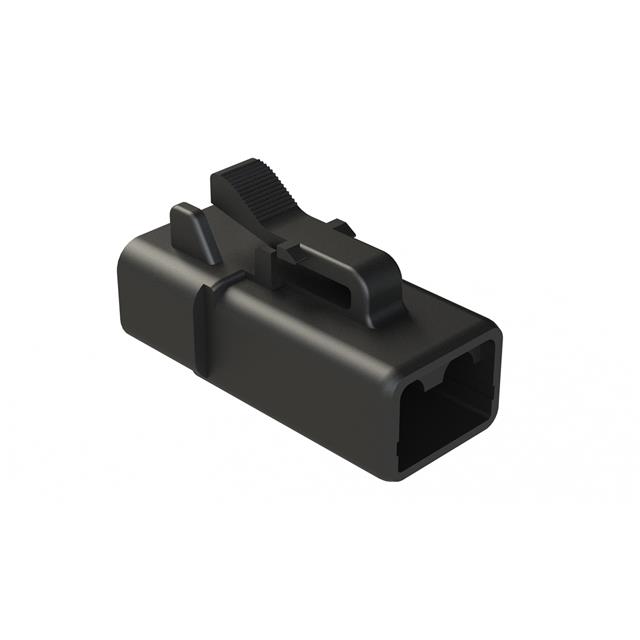

McGill Microwave Systems ATP06-2S-RD01BK	125 °C	-55 °C	Black	Crimp	Thermoplastic	1	IP67 Reduced Wire Seals Sealed	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2

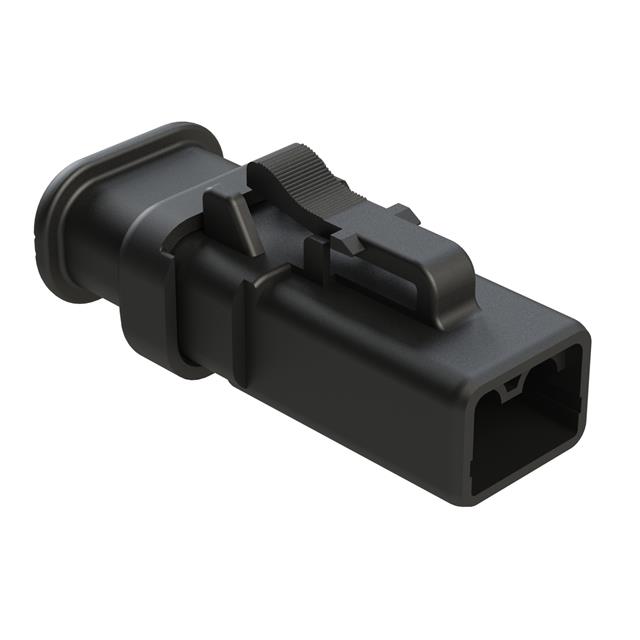

McGill Microwave Systems ATP06-2S-SR02BK	125 °C	-55 °C	Black	Crimp	Thermoplastic	1	Cap (Cover) IP68 IP69K Sealed Strain Relief	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2
McGill Microwave Systems ATP06-2S-BLK	125 °C	-55 °C	Black	Crimp	Thermoplastic	1	Sealed	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2	Contacts Not Included

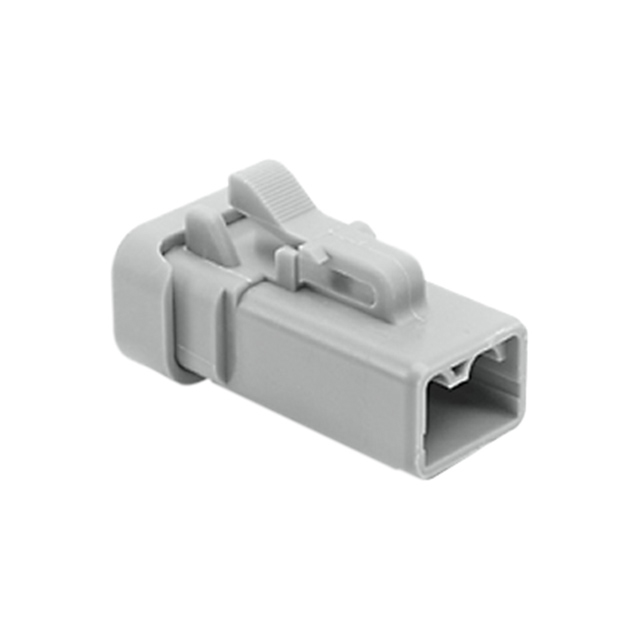

McGill Microwave Systems ATP06-2S-EC01	125 °C	-55 °C	Gray	Crimp	Thermoplastic	1	Cap (Cover) Sealed	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2	Contacts Not Included
McGill Microwave Systems ATP06-2S-SR01BK	125 °C	-55 °C	Black	Crimp	Thermoplastic	1	Cap (Cover) IP68 IP69K Sealed Strain Relief	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2
McGill Microwave Systems ATP06-2S-KIT01			Gray			1	Wedge Lock	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2		14 AWG	12 AWG	Discrete	Crimp
McGill Microwave Systems ATP06-2S-MM01	125 °C	-55 °C	Gray	Crimp	Thermoplastic	1	Cap (Cover) IP68 IP69K Reduced Wire Seals	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2
McGill Microwave Systems ATP06-2S	125 °C	-55 °C	Gray	Crimp	Thermoplastic	1	Sealed	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2	Contacts Not Included

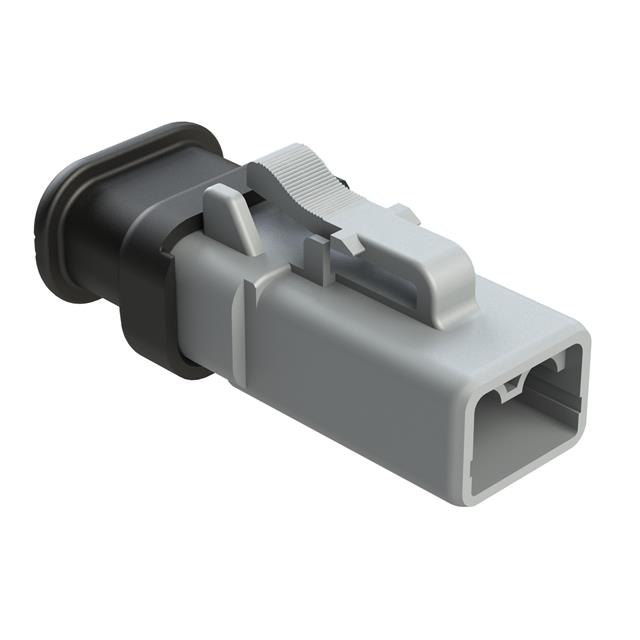

McGill Microwave Systems ATP06-2S-SR01	125 °C	-55 °C	Gray	Crimp	Thermoplastic	1	Cap (Cover) IP68 IP69K Sealed Strain Relief	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2
McGill Microwave Systems ATP06-2S-MM01BLK	125 °C	-55 °C	Black	Crimp	Thermoplastic	1	Cap (Cover) IP68 IP69K Reduced Wire Seals	Latch Lock	Female Socket	Free Hanging (In-Line)	Plug	2
