ATV02 Series

Catalog

AUTOMOTIVE CONNECTOR HOUSING, ATV SERIES, RECEPTACLE, 18 POSITIONS

Part	Note	Fastening Type	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Rows	Number of Positions	Contact Type	Color	Mounting Type	Features	Contact Termination	Insulation Material
McGill Microwave Systems ATV02-18PB	Contacts Not Included	Latch Holder	Receptacle	125 °C	-55 °C	3	18	Male Pin	Black	Panel Mount	IP67 Mounting Flange Sealed	Crimp	Thermoplastic

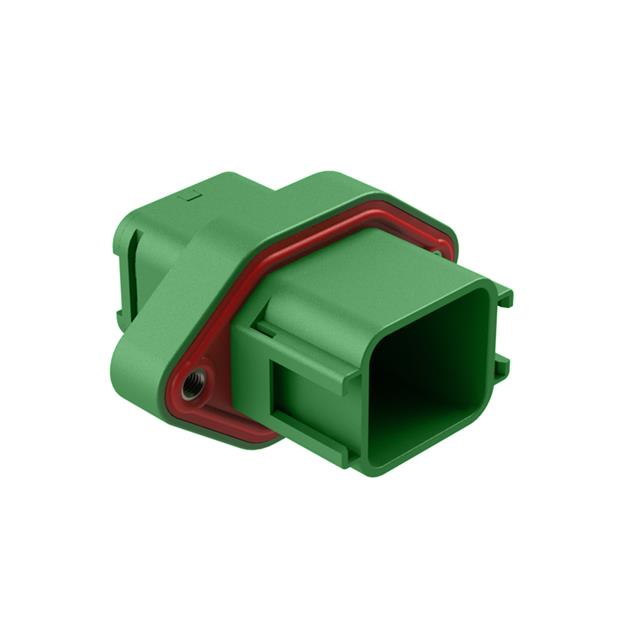

McGill Microwave Systems ATV02-18PC	Contacts Not Included	Latch Holder	Receptacle	125 °C	-55 °C	3	18	Male Pin	Green	Panel Mount	IP67 Mounting Flange Sealed	Crimp	Thermoplastic
McGill Microwave Systems ATV02-18PA-RR01	Contacts Not Included	Latch Holder	Receptacle	125 °C	-55 °C	3	18	Male Pin	Gray	Panel Mount	IP67 Mounting Flange Sealed	Crimp	Thermoplastic
McGill Microwave Systems ATV02-18PD	Contacts Not Included	Latch Holder	Receptacle	125 °C	-55 °C	3	18	Male Pin	Brown	Panel Mount	IP67 Mounting Flange Sealed	Crimp	Thermoplastic

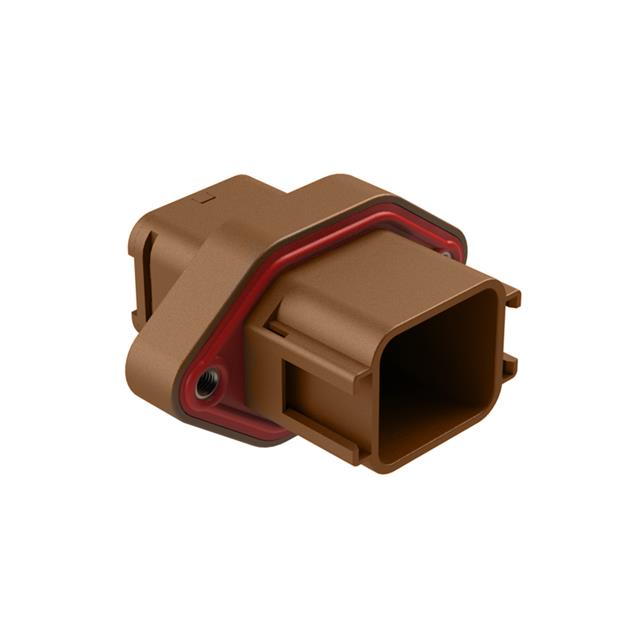

McGill Microwave Systems ATV02-18PD-RR01	Contacts Not Included	Latch Holder	Receptacle	125 °C	-55 °C	3	18	Male Pin	Brown	Panel Mount	IP67 Mounting Flange Sealed	Crimp	Thermoplastic
McGill Microwave Systems ATV02-18PA	Contacts Not Included	Latch Holder	Receptacle	125 °C	-55 °C	3	18	Male Pin	Gray	Panel Mount	IP67 Mounting Flange Sealed	Crimp	Thermoplastic

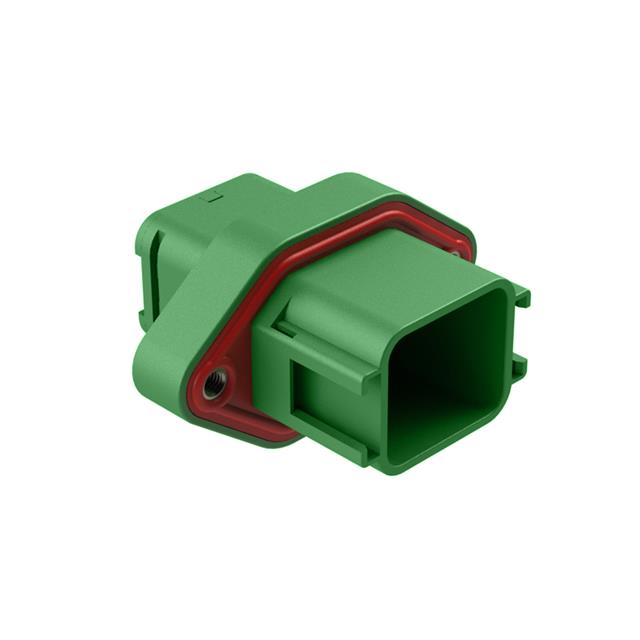

McGill Microwave Systems ATV02-18PC-RR01	Contacts Not Included	Latch Holder	Receptacle	125 °C	-55 °C	3	18	Male Pin	Green	Panel Mount	IP67 Mounting Flange Sealed	Crimp	Thermoplastic
