C091 31N005 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

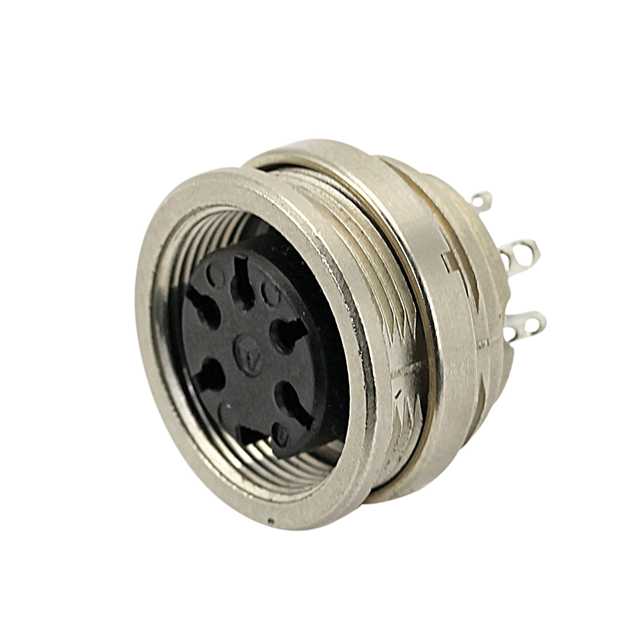

FRONT MOUNTING FEMALE METAL RECE
| Part | Shell Material | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Contact Finish - Mating | Applications | Termination | Current Rating | Fastening Type | Voltage Rating | Shielding | Insert Material | Material Flammability Rating | Shell Finish | Color | Shell Size - Insert | Ingress Protection Description | Ingress Protection IP Rating | Connector Type | Mounting Feature | Orientation | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Zinc Die Cast | 5 | 100 °C | -40 °C | Panel Mount | Gold | Industrial Instrumentation Marine Medical Testing Equipment & Measurement | Solder Cup | 7 A | Threaded | 250 V | Shielded | Thermoplastic | UL94 V-0 | Nickel | Silver | M16-5 | Dust Tight Water Resistant Waterproof | IP65 IP67 IP69K | Female Sockets Receptacle | Bulkhead Rear Side Nut | Keyed | Metal |
