NBB2-8 Series
Manufacturer: Pepperl+Fuchs, Inc.
Beta
⌘K

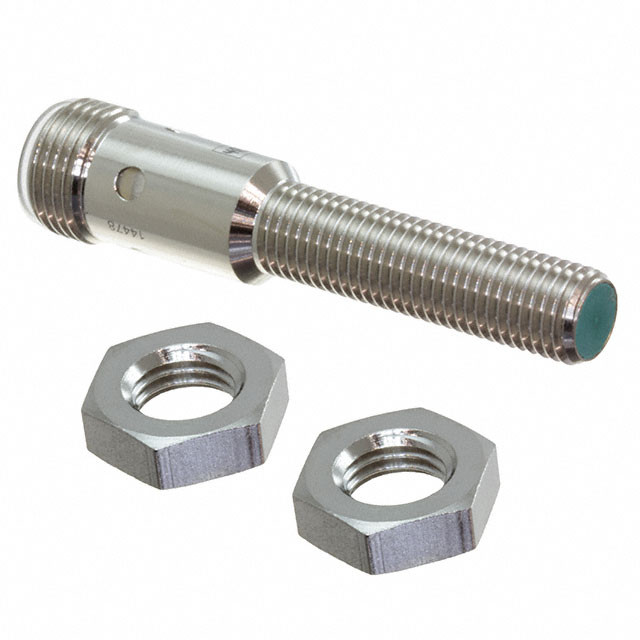

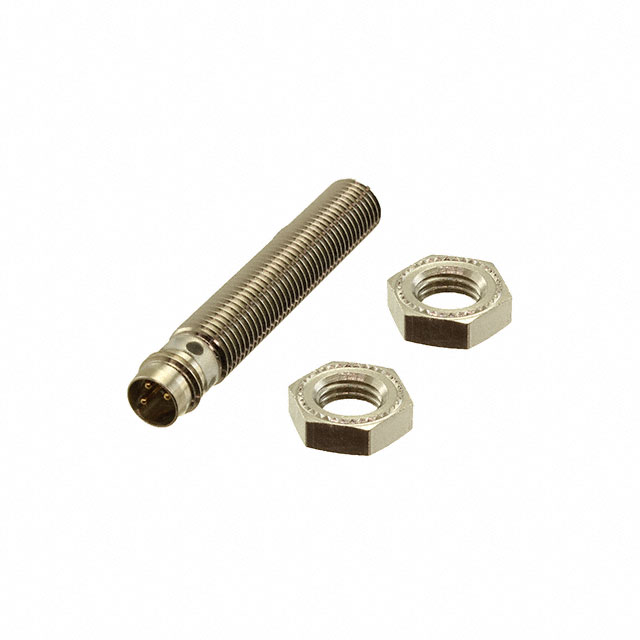

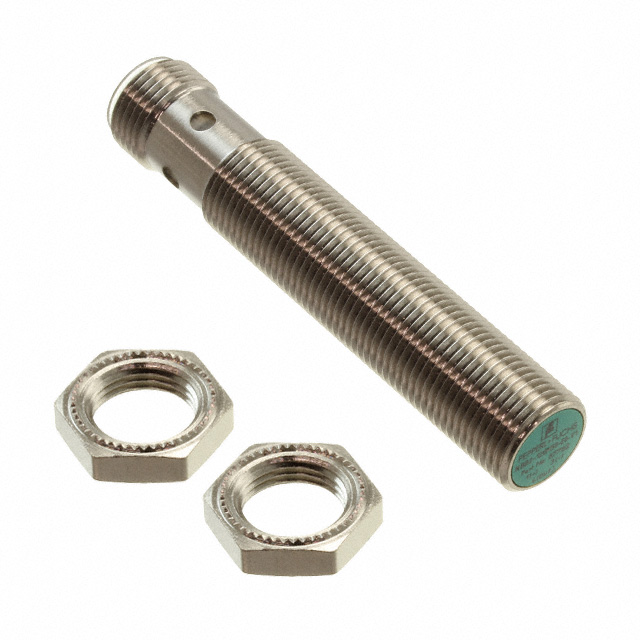

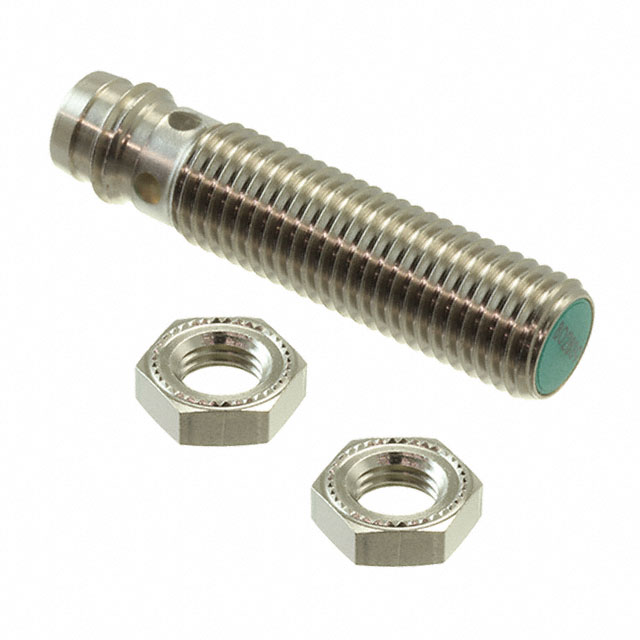

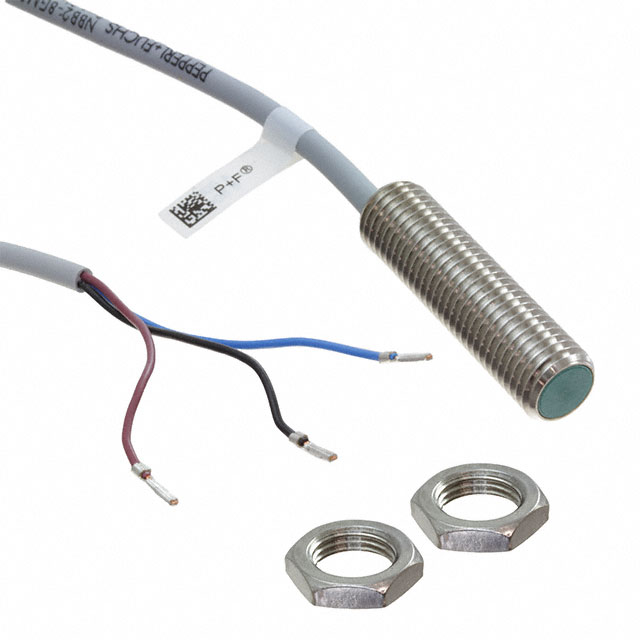

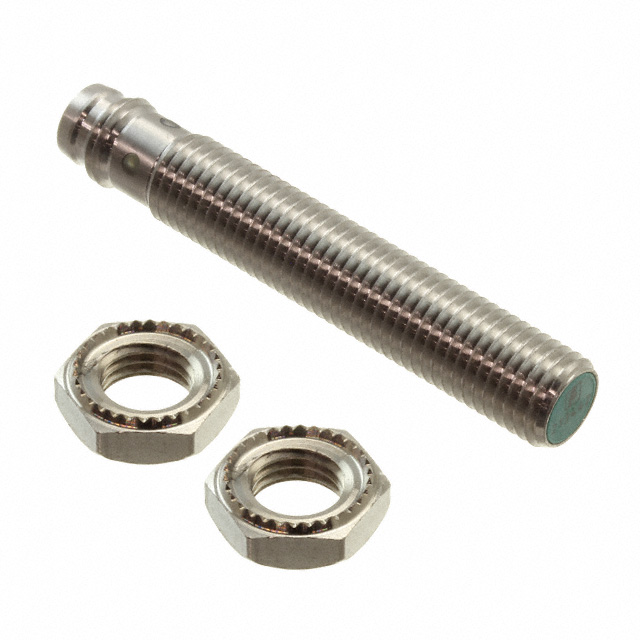

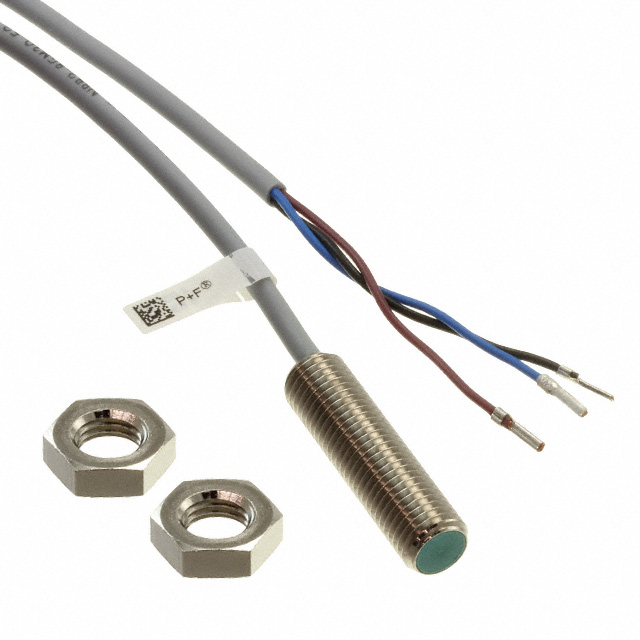

INDUCTIVE SENSOR
| Part | Material - Body | Sensor Type | Sensing Distance | Output Type | Indicator | Ingress Protection | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Termination Style | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pepperl+Fuchs, Inc. | Nickel-Plated Brass | Inductive | 0.079 " | 3-Wire NPN-NO | LED | IP67 | Cylinder Threaded - M8 | -40 °C | 85 °C | 5 V | 30 VDC | Connector | Unshielded |
 Pepperl+Fuchs, Inc. | Nickel-Plated Brass | Inductive | 0.079 " | 3-Wire PNP-NO | LED | IP67 | Cylinder Threaded - M8 | -40 °C | 85 °C | 5 V | 30 VDC | Connector | Unshielded |
 Pepperl+Fuchs, Inc. | Nickel-Plated Brass | Inductive | 0.079 " | 4-Wire NO PNP-NC | LED | IP67 | Cylinder Threaded - M8 | -40 °C | 85 °C | 5 V | 30 VDC | Connector | Unshielded |
 Pepperl+Fuchs, Inc. | Stainless Steel | Inductive | 0.079 " | 3-Wire PNP-NO | LED | IP67 | Cylinder Threaded - M8 | -25 °C | 70 °C | 10 VDC | 30 VDC | Connector | Unshielded |
 Pepperl+Fuchs, Inc. | Nickel-Plated Brass | Inductive | 0.079 " | 3-Wire PNP-NO | LED | IP67 | Cylinder Threaded - M8 | -40 °C | 85 °C | 5 V | 30 VDC | Connector | Unshielded |
 Pepperl+Fuchs, Inc. | Nickel-Plated Brass | Inductive | 0.079 " | 3-Wire NPN-NO | LED | IP67 | Cylinder Threaded - M8 | -40 °C | 85 °C | 5 V | 30 VDC | Cable | Unshielded |
 Pepperl+Fuchs, Inc. | Nickel-Plated Brass | Inductive | 0.079 " | 3-Wire PNP-NO | LED | IP67 | Cylinder Threaded - M8 | -40 °C | 85 °C | 5 V | 30 VDC | Cable | Unshielded |
 Pepperl+Fuchs, Inc. | Nickel-Plated Brass | Inductive | 0.079 " | 3-Wire NPN-NO | LED | IP67 | Cylinder Threaded - M8 | -40 °C | 85 °C | 5 V | 30 VDC | Connector | Unshielded |
 Pepperl+Fuchs, Inc. | Nickel-Plated Brass | Inductive | 0.079 " | 3-Wire PNP-NO | LED | IP67 | Cylinder Threaded - M8 | -40 °C | 85 °C | 5 V | 30 VDC | Cable | Unshielded |
 Pepperl+Fuchs, Inc. | Nickel-Plated Brass | Inductive | 0.079 " | 3-Wire PNP-NO | LED | IP67 | Cylinder Threaded - M8 | -40 °C | 85 °C | 5 V | 30 VDC | Connector | Unshielded |
