POM Series

Catalog

MICROPHONE, ECM, OMNIDIRECTIONAL, 2.2 KOHM, -38 DB, 110 DB AOP, 60DB SNR, 2 PINS, 2 TO 10 VDC

Part	Shape	Direction	Voltage Range (Min)	Voltage Range (Max)	Current - Supply	Sensitivity (Nominal)	Sensitivity Tolerance	Output Type	Type	Frequency Range (Max)	Frequency Range (Min)	Port Location	Termination	Voltage - Rated	Size / Dimension Diameter	Impedance	S/N Ratio	Height (Max)
PUI Audio, Inc. POM-2738P-R	Circular	Omnidirectional	2 V	10 V	500 µA	-38 dB	3 dB	Analog	Electret Condenser	15 kHz	30 Hz	Top	PC Pins	2 VAC	0.236 in	2.2 kOhms	60 dB	0.126 in

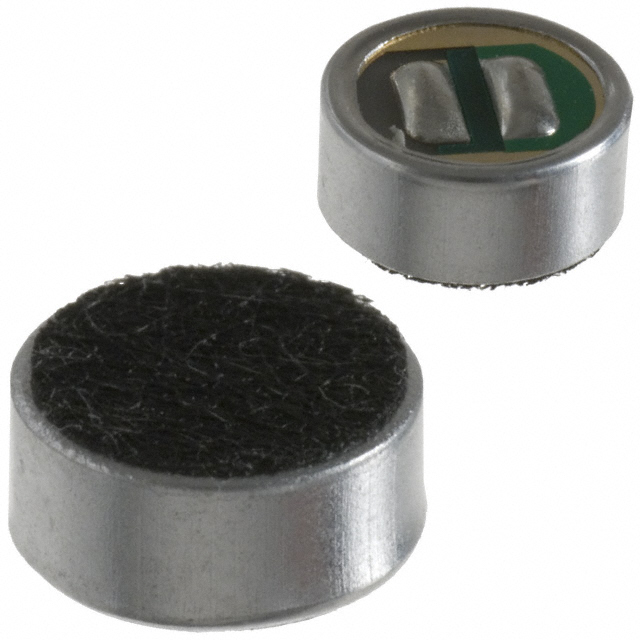

PUI Audio, Inc. POM-3046L-R	Circular	Omnidirectional	2 V	10 V	500 µA	-46 dB	3 dB	Analog	Electret Condenser	15 kHz	30 Hz	Top	Solder Pads	2 VAC	0.236 in	2.2 kOhms	60 dB	0.126 in
PUI Audio, Inc. POM-2242P-C33-R	Circular	Omnidirectional	2 V	10 V	500 µA	-42 dB	3 dB	Analog	Electret Condenser	16 kHz	50 Hz	Top	PC Pins	2 VAC	0.236 in	2.2 kOhms	60 dB	0.094 in

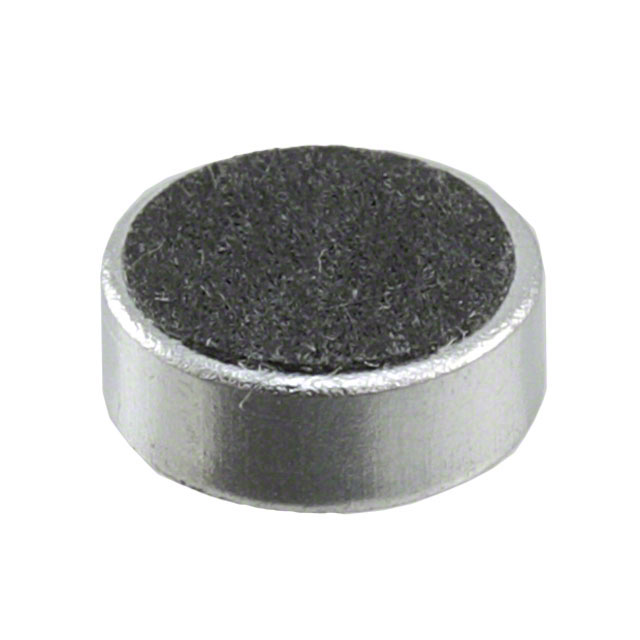

PUI Audio, Inc. POM-2245L-C33-R	Circular	Omnidirectional	2 V	10 V	500 µA	-45 dB	4 dB	Analog	Electret Condenser			Top	Solder Pads	2 VAC	0.236 in	2.2 kOhms	55 dB	0.106 in
PUI Audio, Inc. POM-5246L-R	Circular	Omnidirectional	2 V	10 V	500 µA	-46 dB	3 dB	Analog	Electret Condenser			Top	Solder Pads	2 VAC	0.236 in	2.2 kOhms	60 dB	0.213 in
PUI Audio, Inc. POM-2245L-C10-R	Circular	Omnidirectional	2 V	10 V	500 µA	-45 dB	4 dB	Analog	Electret Condenser			Top	Solder Pads	2 VAC	0.236 in	2.2 kOhms	55 dB	0.106 in
PUI Audio, Inc. POM-2244P-2-R	Circular	Omnidirectional	2 V	10 V	500 µA	-44 dB	3 dB	Analog	Electret Condenser	15 kHz	30 Hz	Top	PC Pins	2 VAC	0.236 in	2.2 kOhms	60 dB	0.094 in
