MMCX Series

Catalog

RF / COAXIAL CONNECTOR, MMCX COAXIAL, RIGHT ANGLE PLUG, SOLDER, 50 OHM, RG174, RG188, RG316, BRASS

Part	Fastening Type	Frequency - Max	Impedance	Contact Termination	Connector Type	Center Contact Material	Cable Group	Housing Color	Connector Style	Mounting Type	Shield Termination	Number of Ports	Operating Temperature (Min)	Operating Temperature (Max)	Includes Total Count	Includes	Body Material	Dielectric Material	Body Finish	Mating Cycles	Center Contact Plating	Cable Group Diameter (Default)	Cable Group Diameter (Semi Rigid)	2nd Contact Gender	1st Connector Mounting Type	Cable Type	Overall Impedance	1st Connector	Features	2nd Connector Mounting Type	2nd Connector	1st Contact Gender	Cable Impedance	Color	Length	Style	Length (ft)
McGill Microwave Systems 908-43300	Snap-On	6000 MHz	50 Ohm	Solder	Male Pin Plug	Brass	188 188A 316 LMR-100 M17/119-RG174 RG-174	Gold	MMCX	Free Hanging (In-Line) Right Angle	Crimp	1	-65 °C	165 °C	3 pcs	Connector End Cap Ferrule	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Gold
McGill Microwave Systems 908-41400	Snap-On	6000 MHz	50 Ohm	Solder	Male Pin Plug	Brass	RG-405	Gold	MMCX	Free Hanging (In-Line)	Solder	1	-65 °C	165 °C	2 pcs	Connector Contact	Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Gold	0.085 in	0.086 in
McGill Microwave Systems 265101-08-24.00																								Male	Free Hanging (In-Line)	178 RG	50 Ohms	MMCX Plug	Shielded	Free Hanging (In-Line)	MMCX Plug	Male	50 Ohms	Copper	24 in	MMCX
McGill Microwave Systems 265101-08-84.00																								Male	Free Hanging (In-Line)	178 RG	50 Ohms	MMCX Plug	Shielded	Free Hanging (In-Line)	MMCX Plug	Male	50 Ohms	Copper	84 in	MMCX	7 ft
McGill Microwave Systems 908-21102T	Snap-On	6000 MHz	50 Ohm	Solder	Male Pin Plug	Brass		Gold	MMCX	Board Edge Cutout Surface Mount	Solder	1
McGill Microwave Systems 265103-01-36.00																								Male	Free Hanging (In-Line)	316 RG	50 Ohms	MMCX Plug	Shielded	Free Hanging (In-Line)	MMCX Plug Right Angle	Male	50 Ohms	Copper	36 in	MMCX
McGill Microwave Systems 908-22100	Snap-On	6000 MHz	50 Ohm	Solder	Female Socket Jack	Beryllium Copper		Gold	MMCX	Board Edge Cutout Surface Mount	Solder	1	-65 °C	165 °C			Brass	Polytetrafluoroethylene (PTFE)	Gold	500 cycles	Gold

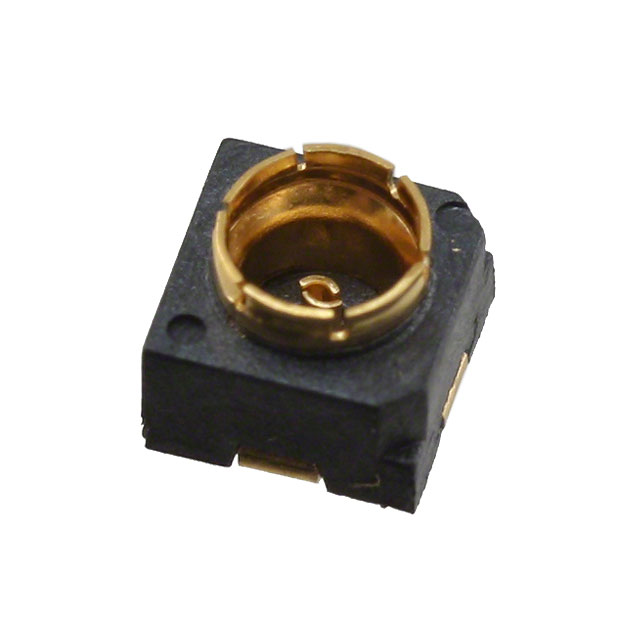

McGill Microwave Systems 908-22101B	Snap-On	6000 MHz	50 Ohm	Solder	Female Socket Jack	Beryllium Copper		Black	MMCX	Surface Mount	Solder	1					Beryllium Copper	Liquid Crystal Polymer (LCP)	Gold	500 cycles	Gold
McGill Microwave Systems 265103-08-06.00																								Male	Free Hanging (In-Line)	178 RG	50 Ohms	MMCX Plug	Shielded	Free Hanging (In-Line)	MMCX Plug Right Angle	Male	50 Ohms	Copper	0.5 ft	MMCX
