ELFH032 Series

Catalog

.200"/5.08MM VERT HDR CLOSED END

Part	Voltage - UL	Positions Per Level	Housing Material	Pitch	Material Flammability Rating	Contact Mating Finish	Type	Contact Tail Length	Termination Style	Contact Material	Insulation Height	Color	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Current - UL	Mounting Type	Header Orientation	Number of Levels	Header Orientation Angle	Features
McGill Microwave Systems ELFH0328GE
McGill Microwave Systems ELFH03290	300 V	3	Nylon 4/6 PA46 Polyamide	5.08 mm	UL94 V-0	Tin	Header Male Pins Shrouded (2 Side)	0.155 in	Solder	Brass	0.475 in	Black	3	-40 °C	105 °C	15 A	Through Hole	Vertical	1
McGill Microwave Systems ELFH03220	300 V	3	PBT Polybutylene Terephthalate	5.08 mm	UL94 V-0	Tin	Header Male Pins Shrouded (2 Side)	0.155 in	Solder	Brass	0.319 in	Black	3	-40 °C	105 °C	15 A	Through Hole	Right Angle	1	90 °
McGill Microwave Systems ELFH0322G
McGill Microwave Systems ELFH0322G

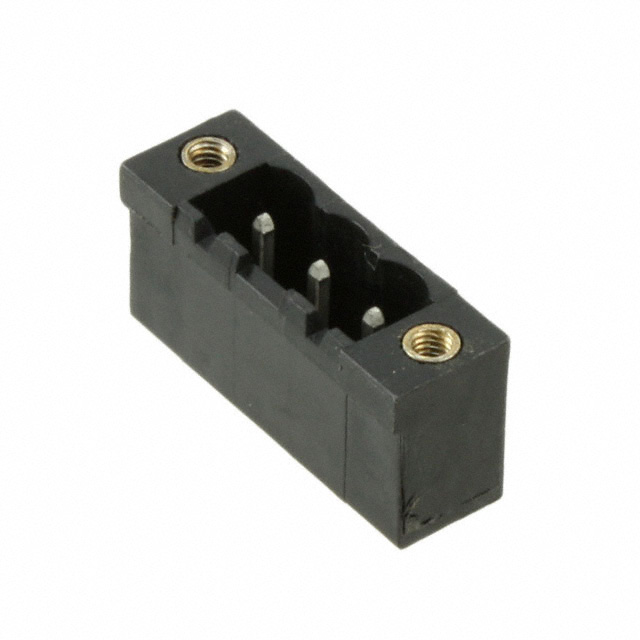

McGill Microwave Systems ELFH03250E	300 V	3	PBT Polybutylene Terephthalate	5.08 mm	UL94 V-0	Tin	Header Male Pins Shrouded (4 Side)		Solder	Brass	0.319 in	Black	3	-40 °C	105 °C	15 A	Through Hole	Vertical	1		Mating Flange
McGill Microwave Systems ELFH0326G
McGill Microwave Systems ELFH03260	300 V	3		5.08 mm		Tin	Header Male Pins Shrouded (2 Side)		Solder			Black	3	-40 °C	105 °C	15 A	Through Hole	Vertical	1
McGill Microwave Systems ELFH03220	300 V	3		5.08 mm		Tin	Header Male Pins Shrouded (2 Side)		Solder			Black	3	-40 °C	105 °C	15 A	Through Hole	Right Angle	1	90 °
McGill Microwave Systems ELFH03250E	300 V	3		5.08 mm		Tin	Header Male Pins Shrouded (4 Side)		Solder			Black	3	-40 °C	105 °C	15 A	Through Hole	Vertical	1		Mating Flange
