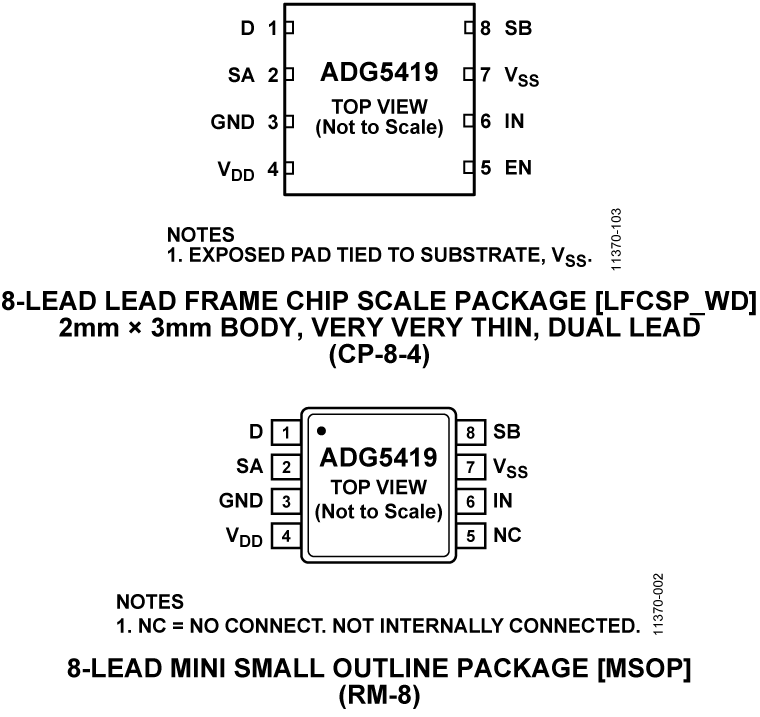

ADG5419 Series

Catalog

HIGH VOLTAGE LATCH-UP PROOF, SINGLE SPDT SWITCH

Part	Crosstalk	Mounting Type	-3db Bandwidth	Number of Circuits	Operating Temperature (Max)	Operating Temperature (Min)	Multiplexer Inputs	Demultiplexer Outputs	Package Name	Current - Leakage (Max)	Package Width	Package Length	Charge Injection	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Switch Circuit Type	Voltage - Supply, Dual (Nominal)	Voltage - Supply, Dual (Minimum)	Voltage - Supply, Dual (Maximum)	On-State Resistance (Max)	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Switch Time Ton (Max)	Switch Time Toff (Max)	Channel-to-Channel Matching (ΔRon)	Package / Case
Analog Devices Inc./Maxim Integrated ADG5419BRMZ	-80 dB	Surface Mount	190 MHz	1	125 °C	-40 °C	2	1	8-MSOP 8-TSSOP 8-MSOP	250 pA	3 mm	0.118 in	160 pC	40 V	9 V	SPDT	9 V	-9 V	22 V	14 Ohms	11 pF	22 pF	239 ns	185 ns	100 mOhm
Analog Devices Inc./Maxim Integrated ADG5419BRMZ-RL7	-80 dB	Surface Mount	190 MHz	1	125 °C	-40 °C	2	1	8-MSOP 8-TSSOP 8-MSOP	250 pA	3 mm	0.118 in	160 pC	40 V	9 V	SPDT	9 V	-9 V	22 V	14 Ohms	11 pF	22 pF	239 ns	185 ns	100 mOhm
Analog Devices Inc./Maxim Integrated ADG5419BCPZ-RL7	-80 dB	Surface Mount	190 MHz	1	125 °C	-40 °C	2	1	8-LFCSP-WD	250 pA	3 mm	2 mm	160 pC	40 V	9 V	SPDT	9 V	-9 V	22 V	14 Ohms	11 pF	22 pF	239 ns	185 ns	100 mOhm	8-WFDFN Exposed Pad CSP
