122A108 Series

Catalog

CONN DIN RCPT 48POS PCB RA GOLD

Part	Material Flammability Rating	Material - Insulation	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Connector Type	Pitch	Number of Rows	Style	Number of Positions	Number of Positions Loaded	Contact Finish	Level, Class	Termination	Number of Positions Loaded	Contact Finish Thickness
McGill Microwave Systems 122A10889X	UL94 V-0	Glass Filled PBT Polybutylene Terephthalate	2 A	125 °C	-55 °C	Right Angle Through Hole	Female Sockets Receptacle	0.1 in	3	R/2 (1/2 R)	48	All	Gold	3	Solder

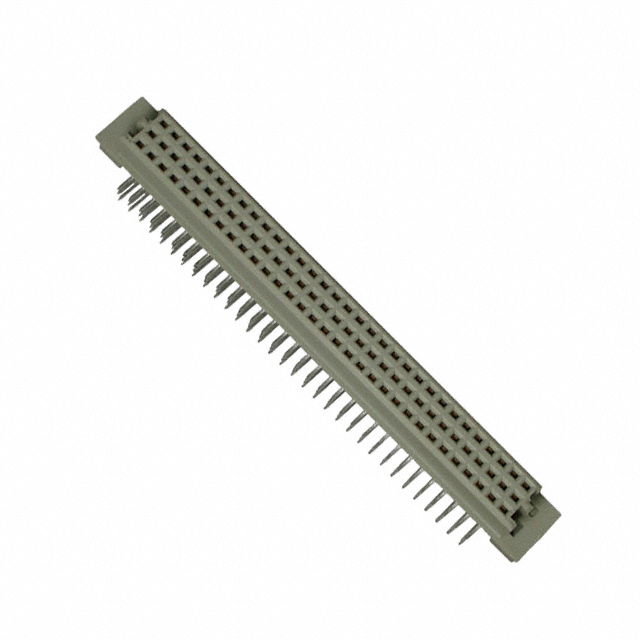

McGill Microwave Systems 122A10859X	UL94 V-0	PBT Polybutylene Terephthalate Polyester		125 °C	-55 °C	Right Angle Through Hole	Female Sockets Receptacle	0.1 in	3	R	96	All	Gold	3	Solder
McGill Microwave Systems 122A10809X	UL94 V-0	Glass Filled PBT Polybutylene Terephthalate	2 A	125 °C	-55 °C	Right Angle Through Hole	Female Sockets Receptacle	0.1 in	3	C/2 (1/2 C)	48		Gold	3	Solder	32
McGill Microwave Systems 122A10849X	UL94 V-0	Glass Filled PBT Polybutylene Terephthalate		125 °C	-55 °C	Right Angle Through Hole	Female Sockets Receptacle	0.1 in	3	R	96		Gold	3	Solder	64	8 µin
McGill Microwave Systems 122A10839X	UL94 V-0	Glass Filled PBT Polybutylene Terephthalate	2 A	125 °C	-55 °C	Right Angle Through Hole	Female Sockets Receptacle	0.1 in	3	R	96		Gold	3	Solder	32
McGill Microwave Systems 122A10879X	UL94 V-0	Glass Filled PBT Polybutylene Terephthalate	2 A	125 °C	-55 °C	Right Angle Through Hole	Female Sockets Receptacle	0.1 in	3	R/2 (1/2 R)	48		Gold	3	Solder	32
McGill Microwave Systems 122A10819X	UL94 V-0	Glass Filled PBT Polybutylene Terephthalate	2 A	125 °C	-55 °C	Right Angle Through Hole	Female Sockets Receptacle	0.1 in	3	C/2 (1/2 C)	48		Gold	3	Solder	48
