AD9253 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

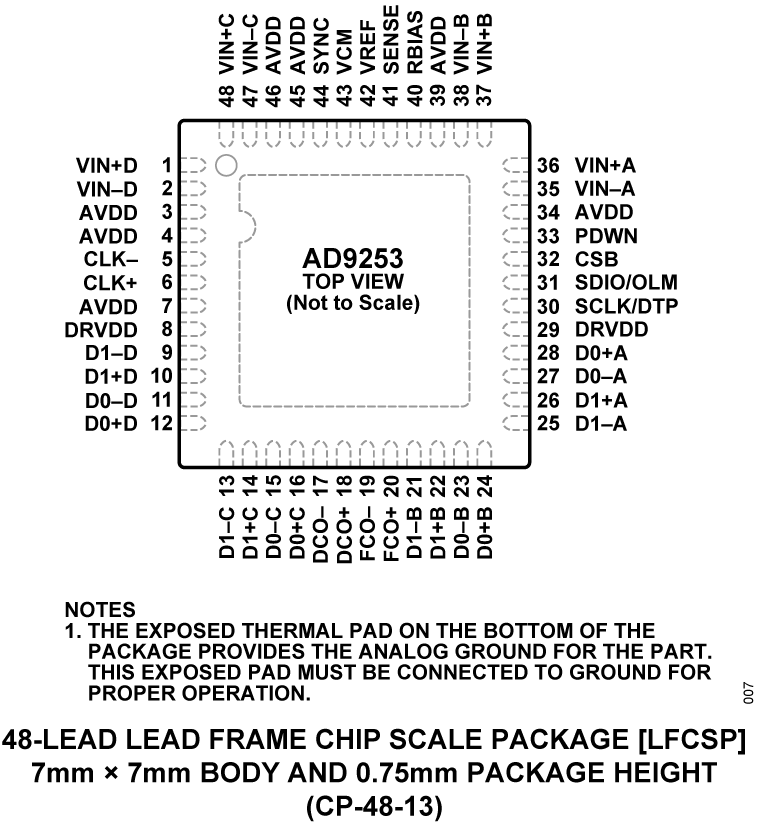

QUAD, 14-BIT, 80 MSPS/105 MSPS/125 MSPS SERIAL LVDS 1.8 V ANALOG-TO-DIGITAL CONVERTER

Part	Data Interface	Voltage - Supply, Analog (Max)	Voltage - Supply, Analog (Min)	Reference Type	Input Type	Operating Temperature (Max)	Operating Temperature (Min)	Package Width	Package Name	Package Length	Number of Inputs	Features	Configuration	Number of A/D Converters	Sampling Rate (Per Second)	Mounting Type	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Ratio - ADC	Ratio - S/H	Architecture	Number of Bits	Package / Case	Supplied Contents	Input Voltage (Value)	Power (Typ)	Utilized IC / Part	Contents
Analog Devices Inc./Maxim Integrated AD9253TCPZR7-125EP	LVDS - Serial	1.9 V	1.7 V	Internal	Differential	125 °C	-55 °C	7 mm	48-LFCSP	7 mm	4	Simultaneous Sampling	S/H-ADC	4 count	125 MHz	Surface Mount	1.7 V	1.9 V	1	1	Pipelined	14 bits	48-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9253BCPZRL7-125	LVDS - Serial	1.9 V	1.7 V	Internal	Differential	85 °C	-40 °C	7 mm	48-LFCSP	7 mm	4	Simultaneous Sampling	S/H-ADC	4 count	125 MHz	Surface Mount	1.7 V	1.9 V	1	1	Pipelined	14 bits	48-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9253BCPZ-80	LVDS - Serial	1.9 V	1.7 V	Internal	Differential	85 °C	-40 °C	7 mm	48-LFCSP	7 mm	4	Simultaneous Sampling	S/H-ADC	4 count	80 MHz	Surface Mount	1.7 V	1.9 V	1	1	Pipelined	14 bits	48-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9253BCPZRL7-105	LVDS - Serial	1.9 V	1.7 V	Internal	Differential	85 °C	-40 °C	7 mm	48-LFCSP	7 mm	4	Simultaneous Sampling	S/H-ADC	4 count	105 MHz	Surface Mount	1.7 V	1.9 V	1	1	Pipelined	14 bits	48-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9253BCPZ-105	LVDS - Serial	1.9 V	1.7 V	Internal	Differential	85 °C	-40 °C	7 mm	48-LFCSP	7 mm	4	Simultaneous Sampling	S/H-ADC	4 count	105 MHz	Surface Mount	1.7 V	1.9 V	1	1	Pipelined	14 bits	48-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9253TCPZ-125EP	LVDS - Serial	1.9 V	1.7 V	Internal	Differential	125 °C	-55 °C	7 mm	48-LFCSP	7 mm	4	Simultaneous Sampling	S/H-ADC	4 count	125 MHz	Surface Mount	1.7 V	1.9 V	1	1	Pipelined	14 bits	48-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9253BCPZ-125	LVDS - Serial	1.9 V	1.7 V	Internal	Differential	85 °C	-40 °C	7 mm	48-LFCSP	7 mm	4	Simultaneous Sampling	S/H-ADC	4 count	125 MHz	Surface Mount	1.7 V	1.9 V	1	1	Pipelined	14 bits	48-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9253BCPZRL7-80	LVDS - Serial	1.9 V	1.7 V	Internal	Differential	85 °C	-40 °C	7 mm	48-LFCSP	7 mm	4	Simultaneous Sampling	S/H-ADC	4 count	80 MHz	Surface Mount	1.7 V	1.9 V	1	1	Pipelined	14 bits	48-WFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated AD9253-125EBZ	LVDS Serial SPI													4 count	125 MHz							14 bits		Board(s)	2 Vpp	110 mW	AD9253	Board
