Q-0303M0 Series

Catalog

CBL ASSY BNC-SMB JACK-JACK 7'

Part	Overall Impedance	Color	2nd Connector Mounting Feature	Length (ft)	Length	Features	Style	Cable Type	1st Connector Mounting Type	2nd Connector Mounting Type	Frequency - Max	2nd Connector	1st Connector	2nd Contact Gender	1st Contact Gender
McGill Microwave Systems Q-0303M0003084i	50 Ohms	Black	Bulkhead - Front Side Nut	7 ft	84 in	Shielded	BNC SMB	174 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female

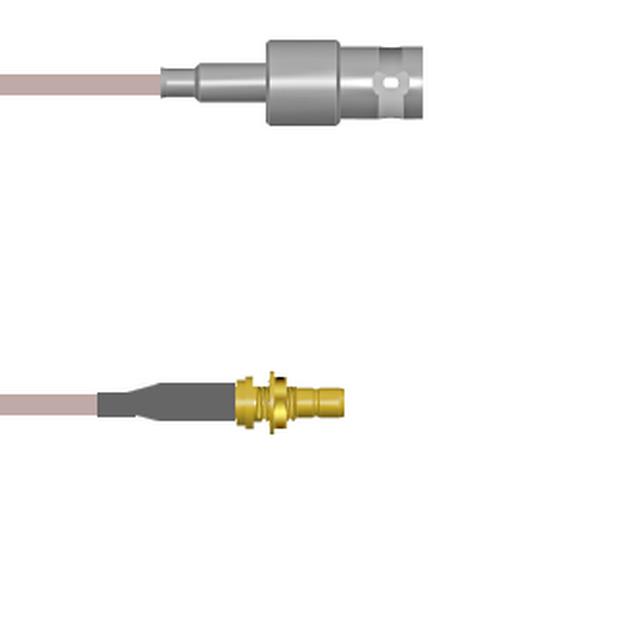

McGill Microwave Systems Q-0303M00051.5M	50 Ohms	Copper	Bulkhead - Front Side Nut	4.9 ft	59.1 in	Shielded	BNC SMB	316 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female

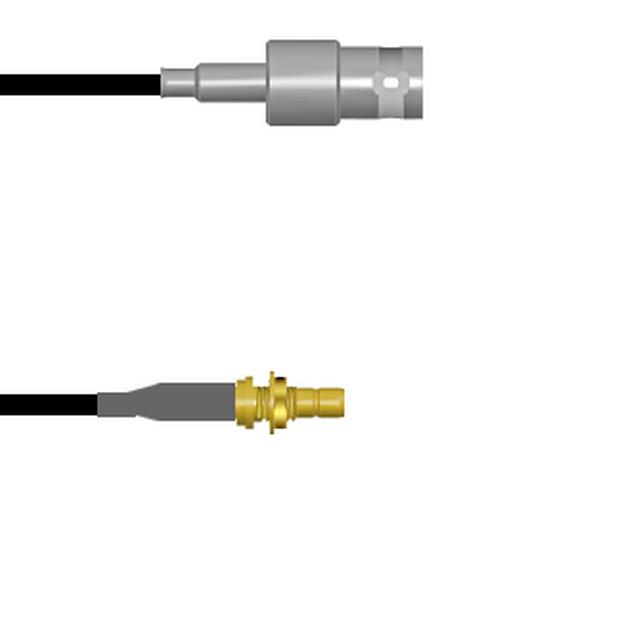

McGill Microwave Systems Q-0303M0003060i	50 Ohms	Black	Bulkhead - Front Side Nut	5 ft	1524 mm	Shielded	BNC SMB	174 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female
McGill Microwave Systems Q-0303M0003018i	50 Ohms	Black	Bulkhead - Front Side Nut		18 in	Shielded	BNC SMB	174 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female
McGill Microwave Systems Q-0303M0003001M	50 Ohms	Black	Bulkhead - Front Side Nut		39.4 in	Shielded	BNC SMB	174 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female
McGill Microwave Systems Q-0303M0003036i	50 Ohms	Black	Bulkhead - Front Side Nut		36 in	Shielded	BNC SMB	174 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female
McGill Microwave Systems Q-0303M00032.5M	50 Ohms	Black	Bulkhead - Front Side Nut	8.2 ft	98.4 in	Shielded	BNC SMB	174 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female
McGill Microwave Systems Q-0303M00031.5M	50 Ohms	Black	Bulkhead - Front Side Nut	4.9 ft	59.1 in	Shielded	BNC SMB	174 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female
McGill Microwave Systems Q-0303M0005072i	50 Ohms	Copper	Bulkhead - Front Side Nut		72 in	Shielded	BNC SMB	316 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female
McGill Microwave Systems Q-0303M0003003i	50 Ohms	Black	Bulkhead - Front Side Nut		3 "	Shielded	BNC SMB	174 RG	Free Hanging (In-Line)	Panel Mount	4 GHz	SMB Jack	BNC Jack	Female	Female
