KP1830 Series

Catalog

CAP, 2200PF, 630V, FILM, RADIAL ROHS COMPLIANT: YES

Part	Termination	Tolerance	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Height - Seated (Max)	Size / Dimension Length	Size / Dimension Width	Voltage Rating - AC	Lead Spacing	Capacitance	Voltage Rating - DC	Dielectric Material	Applications

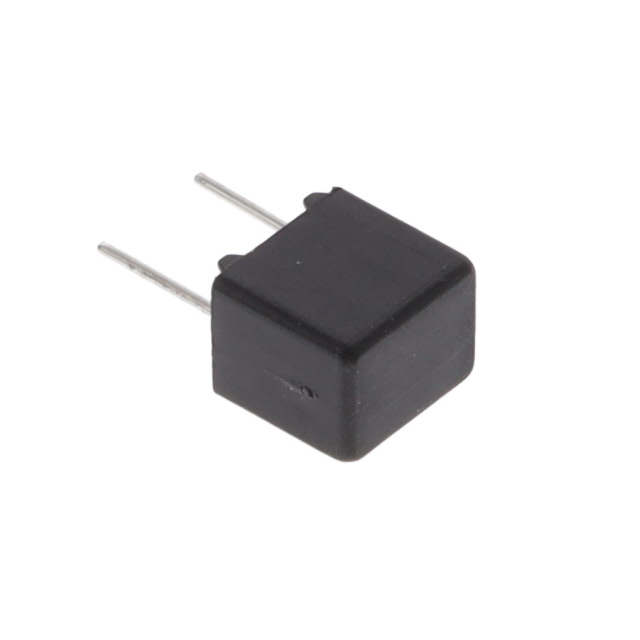

Vishay Dale KP1830222631	PC Pins	1 %	Through Hole	-55 °C	100 °C	Radial	0.276 in	0.283 in	0.217 in	250 V	0.197 in	2200 pF	630 V	Polypropylene (PP)	DV/DT High Frequency High Pulse Switching
Vishay Dale KP1830310063	PC Pins	2.5 %	Through Hole	-55 °C	100 °C	Radial	0.276 in	0.283 in	0.217 in	40 V	0.197 in	10000 pF	63 V	Polypropylene (PP)	DV/DT High Frequency High Pulse Switching
Vishay Dale KP1830210631	PC Pins	1 %	Through Hole	-55 °C	100 °C	Radial	0.236 in	0.283 in	0.177 in	250 V	0.197 in	1000 pF	630 V	Polypropylene (PP)	DV/DT High Frequency High Pulse Switching
Vishay Dale KP1830247063W	PC Pins	2.5 %	Through Hole	-55 °C	100 °C	Radial	0.236 in	0.283 in	0.177 in	40 V	0.197 in	4700 pF	63 V	Polypropylene (PP)	DV/DT High Frequency High Pulse Switching
