RT0W71832 Series

Catalog

CONN RCPT HSG FMALE 32POS PNL MT

Part	Contact Shape	Mounting Feature	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection Description	Ingress Protection IP Rating	Housing Color	Contact Type	Connector Type	Shell Finish	Orientation	Contact Size	Note	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Insert Material	Fastening Type	Mounting Type	Number of Positions	Shell Material	Material Flammability Rating	Type	Features	Includes Total Count	Includes	Current Rating	Color	Contact Finish - Mating	Voltage Rating	Voltage Rating (Type)	Termination	Primary Material	Contact Finish Thickness - Mating

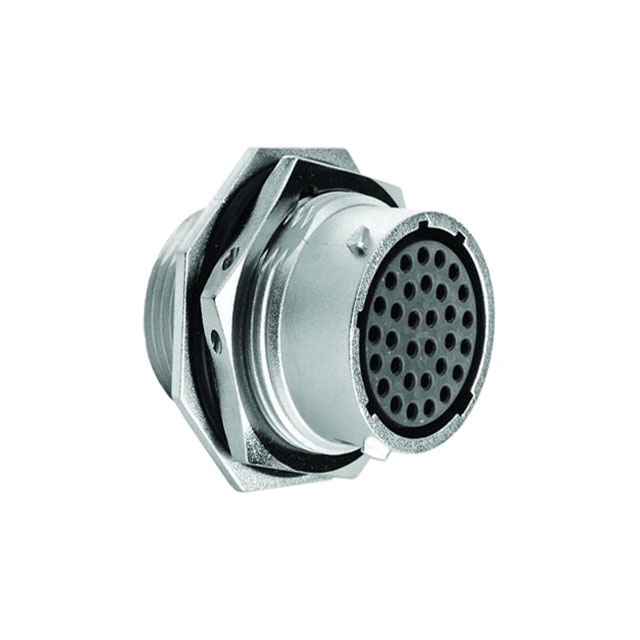

McGill Microwave Systems RT0W71832SNH	Circular	Bulkhead Front Side Nut	Shielded	-40 °C	105 °C	Dust Tight Waterproof	IP67	Silver	Crimp	Receptacle Housing	Nickel	N (Normal)	20	Contacts Not Included	32	18	Thermoplastic	Bayonet Lock	Panel Mount	32	Zinc Alloy	UL94 V-0	For Female Sockets
McGill Microwave Systems RT0W71832PNHEC	Circular	Bulkhead Front Side Nut	Shielded	-40 °C	105 °C	Dust Tight Waterproof	IP67	Silver	Crimp	Receptacle Housing	Nickel	N (Normal)	20	Contacts Not Included	32	18	Thermoplastic	Bayonet Lock	Panel Mount	32	Zinc Alloy	UL94 V-0	For Male Pins	Backshell	3 pcs	Connector Nut O-Ring
McGill Microwave Systems RT0W71832PNH-K		Bulkhead Front Side Nut		-40 °C	105 °C	Dust Tight Waterproof	IP67			Male Pins Receptacle	Nickel	N (Normal)			32	18		Bayonet Lock	Panel Mount	32	Zinc Die Cast						7.5 A	Silver	Gold	150 VDC	DC	Crimp	Metal	Flash
McGill Microwave Systems RT0W71832PNH03	Circular	Bulkhead Front Side Nut	Shielded	-40 °C	125 °C	Dust Tight Waterproof	IP67	Silver	Crimp	Receptacle Housing	Nickel	N (Normal)	20	Contacts Not Included	32	18	Thermoplastic	Bayonet Lock	Panel Mount	32	Zinc Alloy	UL94 V-0	For Male Pins		4 pcs	Connector Gasket Nut O-Ring
McGill Microwave Systems RT0W71832PNHEC03

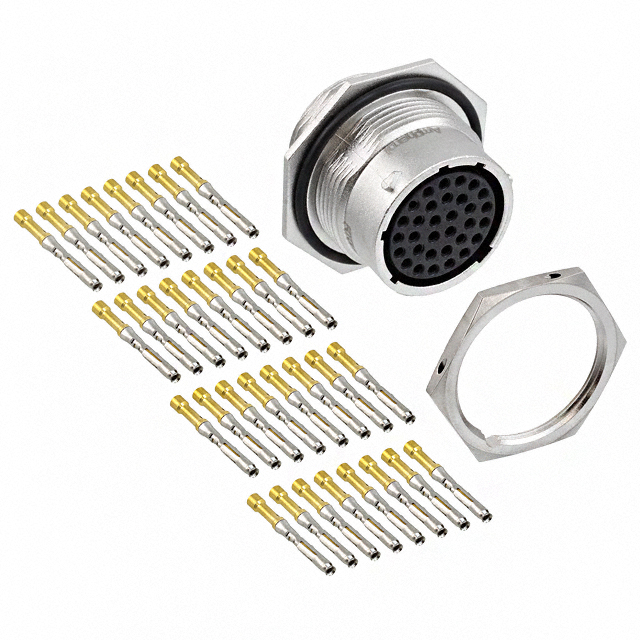

McGill Microwave Systems RT0W71832SNH-K		Bulkhead Front Side Nut		-40 °C	105 °C	Dust Tight Waterproof	IP67			Female Sockets Receptacle	Nickel	N (Normal)			32	18		Bayonet Lock	Panel Mount	32	Zinc Die Cast						7.5 A	Silver	Gold	150 VDC	DC	Crimp	Metal	Flash

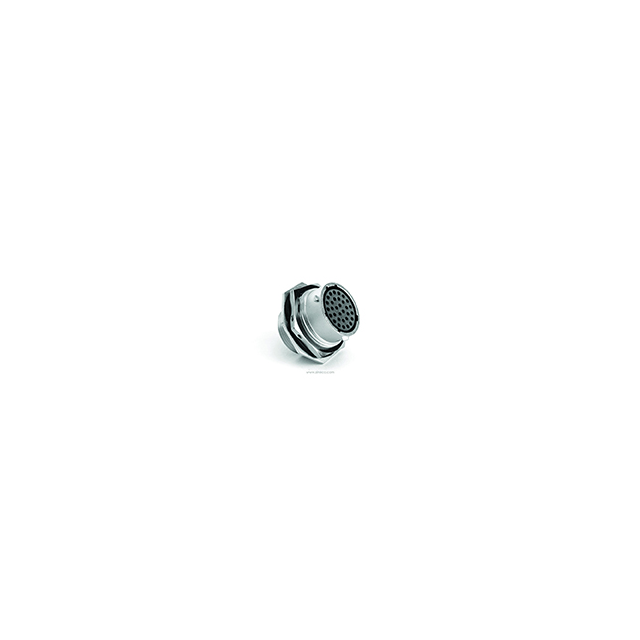

McGill Microwave Systems RT0W71832SNH03	Circular	Bulkhead Front Side Nut	Shielded	-40 °C	125 °C	Dust Tight Waterproof	IP67	Silver	Crimp	Receptacle Housing	Nickel	N (Normal)	20	Contacts Not Included	32	18	Thermoplastic	Bayonet Lock	Panel Mount	32	Zinc Alloy	UL94 V-0	For Female Sockets		4 pcs	Connector Gasket Nut O-Ring
