SFR25H Series

Catalog

METAL FILM RESISTORS - THROUGH HOLE SFR25H 1% A5 287K

...

Part	Number of Terminations	Composition	Package / Case	Package Name	Temperature Coefficient	Size / Dimension Length	Size / Dimension Diameter	Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Tolerance	Power (Watts)	Power (Watts) Options	Temperature Coefficient (Highest)	Temperature Coefficient (Lowest)
Vishay Dale SFR25H0002873FA500	2	Metal Film	Axial	Axial	100 ppm/°C	0.256 in	0.098 in	287 kOhm	155 °C	-55 °C	1 %	500 mW	1/2W
Vishay Dale SFR25H0001001FR500	2	Metal Film	Axial		100 ppm/°C	0.256 in	0.098 in	1 kOhm	155 °C	-55 °C	1 %	500 mW	1/2W

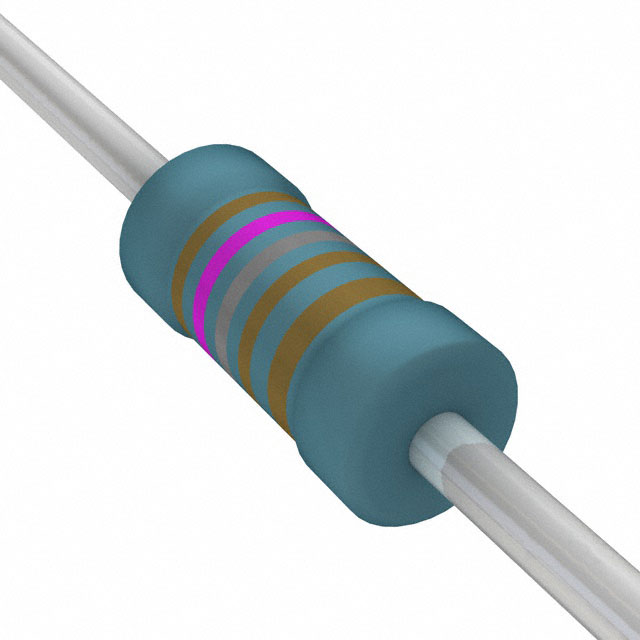

Vishay Dale SFR25H0001781FR500	2	Metal Film	Axial		100 ppm/°C	0.256 in	0.098 in	1.78 kOhm	155 °C	-55 °C	1 %	500 mW	1/2W
Vishay Dale SFR25H0002553FR500	2	Metal Film	Axial		100 ppm/°C	0.256 in	0.098 in	255 kOhm	155 °C	-55 °C	1 %	500 mW	1/2W
Vishay Dale SFR25H0005761FR500	2	Metal Film	Axial		100 ppm/°C	0.256 in	0.098 in	5.76 kOhm	155 °C	-55 °C	1 %	500 mW	1/2W
Vishay Dale SFR25H0006491FR500	2	Metal Film	Axial		100 ppm/°C	0.256 in	0.098 in	6.49 kOhm	155 °C	-55 °C	1 %	500 mW	1/2W
Vishay Dale SFR25H0003400FR500	2	Metal Film	Axial		100 ppm/°C	0.256 in	0.098 in	340 Ohm	155 °C	-55 °C	1 %	500 mW	1/2W

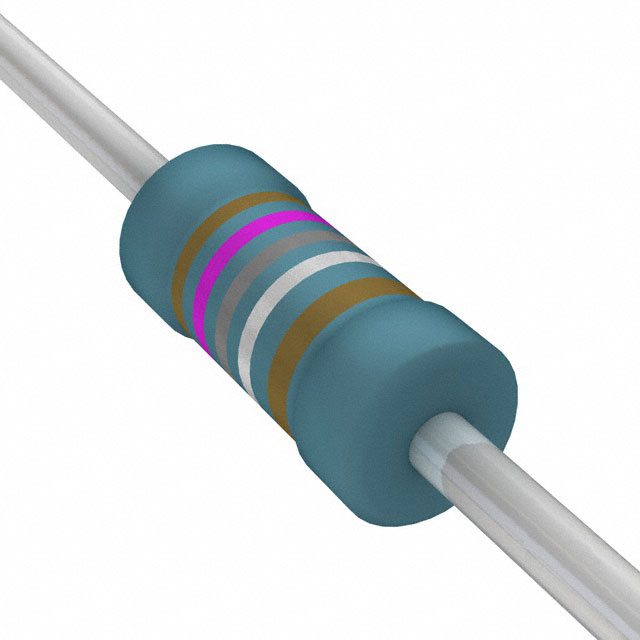

Vishay Dale SFR25H0001788FR500	2	Metal Film	Axial		250 ppm/°C	0.256 in	0.098 in	1.78 Ohms	155 °C	-55 °C	1 %	500 mW	1/2W	250 ppm/°C	-250 ppm/°C

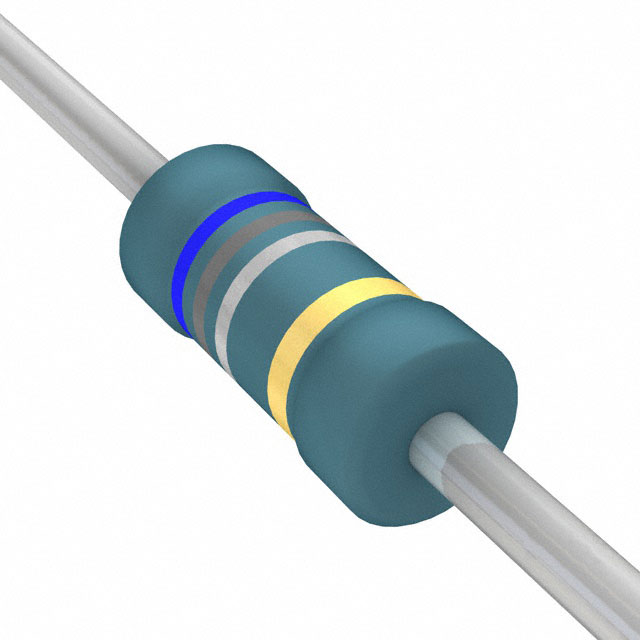

Vishay Dale SFR25H0006807JA500	2	Metal Film	Axial		250 ppm/°C	0.256 in	0.098 in	680 mOhms	155 °C	-55 °C	5 %	500 mW	1/2W	250 ppm/°C	-250 ppm/°C
Vishay Dale SFR25H0007501FA500	2	Metal Film	Axial	Axial	100 ppm/°C	0.256 in	0.098 in	7.5 kOhm	155 °C	-55 °C	1 %	500 mW	1/2W
