97-3100A18 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
RECEPT
| Part | Shielding | Mounting Type | Shell Size - Insert Width | Shell Size - Insert Length | Termination | Features | Contact Finish - Mating | Fastening Type | Orientation | Mounting Feature | Contact Material | Connector Type | Applications | Backshell Material | Plating | Operating Temperature (Max) | Operating Temperature (Min) | Shell Material | Insert Material | Shell Finish | Color | Primary Material | Number of Positions | Shell Size - Insert (Minimum) | Shell Size - Insert (Maximum) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Unshielded | Panel Mount | 11 mm | 18 mm | Solder Cup | Backshell | Silver | Threaded | N (Normal) | Flange | Copper Alloy | Male Pins Receptacle | Automotive Industrial | Aluminum Alloy | Olive Drab Chromate over Cadmium | 125 °C | -55 °C | Aluminum Alloy | DAP Diallyl Phthalate | Cadmium Olive Drab Chromate | Olive Drab | Metal | 5 | ||
Amphenol Aerospace Operations | Unshielded | Panel Mount | 1 mm | 18 mm | Solder Cup | Backshell | Silver | Threaded | N (Normal) | Flange | Copper Alloy | Male Pins Receptacle | Automotive Industrial | Aluminum Alloy | Olive Drab Chromate over Cadmium | 125 °C | -55 °C | Aluminum Alloy | DAP Diallyl Phthalate | Cadmium Olive Drab Chromate | Olive Drab | Metal | 10 | ||

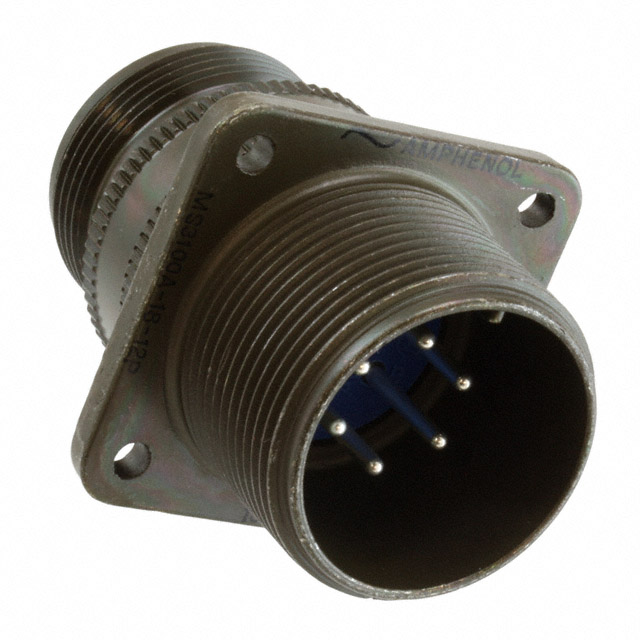

 Amphenol Aerospace Operations | Unshielded | Panel Mount | 12 mm | 18 mm | Solder Cup | Backshell | Silver | Threaded | N (Normal) | Flange | Copper Alloy | Male Pins Receptacle | Automotive Industrial | Aluminum Alloy | Olive Drab Chromate over Cadmium | 125 °C | -55 °C | Aluminum Alloy | DAP Diallyl Phthalate | Cadmium Olive Drab Chromate | Olive Drab | Metal | 6 | ||

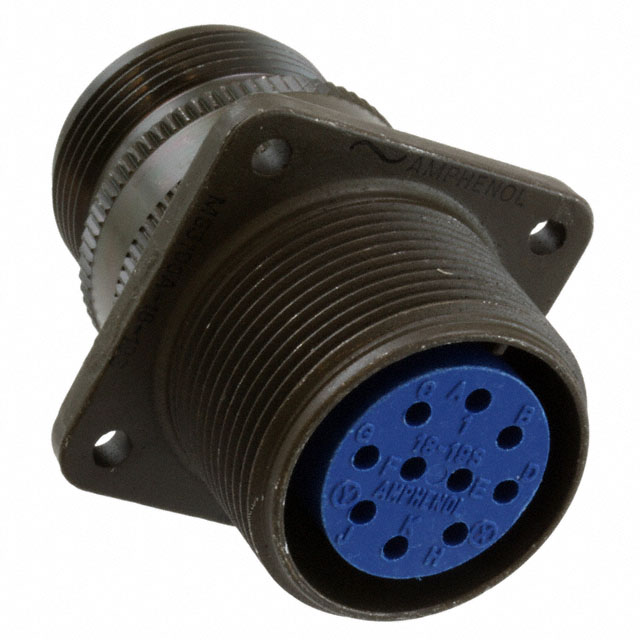

 Amphenol Aerospace Operations | Unshielded | Panel Mount | 1 mm | 18 mm | Solder Cup | Backshell | Silver | Threaded | N (Normal) | Flange | Copper Alloy | Female Sockets Receptacle | Automotive Industrial | Aluminum Alloy | Olive Drab Chromate over Cadmium | 125 °C | -55 °C | Aluminum Alloy | DAP Diallyl Phthalate | Cadmium Olive Drab Chromate | Olive Drab | Metal | 10 | ||
 Amphenol Aerospace Operations | Unshielded | Panel Mount | Solder Cup | Backshell | Silver | Threaded | N (Normal) | Flange | Copper Alloy | Female Sockets Receptacle | Automotive Industrial | Aluminum Alloy | Olive Drab Chromate over Cadmium | 125 °C | -55 °C | Aluminum Alloy | DAP Diallyl Phthalate | Cadmium Olive Drab Chromate | Olive Drab | Metal | 10 | 18 | 19 |
