AD8370 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K

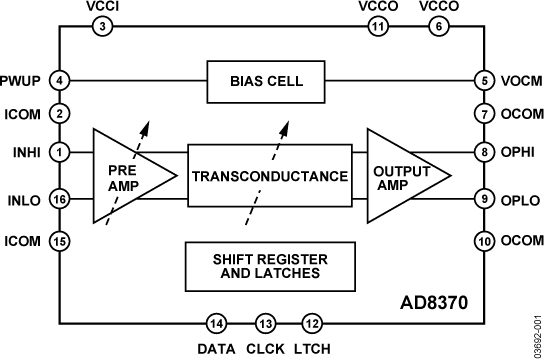

750 MHZDIGITALLY CONTROLLED VARIABLE GAIN AMPLIFIER
| Part | Mounting Type | Slew Rate | Voltage - Supply Span (Max) | Operating Temperature (Min) | Operating Temperature (Max) | Package Name | Amplifier Type | Package Width | Package Features | Package Length | Number of Circuits | Current - Input Bias | Voltage - Supply Span (Min) | Current - Supply | -3db Bandwidth | Output Type | Supplied Contents | Board Type | Current - Supply (Main IC) | Channels per IC (Single) | Channels per IC (Type) | Channels per IC (Count) | Supply Configuration | Voltage - Supply (Single) Minimum | Voltage - Supply (Single) Maximum | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Surface Mount | 5750 V/µs | 5.5 V | -40 °C | 85 °C | 16-TSSOP 16-TSSOP-EP | Variable Gain | 4.4 mm | Exposed Pad | 0.173 in | 1 | 400 pA | 3 V | 79 mA | 750 MHz | Differential | |||||||||||
 Analog Devices Inc./Maxim Integrated | 5750 V/µs | Variable Gain | 750 MHz | Differential | Board(s) | Fully Populated | 0.082 mA | 1 | Single | 1 | Dual Single | 3 V | 5.5 V | Board | AD8370 | ||||||||||||
Analog Devices Inc./Maxim Integrated | Surface Mount | 5750 V/µs | 5.5 V | -40 °C | 85 °C | 16-TSSOP 16-TSSOP-EP | Variable Gain | 4.4 mm | Exposed Pad | 0.173 in | 1 | 400 pA | 3 V | 79 mA | 750 MHz | Differential |
