AD9979 Series

14-Bit, CCD Signal Processor withPrecision Timing™ Core

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

14-Bit, CCD Signal Processor withPrecision Timing™ Core

Part	Type	Mounting Type	Package Width	Package Name	Package Length	Current - Supply	Output Type	Input Type	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)
Analog Devices Inc./Maxim Integrated AD9979BCPZ	14-Bit CCD Signal Processor	Surface Mount	7 mm	48-LFCSP-VQ	7 mm	48 mA	Logic	Logic	48-VFQFN Exposed Pad CSP	85 °C	-25 °C
Analog Devices Inc./Maxim Integrated AD9979BCPZRL	14-Bit CCD Signal Processor	Surface Mount	7 mm	48-LFCSP-VQ	7 mm	48 mA	Logic	Logic	48-VFQFN Exposed Pad CSP	85 °C	-25 °C

Catalog

14-Bit, CCD Signal Processor withPrecision Timing™ Core

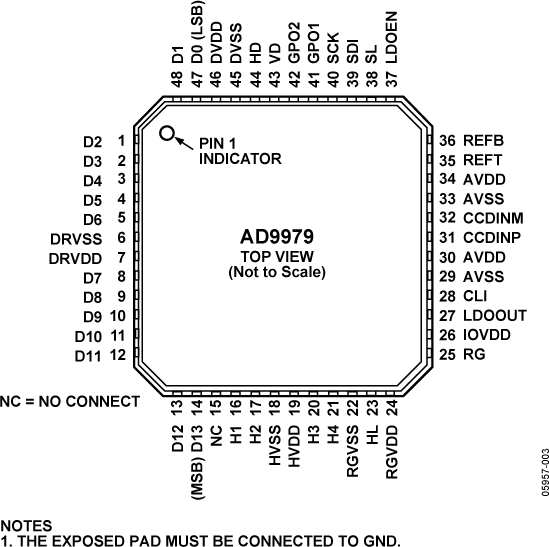

Description

The AD9979 is a highly integrated CCD signal processor for high speed digital video camera applications. Specified at pixel rates of up to 65 MHz, the AD9979 consists of a complete analog front end with analog-to-digital conversion, combined with a programmable timing driver. ThePrecision Timingcore allows adjustment of high speed clocks with approximately 240 ps resolution at 65 MHz operation.The analog front end includes black-level clamping, CDS, VGA, and a 65 MSPS, 14-bit analog-to-digital converter (ADC). The timing driver provides the high speed CCD clock drivers for RG, HL, and H1 to H4. Operation is programmed using a 3-wire serial interface.Available in a space-saving, 7 mm × 7 mm, 48-lead LFCSP, the AD9979 is specified over an operating temperature range of −25°C to +85°C.ApplicationsProfessional HDTV camcordersProfessional/high end digital camerasBroadcast camerasIndustrial high speed cameras
