102-909 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

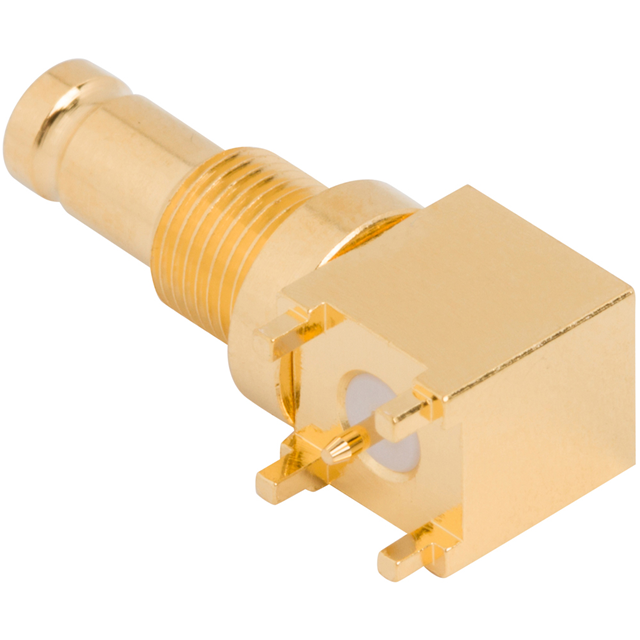

CONN 1.0/2.3 JACK R/A 50 OHM PCB
| Part | Connector Type | Number of Ports | Connector Style | Housing Color | Fastening Type | Frequency - Max | Mounting Type | Shield Termination | Mounting Feature | Center Contact Material | Impedance | Contact Termination | Body Material | Body Finish | Mating Cycles | Operating Temperature (Max) | Operating Temperature (Min) | Dielectric Material | Voltage Rating | Center Contact Plating | Includes Total Count | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Female Socket Jack | 1 | 1.0/2.3 | Gold | Push-Pull | 10 GHz | Panel Mount Right Angle Through Hole | Solder | Bulkhead Front Side Nut | Beryllium Copper | 50 Ohm | Solder | Brass | Gold | 500 cycles | 155 °C | -40 °C | Polytetrafluoroethylene (PTFE) | 250 V | Gold | 2 pcs | Connector Nut |
 McGill Microwave Systems | Female Socket Jack | 1 | 1.0/2.3 | Gold | Snap-On | 10 GHz | Panel Mount Right Angle Through Hole | Solder | Bulkhead Front Side Nut | Brass | 50 Ohm | Solder | Brass | Gold | 500 cycles | 155 °C | -40 °C | Polytetrafluoroethylene (PTFE) | Gold |
