NE85630 Series

Catalog

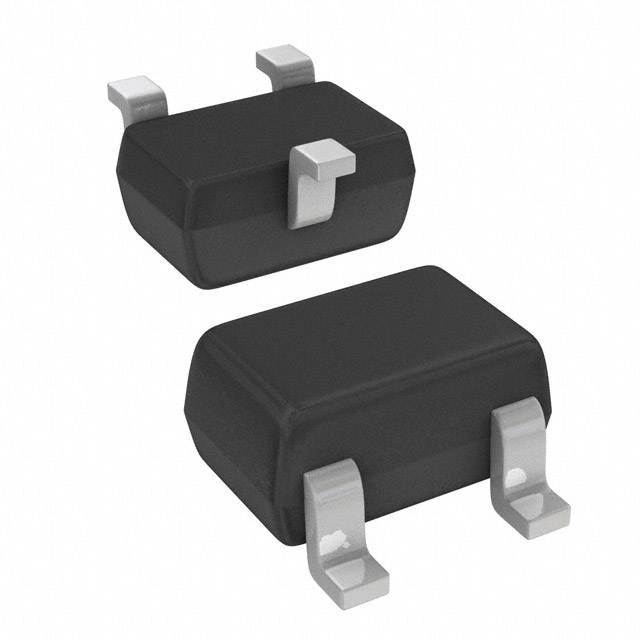

RF TRANS NPN 12V 4.5GHZ SOT323

Part	Transistor Type	Mounting Type	Gain	Package Name	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature	Current - Collector (Ic) (Max)	Package / Case	DC Current Gain (hFE) (Min)	Noise Figure (Typical)	Frequency - Transition	Power - Max	Gain (Max)	Gain (Min)	Noise Figure (Typical) Maximum	Noise Figure (Typical) Minimum
Renesas Electronics Corporation NE85630-T1-A	NPN	Surface Mount	9 dB	SOT-323	12 V	150 °C	0.1 mA	SC-70 SOT-323	40	1.2 dB	4.5 GHz	150 mW
Renesas Electronics Corporation NE85630-T1-R25-A	NPN	Surface Mount	9 dB	SOT-323	12 V	150 °C	0.1 mA	SC-70 SOT-323	125	1.2 dB	4.5 GHz	150 mW
Renesas Electronics Corporation NE85630-R25-A	NPN	Surface Mount	9 dB	SOT-323	12 V	150 °C	0.1 mA	SC-70 SOT-323	125	1.2 dB	4.5 GHz	150 mW
Renesas Electronics Corporation NE85630-T1	NPN	Surface Mount		SOT-323	12 V	150 °C	0.1 mA	SC-70 SOT-323	40		4.5 GHz	150 mW	12 dB	6 dB	2.2 dB	1.3 dB
Renesas Electronics Corporation NE85630-T1-R24-A	NPN	Surface Mount	9 dB	SOT-323	12 V	150 °C	0.1 mA	SC-70 SOT-323	70	1.2 dB	4.5 GHz	150 mW
Renesas Electronics Corporation NE85630-R24-A	NPN	Surface Mount	9 dB	SOT-323	12 V	150 °C	0.1 mA	SC-70 SOT-323	70	1.2 dB	4.5 GHz	150 mW
Renesas Electronics Corporation NE85630-A	NPN	Surface Mount	9 dB	SOT-323	12 V	150 °C	0.1 mA	SC-70 SOT-323	40	1.2 dB	4.5 GHz	150 mW
