BIS14PL Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN FMALE INSERT 19P SOLDER CUP

Part	Ingress Protection	Features	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Insert Material	Termination	Shielding	Current Rating (Per Contact)	Connector Type	Contact Material	Orientation	Contact Finish - Mating	Number of Positions	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Shell Size - Insert Width	Shell Size - Insert Length	Current Rating Options
Amphenol Aerospace Operations BIS14PLN1920F	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded	7 A	Female Sockets Insert	Copper Alloy	Keyed	Gold	19	19	14 S

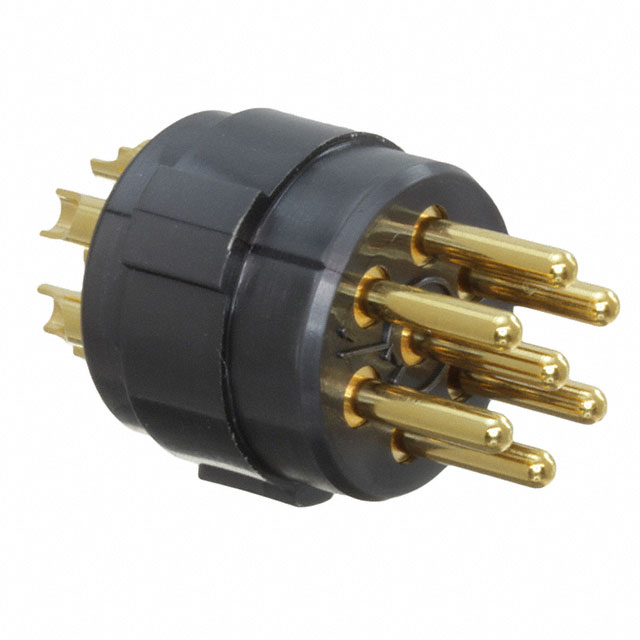

Amphenol Aerospace Operations BIS14PLN0714M	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded	20 A	Insert Male Pins	Copper Alloy	Keyed	Gold	7			7 mm	14 mm
Amphenol Aerospace Operations BIS14PLN0412F	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded	26 A	Female Sockets Insert	Copper Alloy	Keyed	Gold	4			4 mm	14 mm

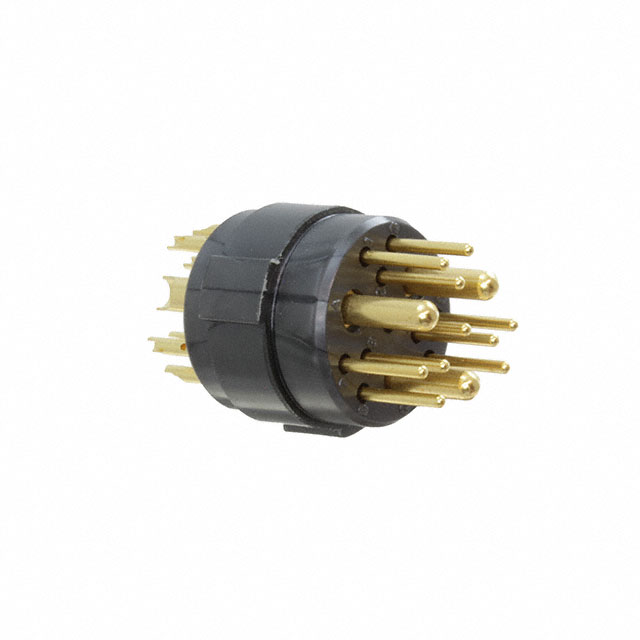

Amphenol Aerospace Operations BIS14PLN03121020M	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded		Insert Male Pins	Copper Alloy	Keyed	Gold	13			13 mm	14 mm	26A 7A
Amphenol Aerospace Operations BIS14PLN1216M	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded	14 A	Insert Male Pins	Copper Alloy	Keyed	Gold	12			12 mm	14 mm
Amphenol Aerospace Operations BIS14PLN0412M	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded	26 A	Insert Male Pins	Copper Alloy	Keyed	Gold	4			4 mm	14 mm
Amphenol Aerospace Operations BIS14PLN1216F	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded	14 A	Female Sockets Insert	Copper Alloy	Keyed	Gold	12			12 mm	14 mm

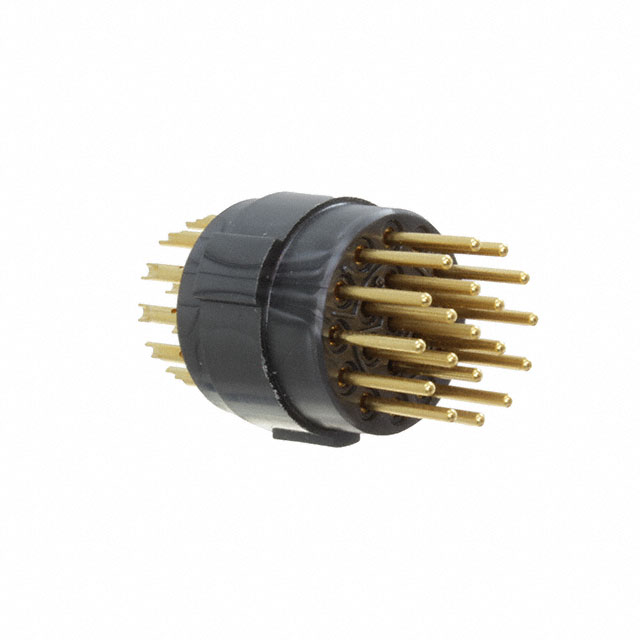

Amphenol Aerospace Operations BIS14PLN1920M	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded	7 A	Insert Male Pins	Copper Alloy	Keyed	Gold	19	19	14 S

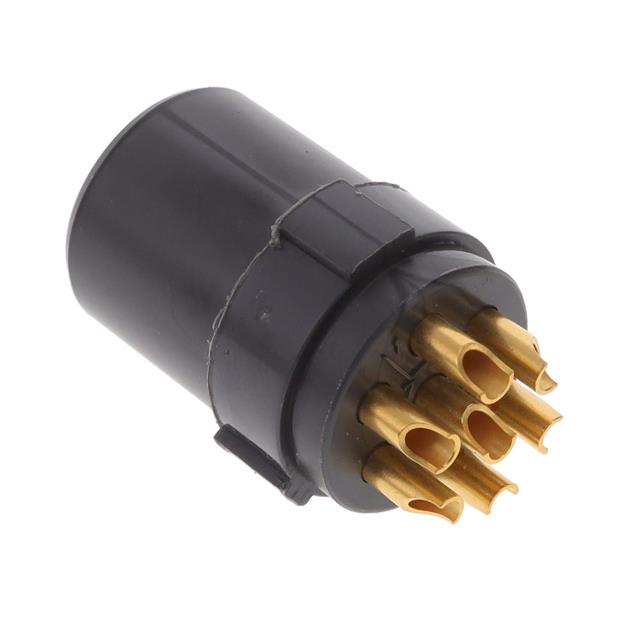

Amphenol Aerospace Operations BIS14PLN0714F	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded	20 A	Female Sockets Insert	Copper Alloy	Keyed	Gold	7			7 mm	14 mm
Amphenol Aerospace Operations BIS14PLN03121020F	Water Resistant	Insert Only Requires Shell	70 °C	-20 °C	Marine	Molybdenum Disulfide MoS2 Nylon 6/6 PA66 Polyamide	Solder Cup	Unshielded		Female Sockets Insert	Copper Alloy	Keyed	Gold	13			13 mm	14 mm	26A 7A
