RT07147 Series

Catalog

RECEPTACLE KIT, JAM NUT, 7 POSIT

Part	Applications	Shell Material	Shielding	Color	Material Flammability Rating	Number of Positions	Mounting Feature	Shell Finish	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Ingress Protection Description	Ingress Protection IP Rating	Connector Type	Termination	Shell Size - Insert Width	Shell Size - Insert Length	Orientation	Voltage Rating	Voltage Rating (Type)	Fastening Type	Mounting Type	Current Rating	Contact Finish - Mating	Contact Type	Contact Shape	Note	Includes Total Count	Includes	Contact Size	Type	Features	Housing Color

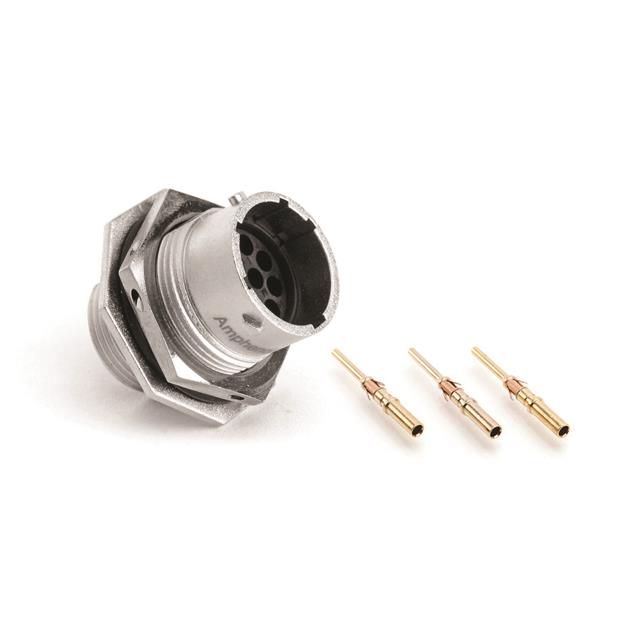

McGill Microwave Systems RT07147PNH-K	Aerospace Automation Industrial Telecom Transportation	Zinc Alloy	Shielded	Silver	UL94 V-0	7	Bulkhead Front Side Nut	Nickel	-40 °C	105 °C	Thermoplastic	Dust Tight Waterproof	IP67	Male Pins Receptacle	Crimp	7 mm	14 mm	N (Normal)	500 V	DC	Bayonet Lock	Panel Mount	13 A	Gold
McGill Microwave Systems RT07147PNHEC03R		Zinc Alloy	Shielded		UL94 V-0	7	Bulkhead Front Side Nut	Nickel	-40 °C	125 °C	Thermoplastic	Dust Tight Waterproof	IP67	Receptacle Housing		7 mm	14 mm	N (Normal)			Bayonet Lock	Panel Mount			Crimp	Circular	Contacts Not Included	3 pcs	Connector Nut O-Ring	16 S	For Male Pins	Backshell	Silver

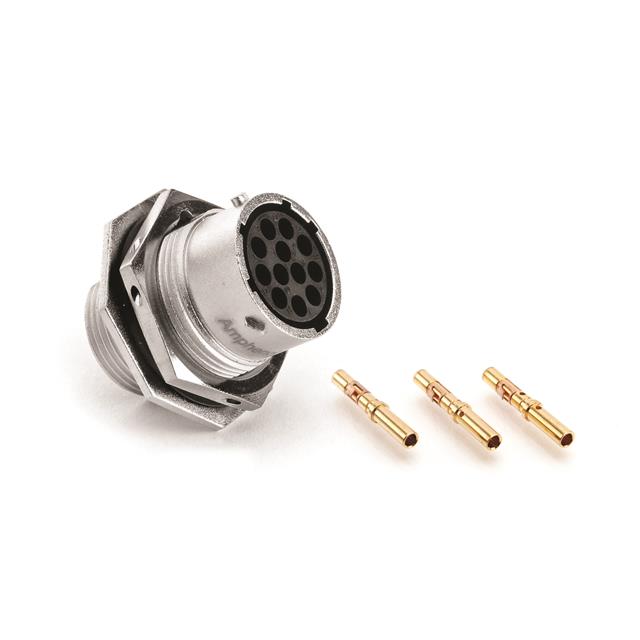

McGill Microwave Systems RT07147SNH-K	Aerospace Automation Industrial Telecom Transportation	Zinc Alloy	Shielded	Silver	UL94 V-0	7	Bulkhead Front Side Nut	Nickel	-40 °C	105 °C	Thermoplastic	Dust Tight Waterproof	IP67	Female Sockets Receptacle	Crimp	7 mm	14 mm	N (Normal)	500 V	DC	Bayonet Lock	Panel Mount	13 A	Gold
McGill Microwave Systems RT07147SNH		Zinc Alloy	Shielded		UL94 V-0	7	Bulkhead Front Side Nut	Nickel	-40 °C	105 °C	Thermoplastic	Dust Tight Waterproof	IP67	Receptacle Housing		7 mm	14 mm	N (Normal)			Bayonet Lock	Panel Mount			Crimp	Circular	Contacts Not Included	3 pcs	Connector Nut O-Ring	16 S	For Female Sockets		Silver
