2371899 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

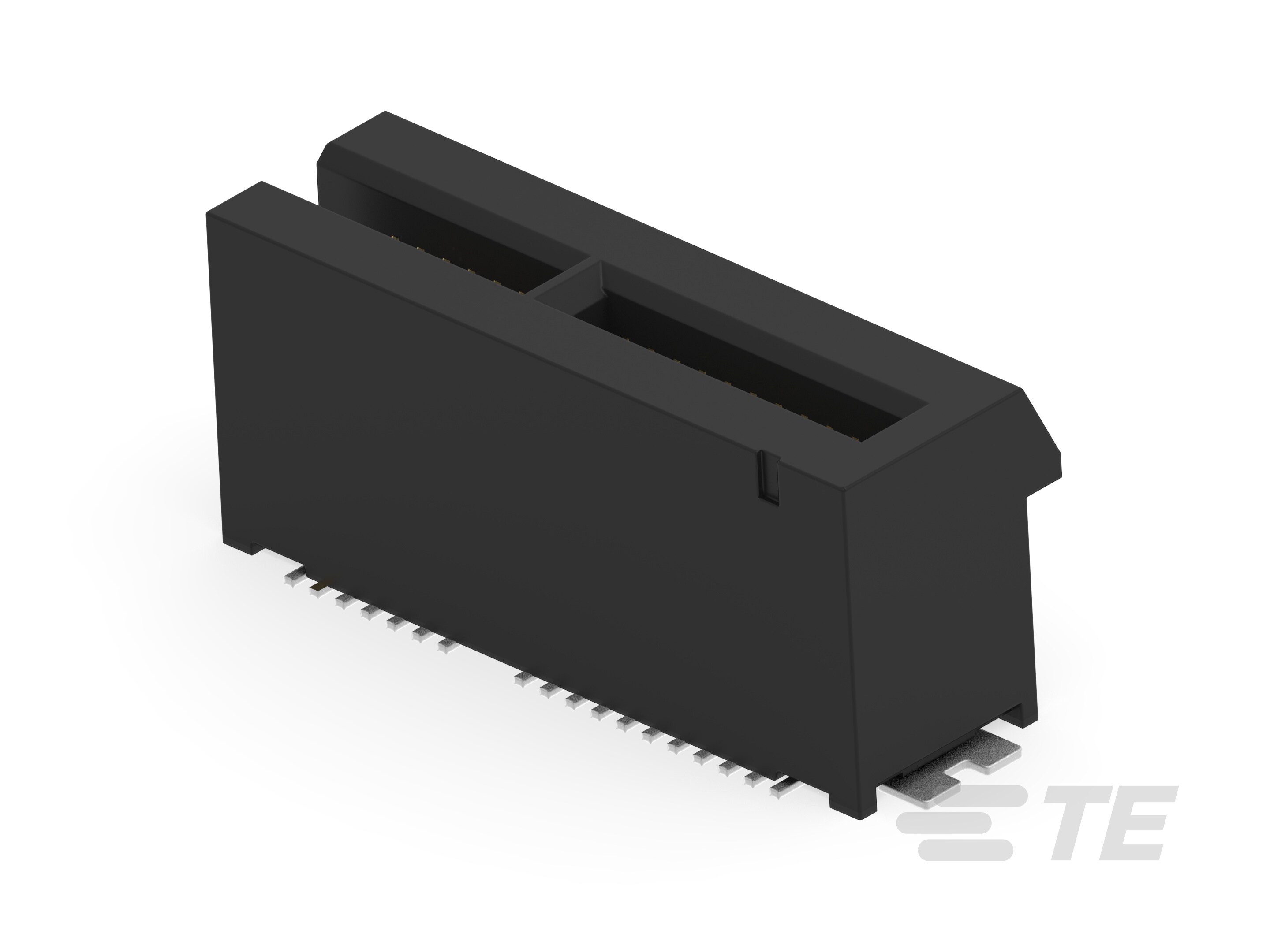

PCIE G5 CON,SMT,S-CUT,36P,15",10 MYL,ST

Part	Termination	Card Type	Material - Insulation	Contact Finish	Number of Rows	Color	Contact Finish Thickness	Number of Bay	Number of Positions	Gender	Read Out	Contact Type	Features	Card Thickness	Termination Rows	Pitch	Mounting Type	Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish Thickness (string set options)	Contact Finish Thickness
TE Connectivity AMP Connectors 4-2371899-1	Solder	PCI Express™	Plastic	Gold	2	Black	15 µin	11	7 36	Female	Dual	Cantilever	Board Guide Locking Ramp	0.062 in	2 rows	0.039 in	Surface Mount	Copper Alloy	-40 °C	85 °C

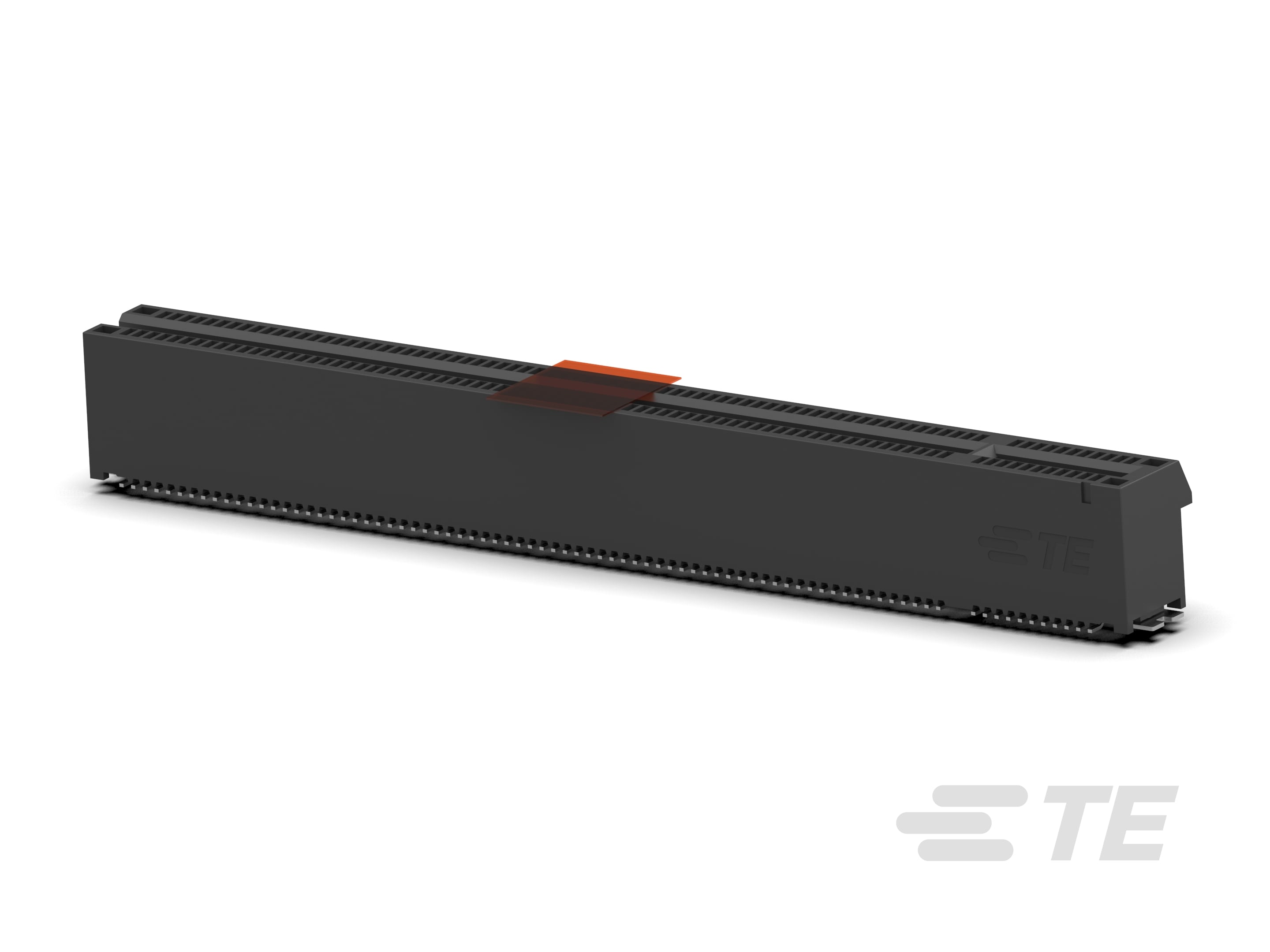

TE Connectivity AMP Connectors 2371899-4	Solder	PCI Express™	Plastic	Gold	2	Black	0	71	11 164	Female	Dual	Cantilever	Board Guide Locking Ramp Solder Retention	0.062 in	2 rows	0.039 in	Surface Mount	Copper Alloy	-40 °C	85 °C	Flash	Flash
TE Connectivity AMP Connectors 5-2371899-6	Solder	PCI Express™	Plastic	Gold	2	Black	30 µin	21	11 64	Female	Dual	Cantilever	Board Guide Locking Ramp Solder Retention	0.062 in	2 rows	0.039 in	Surface Mount	Copper Alloy	-40 °C	85 °C
TE Connectivity AMP Connectors 1-2371899-3	Solder	PCI Express™	Plastic	Gold	2	Black	15 µin	38	11 98	Female	Dual	Cantilever	Board Guide Locking Ramp Solder Retention	0.062 in	2 rows	0.039 in	Surface Mount	Copper Alloy	-40 °C	85 °C
TE Connectivity AMP Connectors 4-2371899-3	Solder	PCI Express™	Plastic	Gold	2	Black	15 µin		49 98	Female	Dual	Cantilever	Board Guide	0.062 in	2 rows	0.039 in	Surface Mount	Copper Alloy	-40 °C	85 °C
TE Connectivity AMP Connectors 4-2371899-2	Solder	PCI Express™	Plastic	Gold	2	Black	15 µin		32 64	Female	Dual	Cantilever	Board Guide	0.062 in	2 rows	0.039 in	Surface Mount	Copper Alloy	-40 °C	85 °C
TE Connectivity AMP Connectors 4-2371899-5	Solder	PCI Express™	Plastic	Gold	2	Black	15 µin	11	7 36	Female	Dual	Cantilever	Board Guide Locking Ramp Solder Retention	0.062 in	2 rows	0.039 in	Surface Mount	Copper Alloy	-40 °C	85 °C
TE Connectivity AMP Connectors 5-2371899-2	Solder	PCI Express™	Plastic	Gold	2	Black	30 µin	21	11 64	Female	Dual	Cantilever	Board Guide Locking Ramp Solder Retention	0.062 in	2 rows	0.039 in	Surface Mount	Copper Alloy	-40 °C	85 °C

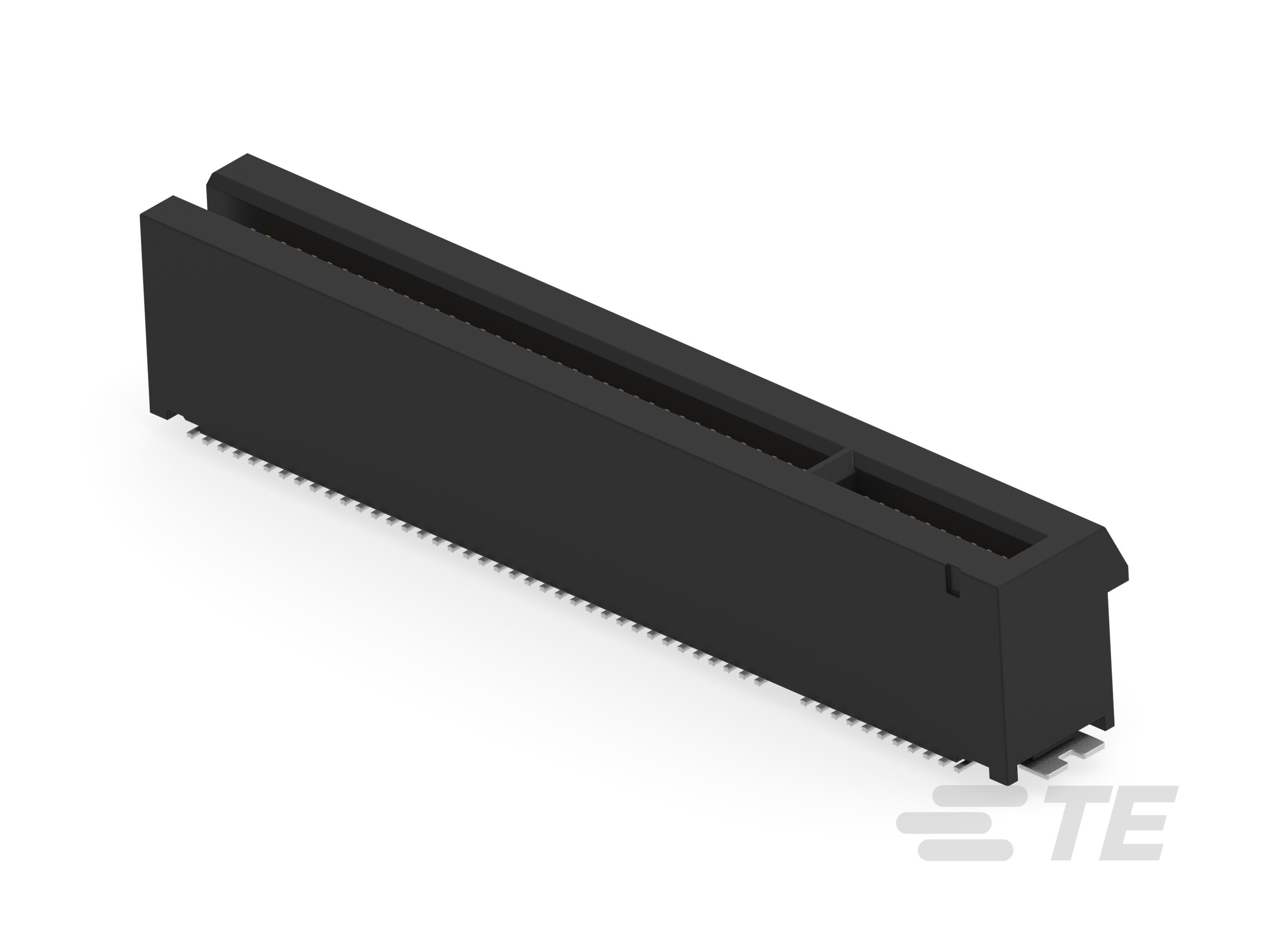

TE Connectivity AMP Connectors 5-2371899-3	Solder	PCI Express™	Plastic	Gold	2	Black	30 µin	38	11 98	Female	Dual	Cantilever	Board Guide Solder Retention	0.062 in	2 rows	0.039 in	Surface Mount	Copper Alloy	-40 °C	85 °C
