31-702 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN MINI BNC PLG STR 75 OHM
| Part | Connector Style | Center Contact Material | Contact Termination | Housing Color | Number of Ports | Fastening Type | Shield Termination | Frequency - Max | Connector Type | Impedance | Mounting Type | Cable Group | Operating Temperature (Min) | Operating Temperature (Max) | Dielectric Material | Mating Cycles | Includes Total Count | Includes | Body Finish | Voltage Rating | Body Material | Center Contact Plating | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

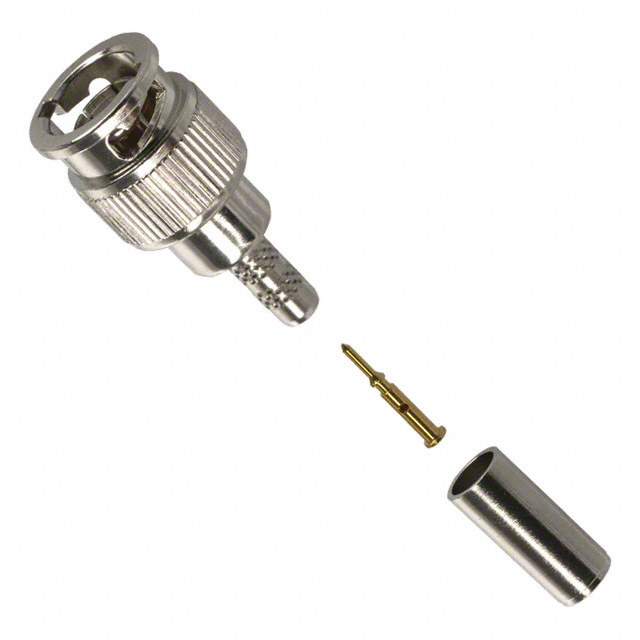

 McGill Microwave Systems | BNC Mini | Brass | Crimp | Silver | 1 | Bayonet Lock | Crimp | 4 GHz | Male Pin Plug | 75 Ohm | Free Hanging (In-Line) | 735A AT&T 735 Belden 735A1 | -40 °C | 85 °C | Polytetrafluoroethylene (PTFE) | 500 cycles | 3 pcs | Connector Contact Ferrule | Nickel | 500 V | Brass | Gold | 0.1 dB |
 McGill Microwave Systems | BNC Mini | Beryllium Copper | Solder | Silver | 1 | Bayonet Lock | Solder | 4 GHz | Female Socket Jack | 75 Ohm | Right Angle Through Hole | -40 °C | 85 °C | Polytetrafluoroethylene (PTFE) | 500 cycles | Nickel | 500 V | Brass | Gold | 0.1 dB | |||

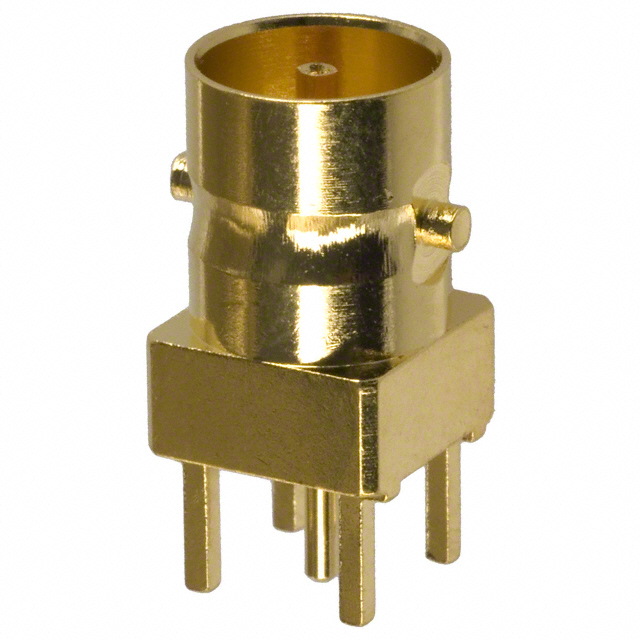

 McGill Microwave Systems | BNC Mini | Beryllium Copper | Solder | Gold | 1 | Bayonet Lock | Solder | 4 GHz | Female Socket Recepture | 75 Ohm | Through Hole | -40 °C | 85 °C | Polytetrafluoroethylene (PTFE) | 500 cycles | Gold | 500 V | Brass | Gold | 0.1 dB |
