747459 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

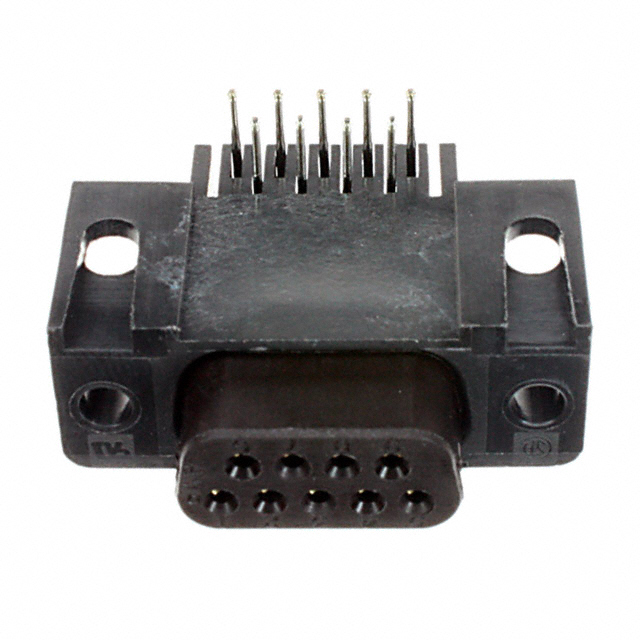

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Connector Type | Number of Rows | Current Rating (Amps) | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Mounting Type | Backset Spacing | Backset Spacing | Color | Contact Material | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Flange Feature | Contact Type | Termination | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | 2 | 6 A | 125 VDC | 0.76 Ám | 30 Áin | Gold | 105 ░C | -55 °C | UL94 V-0 | Through Hole Right Angle | 0.59 " | 14.99 mm | Black | Phosphor Bronze | D-Sub | DE E | 1 | 9 | Housing/Shell (Unthreaded) | Signal | Solder | |
TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | 2 | 6 A | 125 VDC | Gold | 105 ░C | -55 °C | UL94 V-0 | Through Hole Right Angle | 0.59 " | 14.99 mm | Black | Phosphor Bronze | D-Sub | DE E | 1 | 9 | Housing/Shell (Unthreaded) | Signal | Solder | Flash | ||
TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | 2 | 6 A | 125 VDC | Gold | 105 ░C | -55 °C | UL94 V-0 | Through Hole Right Angle | 0.59 " | 14.99 mm | Black | Phosphor Bronze | D-Sub | DE E | 1 | 9 | Female Screwlock (4-40) Mating Side | Signal | Solder | Flash | ||
TE Connectivity Raychem Cable Protection | Receptacle Female Sockets | 2 | 6 A | 125 VDC | 0.76 Ám | 30 Áin | Gold | 105 ░C | -55 °C | UL94 V-0 | Through Hole Right Angle | 0.59 " | 14.99 mm | Black | Phosphor Bronze | D-Sub | DE E | 1 | 9 | Female Screwlock (4-40) Mating Side | Signal | Solder |
