ELVH-005D Series

Catalog

SENSOR 4.93PSID

Part	Voltage - Supply	Port Style	Pressure Type	Operating Pressure (Max)	Operating Pressure (Min)	Features	Accuracy	Maximum Pressure	Output Type	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output Bits	Port Diameter	Port Feature	Port Gender	Package Width	Package Features	Package Name	Package Length

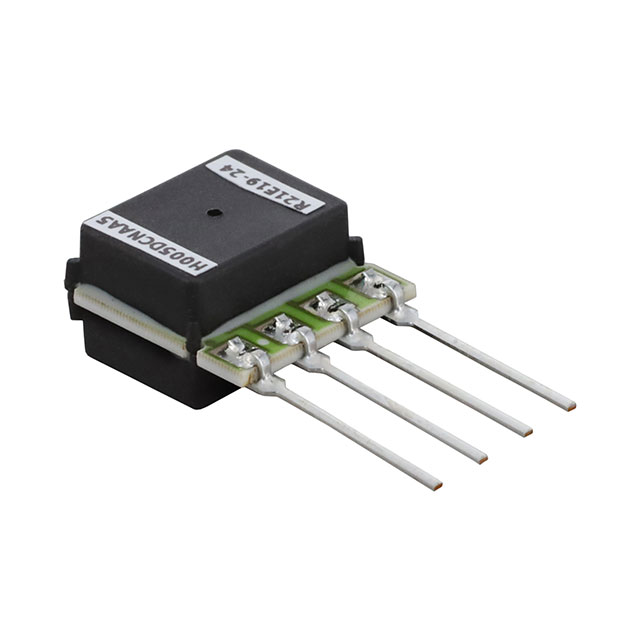

McGill Microwave Systems ELVH-005D-HNNH-C-NAA5	5 VDC	No Port	Differential	4.93 PSI	-0.44 PSI	Temperature Compensated	0.25 %	14.94 PSI	Analog Voltage	4-SIP	0 °C	50 °C	PC Pin	Through Hole	5.5 V	2.7 V

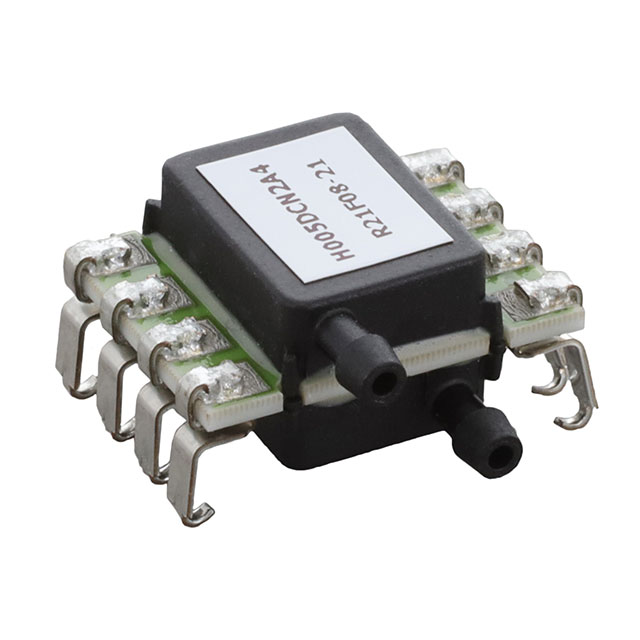

McGill Microwave Systems ELVH-005D-HRRJ-C-N2A4	3.3 V	Barbed	Differential	4.93 PSI	-0.44 PSI	Temperature Compensated	0.25 %	14.94 PSI	I2C	8-SMD Dual Ports J-Lead Same Side	0 °C	50 °C	J Lead	Surface Mount	5.5 V	2.7 V	14 b	0.06 in	Dual Tube	Male
McGill Microwave Systems ELVH-005D-HRRD-C-N2A5	5 VDC	Barbed	Differential	4.93 PSI	-0.44 PSI	Temperature Compensated	0.25 %	14.94 PSI	I2C		0 °C	50 °C	PC Pin	Through Hole	5.5 V	2.7 V	14 b	0.06 in	Dual Tube	Male	12.8 mm	Dual Ports Same Side	8-DIP	0.504 in
McGill Microwave Systems ELVH-005D-HRRD-I-NAA5	5 VDC	Barbed	Differential	4.93 PSI	-0.44 PSI	Temperature Compensated	0.25 %	14.94 PSI	Analog Voltage		-20 °C	85 °C	PC Pin	Through Hole	5.5 V	2.7 V		0.06 in	Dual Tube	Male	12.8 mm	Dual Ports Same Side	8-DIP	0.504 in

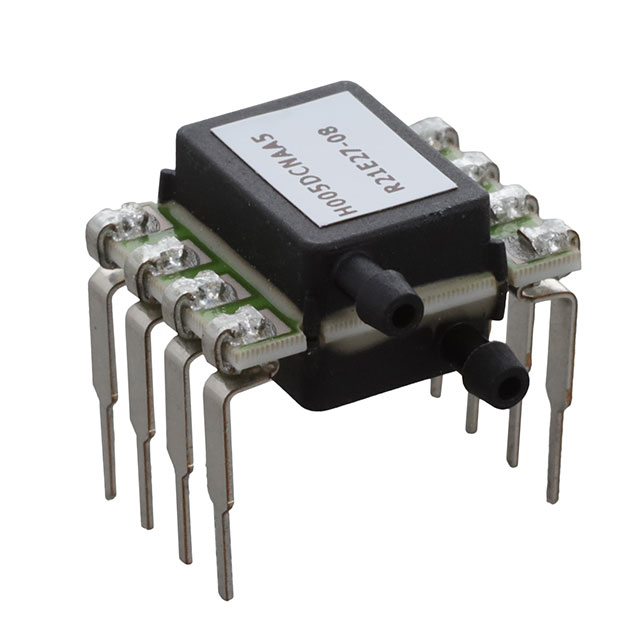

McGill Microwave Systems ELVH-005D-HRRD-C-NAA5	5 VDC	Barbed	Differential	4.93 PSI	-0.44 PSI	Temperature Compensated	0.25 %	14.94 PSI	Analog Voltage		0 °C	50 °C	PC Pin	Through Hole	5.5 V	2.7 V		0.06 in	Dual Tube	Male	12.8 mm	Dual Ports Same Side	8-DIP	0.504 in
McGill Microwave Systems ELVH-005D-HRRJ-I-NAA4	3.3 V	Barbed	Differential	4.93 PSI	-0.44 PSI	Temperature Compensated	0.25 %	14.94 PSI	Analog Voltage	8-SMD Dual Ports J-Lead Same Side	-20 °C	85 °C	J Lead	Surface Mount	5.5 V	2.7 V		0.06 in	Dual Tube	Male
