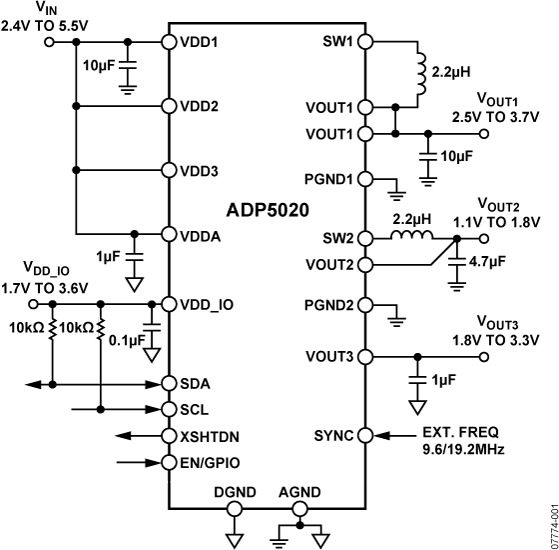

ADP5020 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
BOARD EVAL PMU IMAGING ADP5020
| Part | Non-Isolated Output Count | Output Type | Total Output Count | Supplied Contents | Board Type | Frequency - Switching | Contents | Current - Output (Value 1) | Current - Output (Value 2) | Current - Output (Value 3) | Regulator Topology | Voltage - Output | Voltage - Input (Minimum) | Voltage - Input (Maximum) | Utilized IC / Part | Main Purpose | Current - Supply | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Applications | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Package Length | Package Name | Package Width | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 3 | Non-Isolated | 3 | Board(s) | Fully Populated | 3 MHz | Board | 600 mA | 250 mA | 150 mA | Buck | 1.2 V 1.8 V 3.3 V | 2.4 V | 5.5 V | ADP5020 | DC/DC Step Down with LDO | |||||||||||
 Analog Devices Inc./Maxim Integrated | 10 mA | -40 °C | 85 °C | Surface Mount | Handheld/Mobile Devices | 2.4 V | 5.5 V | 4 mm | 20-LFCSP | 4 mm | 20-WFQFN Exposed Pad CSP |
