Q-030340 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

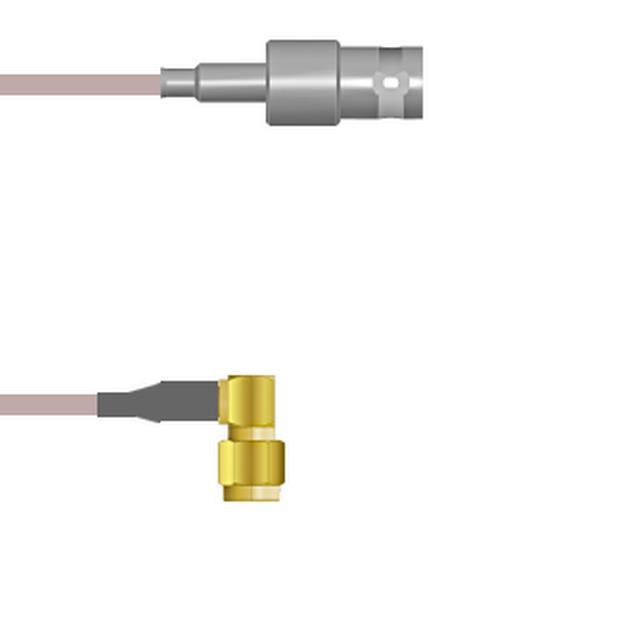

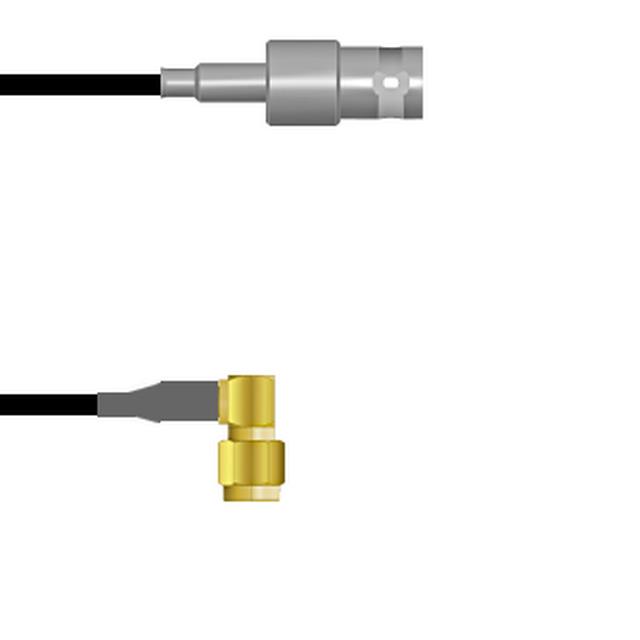

CBL ASSY BNC-SMA JACK-PLUG 3.3'
| Part | Features | Cable Type | Overall Impedance | 2nd Contact Gender | 2nd Connector Mounting Type | Frequency - Max | 2nd Connector | Length | 1st Contact Gender | Color | 1st Connector Mounting Type | 1st Connector | Style | Length (ft) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Shielded | 174 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | 39.4 in | Female | Black | Free Hanging (In-Line) | BNC Jack | BNC SMA | |
 McGill Microwave Systems | Shielded | 316 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | 9.843 in | Female | Copper | Free Hanging (In-Line) | BNC Jack | BNC SMA | |
McGill Microwave Systems | Shielded | 174 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | Female | Black | Free Hanging (In-Line) | BNC Jack | BNC SMA | 6.6 ft | |
McGill Microwave Systems | Shielded | 316 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | 36 in | Female | Copper | Free Hanging (In-Line) | BNC Jack | BNC SMA | |
McGill Microwave Systems | Shielded | 316 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | 29.53 in | Female | Copper | Free Hanging (In-Line) | BNC Jack | BNC SMA | |
McGill Microwave Systems | Shielded | 174 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | 9.843 in | Female | Black | Free Hanging (In-Line) | BNC Jack | BNC SMA | |
McGill Microwave Systems | Shielded | 174 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | 24 in | Female | Black | Free Hanging (In-Line) | BNC Jack | BNC SMA | |
McGill Microwave Systems | Shielded | 316 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | 3 " | Female | Copper | Free Hanging (In-Line) | BNC Jack | BNC SMA | |
McGill Microwave Systems | Shielded | 174 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | 3 " | Female | Black | Free Hanging (In-Line) | BNC Jack | BNC SMA | |
McGill Microwave Systems | Shielded | 316 RG | 50 Ohms | Male | Free Hanging (In-Line) | 4 GHz | Right Angle SMA Plug | 18 in | Female | Copper | Free Hanging (In-Line) | BNC Jack | BNC SMA |
