3SBM1 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

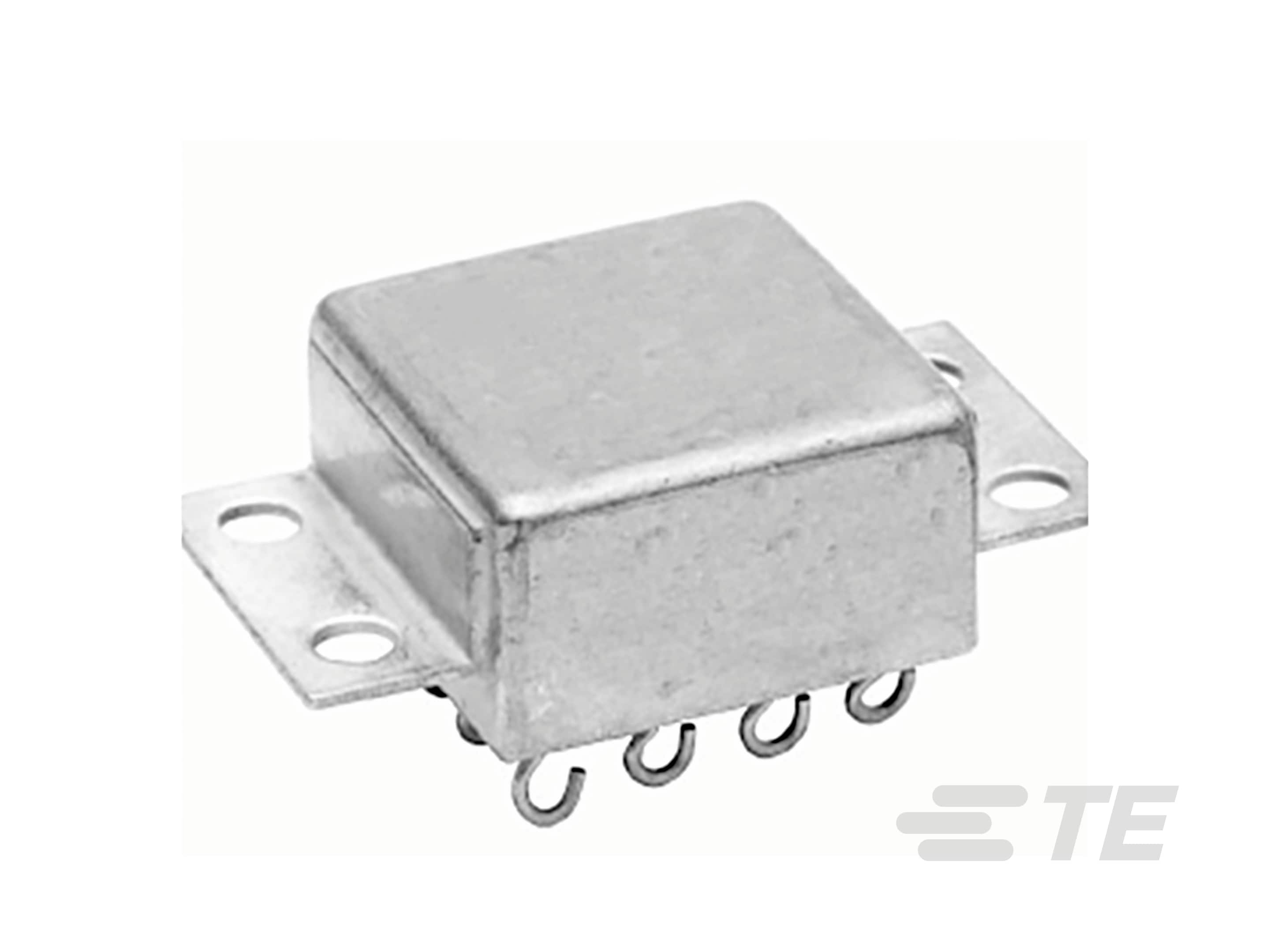

RELAY GEN PURPOSE 4PDT 2A 12V

Part	Mounting Type	Coil Type	Coil Voltage	Switching Voltage (Nominal)	Features	Seal Rating	Contact Rating (Current)	Pin Count	Contact Form	Relay Type	Operate Time	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Release Time	Coil Current	Coil Resistance	Load - Max Switching (Real Power)	Load - Max Switching (Apparent Power)	Switching Voltage DC (Max)	Switching Voltage AC (Max)	Must Operate Voltage	Qualification	Grade
TE Connectivity AMP Connectors 3SBM1108A2	Chassis Mount	Dual Coil Latching	12 VAC	28 VDC	Diode	Hermetically Sealed	2 A	4	4 C Form PDT	General Purpose	4 ms	125 °C	-65 °C	PC Pin	4 ms	82.8 mA
TE Connectivity AMP Connectors 1-1617086-5
TE Connectivity AMP Connectors 3SBM1069A2	Through Hole	Non Latching	6 VAC			Hermetically Sealed	2 A	4	4 C Form PDT	General Purpose	4 ms	125 °C	-65 °C	PC Pin	4 ms	162.2 mA	37 Ohms	56 W	230 VA	28 VDC	115 VAC	2.6 VDC
TE Connectivity AMP Connectors 1617086-7		Non Latching					2 A	4	4 C Form PDT	General Purpose	4 ms	125 °C	-65 °C	PC Pin	4 ms								31 MIL-R-39016	Military
TE Connectivity AMP Connectors 1-1617086-4
TE Connectivity AMP Connectors 1-1617086-4	Through Hole	Non Latching	26.5 VDC				2 A	4	4 C Form PDT	General Purpose	4 ms	125 °C	-65 °C	PC Pin	4 ms	27.2 mA	975 Ohms					13.5 VDC	31 MIL-R-39016	Military
TE Connectivity AMP Connectors 3SBM1069A2	Through Hole	Non Latching	6 VAC			Hermetically Sealed	2 A	4	4 C Form PDT	General Purpose	4 ms	125 °C	-65 °C	PC Pin	4 ms	162.2 mA		56 W	230 VA	28 VDC	115 VAC	2.6 VDC
TE Connectivity AMP Connectors 3SBM1108A2	Chassis Mount	Dual Coil Latching	12 VAC	28 VDC	Diode	Hermetically Sealed	2 A	4	4 C Form PDT	General Purpose	4 ms	125 °C	-65 °C	PC Pin	4 ms	82.8 mA	145 Ohms
TE Connectivity AMP Connectors 1-1617086-5	Chassis Mount	Non Latching	26.5 VDC				2 A	4	4 C Form PDT	General Purpose	4 ms	125 °C	-65 °C	Solder Hook	4 ms	27.2 mA	975 Ohms					13.5 VDC	31 MIL-R-39016	Military
TE Connectivity AMP Connectors 1-1617086-1	Chassis Mount	Non Latching	26.5 VDC				2 A	4	4 C Form PDT	General Purpose	4 ms	125 °C	-65 °C	Solder Hook	4 ms								31 MIL-R-39016	Military
