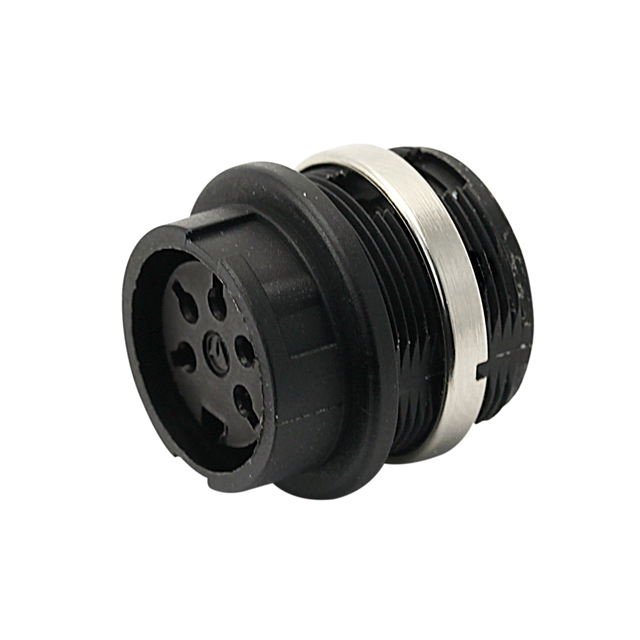

T 3427 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
STRAIGHT, FULL PLASTIC FRONT MOU
| Part | Color | Ingress Protection | Mounting Feature | Applications | Mounting Type | Shell Material | Number of Positions | Contact Finish - Mating | Operating Temperature (Max) | Operating Temperature (Min) | Termination | Connector Type | Shielding | Material Flammability Rating | Orientation | Primary Material | Insert Material | Current Rating | Fastening Type | Voltage Rating | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Black | IP40 | Bulkhead Rear Side Nut | Industrial Instrumentation Marine Medical Testing Equipment & Measurement | Panel Mount | Plastic | 6 | Gold | 100 °C | -40 °C | Solder Cup | Female Sockets Receptacle | Unshielded | UL94 V-0 | Keyed | Plastic | Thermoplastic | 7 A | Bayonet Lock | 250 V | M16-6 |
