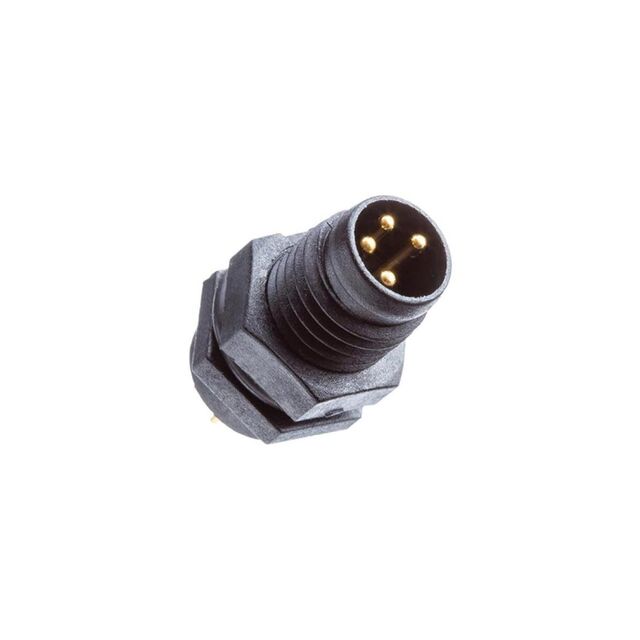

8AP-02PMMS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
M8 CONN WITH KEY
| Part | Insert Material | Ingress Protection Description | Ingress Protection IP Rating | Current Rating | Primary Material | Shell Material | Shielding | Voltage Rating | Termination | Number of Positions | Material Flammability Rating | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Shell Size - Insert | Orientation | Mounting Feature | Fastening Type | Color | Contact Finish - Mating | Connector Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Glass Filled Nylon PA Polyamide | Dust Tight Waterproof | IP67 | 3 A | Plastic | Glass Filled Nylon Polyamide (PA) | Unshielded | 60 V | Solder Cup | 2 | UL94 V-0 | -40 °C | 105 °C | Copper Alloy | M8-2 | Keyed | Bulkhead Front Side Nut | Threaded | Black | Gold | Male Pins Receptacle | Panel Mount |
