2311775 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

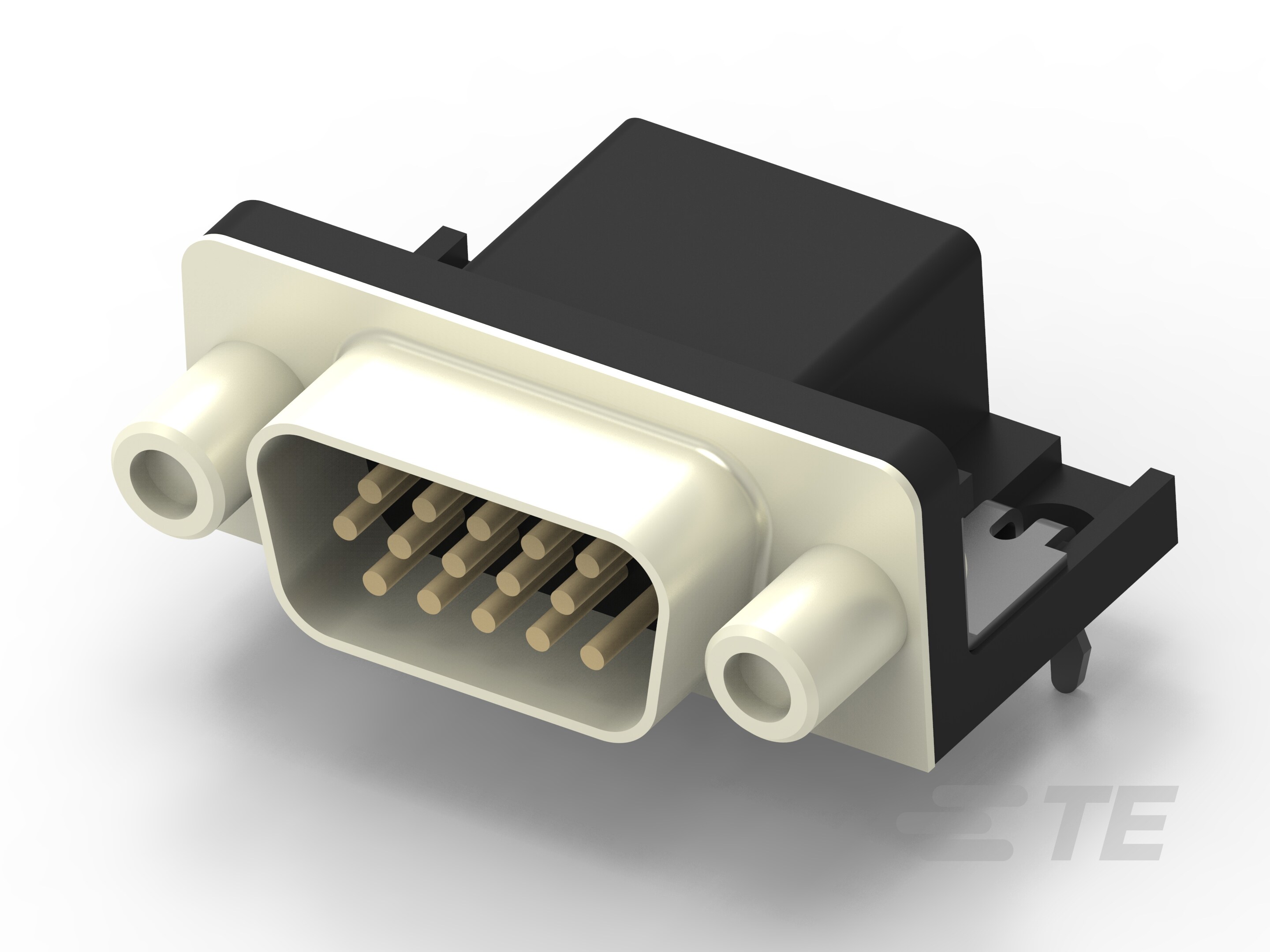

CONN D-SUB HD PLUG 15P R/A SLDR
| Part | Mounting Type | Number of Positions | Shell Material | Finish | Contact Finish Thickness | Backset Spacing | Number of Rows | Connector Style | Shell Size | Connector Layout | Features | Current Rating (Per Contact) | Flange Feature | Connector Type | Material Flammability Rating | Contact Finish | Termination | Contact Type | Dielectric Material | Voltage Rating | Color | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Right Angle Through Hole | 15 | Steel | Nickel Plated | 30 µin | 0.35 in | 3 | D-Sub High Density | 1 | DE E High Density | Board Lock Grounding Indents | 3 A | Female Screwlock (4-40) Mating Side | Male Pins Plug | UL94 V-0 | Gold | Solder | Signal | Glass Filled Polybutylene Terephthalate (PBT) | 250 V | Black | -55 °C | 85 °C | Brass |
