FA1-NDRP Series

Catalog

CONN FAKRA PLUG R/A 50 OHM PCB

Part	Mating Cycles	Includes	Includes Total Count	Insertion Loss	Body Finish	Dielectric Material	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Body Material	Impedance	Number of Ports	Features	Center Contact Material	Contact Termination	Mounting Type	Fastening Type	Connector Type	Shield Termination	Housing Color	Connector Style	Frequency - Max
McGill Microwave Systems FA1-NDRP-PCB-9	100 cycles	Connector Housing	2 pcs	0.3 dB	Tin	Polytetrafluoroethylene (PTFE)	Gold	125 °C	-65 °C	Zinc Die Cast	50 Ohm	1	Code D	Brass	Solder	Right Angle Through Hole	Locking Ramp	Male Pin Plug	Solder	Claret Violet	Fakra SMB	6000 MHz
McGill Microwave Systems FA1-NDRP-PCB-8A	100 cycles				Tin	Polytetrafluoroethylene (PTFE)	Gold	125 °C	-65 °C	Zinc Die Cast	50 Ohm	1	Code D	Brass	Solder	Right Angle Through Hole	Locking Ramp	Male Pin Plug	Solder	Claret Violet	Fakra SMB	6000 MHz

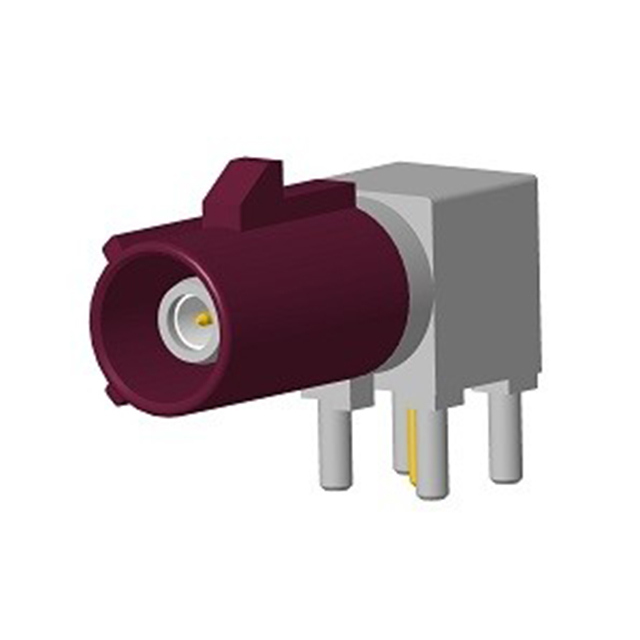

McGill Microwave Systems FA1-NDRP-PCBT10	100 cycles				Tin	Polytetrafluoroethylene (PTFE)	Gold	100 °C	-40 °C	Zinc Die Cast	50 Ohm	1	Code D	Brass	Solder	Right Angle Through Hole	Locking Ramp	Male Pin Plug	Solder	Claret Violet	Fakra SMB	6000 MHz
McGill Microwave Systems FA1-NDRP-PCB-8	100 cycles	Connector Housing	2 pcs	0.3 dB	Tin	Polytetrafluoroethylene (PTFE)	Gold	125 °C	-65 °C	Zinc Die Cast	50 Ohm	1	Code D	Brass	Solder	Right Angle Through Hole	Locking Ramp	Male Pin Plug	Solder	Claret Violet	Fakra SMB	6000 MHz
