PS7142 Series

Manufacturer: Renesas Electronics Corporation

Catalog

SSR RELAY SPST-NO 200MA 0-400V

Part	Mounting Type	Output Type	Voltage - Load (Max)	On-State Resistance (Max)	Package Length	Package Name	Operating Temperature (Min)	Operating Temperature (Max)	Load Current	Voltage - Input	Circuit	Termination Style	Approval Agency	Package Width

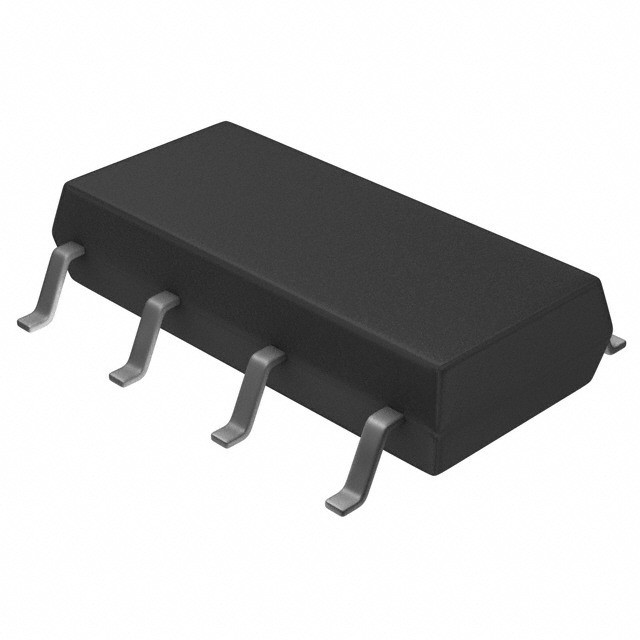

Renesas Electronics Corporation PS7142L-2A-E3-A	Surface Mount	AC DC	400 V	10 Ohm	0.3 in	8-SMD	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NO (1 Form A) x 2	Gull Wing	BSI CSA UL
Renesas Electronics Corporation PS7142-2A-A	Through Hole	AC DC	400 V	10 Ohm	0.3 in	8-DIP	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NO (1 Form A) x 2	PC Pin	BSI CSA UL	7.62 mm

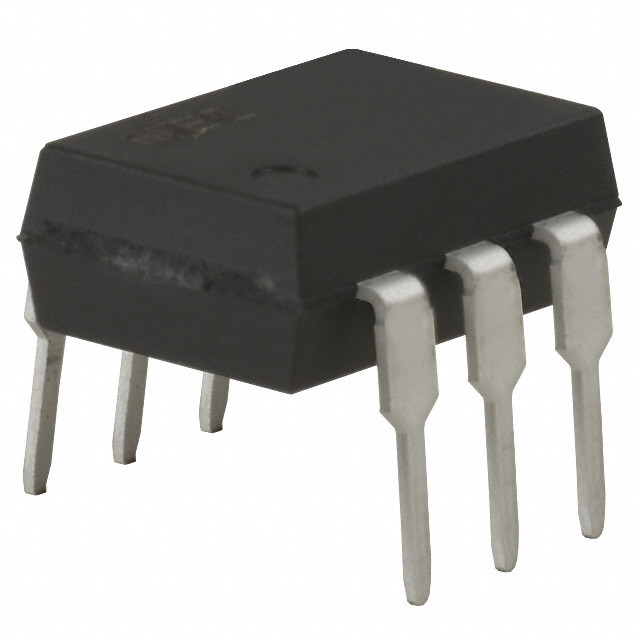

Renesas Electronics Corporation PS7142-1A-A	Through Hole	AC DC	400 V	10 Ohm	0.3 in	6-DIP	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NO (1 Form A)	PC Pin	BSI CSA UL	7.62 mm
Renesas Electronics Corporation PS7142-1B-A	Through Hole	AC DC	400 V	12 Ohm	0.3 in	6-DIP	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NC (1 Form B)	PC Pin	BSI CSA UL	7.62 mm
Renesas Electronics Corporation PS7142L-1C-A	Surface Mount	AC DC	400 V	12 Ohm	0.3 in	8-SMD	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NC (1 Form A and B) SPST-NO	Gull Wing	BSI CSA UL
Renesas Electronics Corporation PS7142L-1B-A	Surface Mount	AC DC	400 V	12 Ohm	0.3 in	6-SMD	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NC (1 Form B)	Gull Wing	BSI CSA UL	7.62 mm
Renesas Electronics Corporation PS7142-1C-A	Through Hole	AC DC	400 V	12 Ohm	0.3 in	8-DIP	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NC (1 Form A and B) SPST-NO	PC Pin	BSI CSA UL	7.62 mm
Renesas Electronics Corporation PS7142L-1A-A	Surface Mount	AC DC	400 V	10 Ohm	0.3 in	6-DIP Gull Wing 6-SMD	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NO (1 Form A)	Gull Wing	BSI CSA UL	7.62 mm
Renesas Electronics Corporation PS7142L-2A-A	Surface Mount	AC DC	400 V	10 Ohm	0.3 in	8-SMD	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NO (1 Form A) x 2	Gull Wing	BSI CSA UL
Renesas Electronics Corporation PS7142L-1B-E3-A	Surface Mount	AC DC	400 V	12 Ohm	0.3 in	6-SMD	-40 °C	85 °C	200 mA	1.2 VDC	SPST-NC (1 Form B)	Gull Wing	BSI CSA UL	7.62 mm
