DLVR-L01D Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
SENSOR 0.04PSID 0.08" 14BIT 4SIP
| Part | Termination Style | Operating Pressure | Port Diameter | Port Gender | Port Feature | Package Name | Operating Temperature (Max) | Operating Temperature (Min) | Maximum Pressure | Port Style | Voltage - Supply | Applications | Output Type | Package / Case | Output Bits | Accuracy | Pressure Type | Features | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

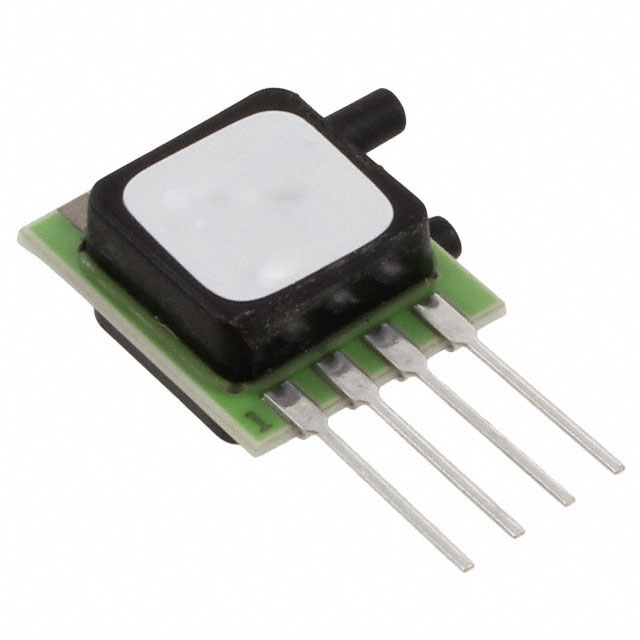

 McGill Microwave Systems | PC Pin | 0.04 PSI | 0.08 in | Male | Dual Tube | 4-SIP | 85 °C | -25 °C | 3.61 PSI | Barbless | 5 VDC | Board Mount | I2C | 4-SIP Module | 14 b | 1 % | Differential | Temperature Compensated | Through Hole |

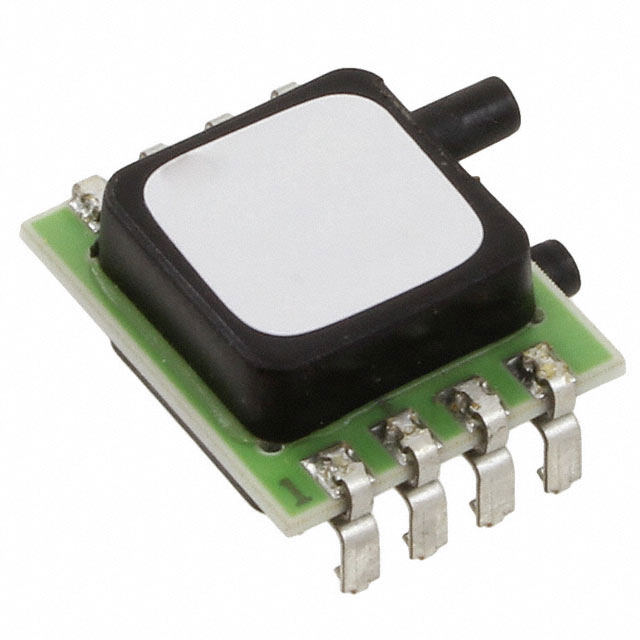

 McGill Microwave Systems | SMD (SMT) Tab | 0.04 PSI | 0.08 in | Male | Dual Tube | 8-SMD | 85 °C | -25 °C | 3.61 PSI | Barbless | 3.3 V | Board Mount | I2C | 8-SMD Module | 14 b | 1 % | Differential | Temperature Compensated | Surface Mount |
 McGill Microwave Systems | SMD (SMT) Tab | 0.04 PSI | 0.08 in | Male | Dual Tube | 8-SMD | 85 °C | -25 °C | 3.61 PSI | Barbless | 5 VDC | Board Mount | I2C | 8-SMD Module | 14 b | 1 % | Differential | Temperature Compensated | Surface Mount |
 McGill Microwave Systems | PC Pin | 0.04 PSI | 0.08 in | Male | Dual Tube | 4-SIP | 85 °C | -25 °C | 3.61 PSI | Barbless | 5 VDC | Board Mount | I2C | 4-SIP Module | 14 b | 1 % | Differential | Temperature Compensated | Through Hole |
 McGill Microwave Systems | SMD (SMT) Tab | 0.04 PSI | 0.08 in | Male | Dual Tube | 8-SMD | 85 °C | -25 °C | 3.61 PSI | Barbless | 5 VDC | Board Mount | I2C | 8-SMD Module | 14 b | 1 % | Differential | Temperature Compensated | Surface Mount |
McGill Microwave Systems | PC Pin | 0.04 PSI | 0.08 in | Male | Dual Tube | 4-SIP | 85 °C | -25 °C | 3.61 PSI | Barbless | 3.3 V | Board Mount | I2C | 4-SIP Module | 14 b | 1 % | Differential | Temperature Compensated | Through Hole |
