PB6B2 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

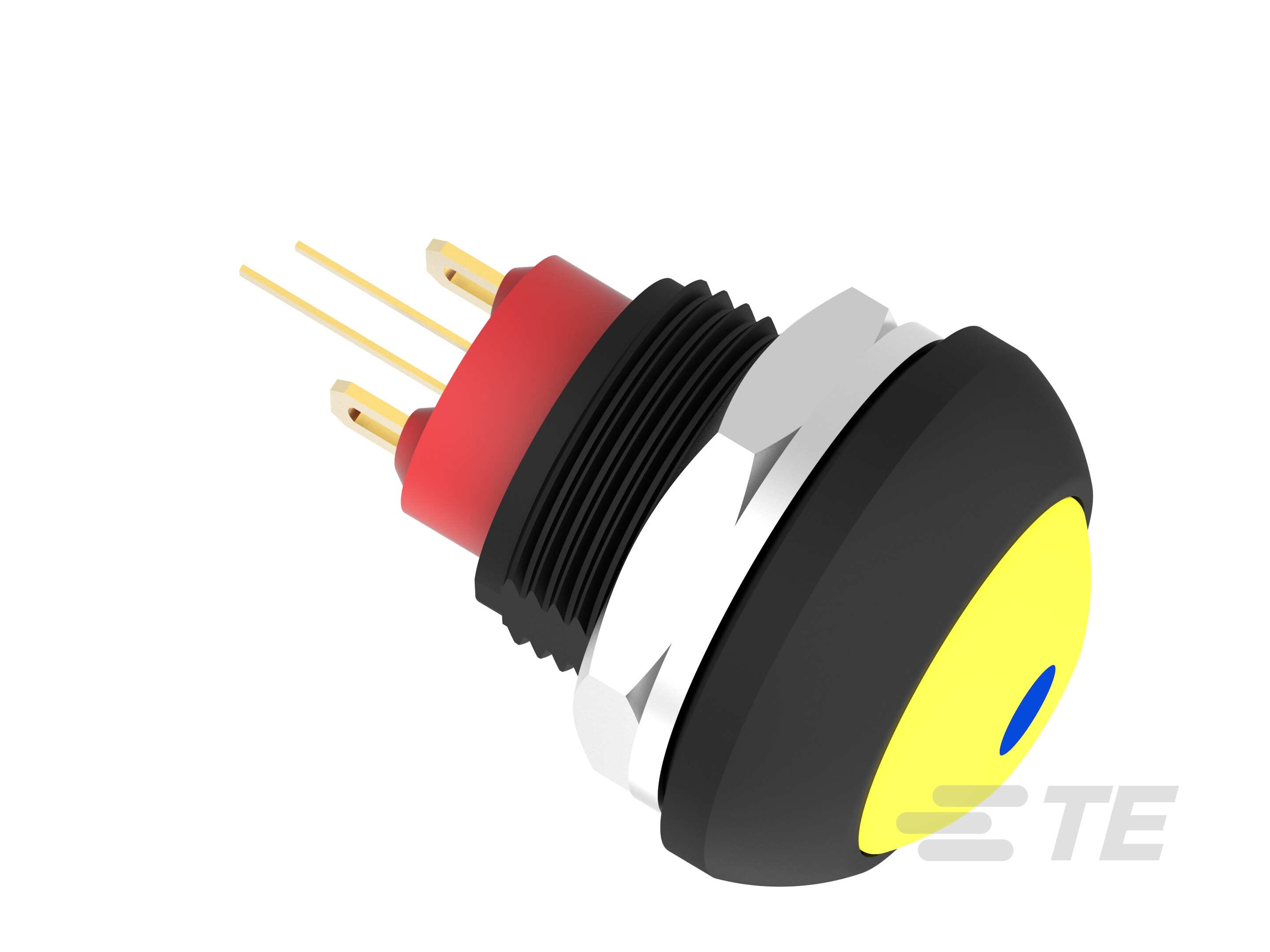

SWITCH PUSH SPST-NO 125MA 125V
| Part | Actuator Marking | Switch Function | Type | Actuator Type | Mounting Type | Termination Style | Operating Temperature (Max) | Operating Temperature (Min) | Color - Actuator/Cap | Voltage Rating - AC | Panel Cutout Diameter | Panel Cutout Shape | Voltage Rating - DC | Current Rating | Illumination Type | Color | Ingress Protection IP Rating | Ingress Protection Description | Circuit | Electrical Life (Cycles) | Mechanical Life (Cycles) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | No Marking | Off-Mom | Illuminated Standard | Button Round | Front Panel Mount | Solder Lug | 85 °C | -30 °C | Yellow | 125 V | 13.6 mm | Circular | 50 V | 125 mA 200 mA | LED | Blue | IP68 | Dust Tight Waterproof | SPST-NO | 500000 | 1000000 Cycles |
