JBXEP2G Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 8POS GOLD SOLDER

Part	Shell Finish	Current Rating	Fastening Type	Shell Material	Voltage Rating	Ingress Protection	Contact Finish Thickness - Mating	Connector Type	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Mounting Feature	Contact Finish - Mating	Primary Material	Color	Shell Size - Insert	Shell Size - Insert	Material Flammability Rating	Termination	Shielding	Orientation	Mounting Type	Number of Positions
Amphenol Aerospace Operations JBXEP2G08FPSDS	Chrome Nickel	10 A	Push-Pull	Brass	830 V	IP40	19.7 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Solder	Shielded	G	Panel Mount Through Hole	8
Amphenol Aerospace Operations JBXEP2G06FCSDS	Chrome Nickel	12 A	Push-Pull	Brass	900 V	IP40	19.7 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Crimp	Shielded	G	Panel Mount	6
Amphenol Aerospace Operations JBXEP2G12FSSDS	Chrome Nickel	7 A	Push-Pull	Brass	830 V	IP40	19.7 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Solder Cup	Shielded	G	Panel Mount	12
Amphenol Aerospace Operations JBXEP2G08MCSDS	Chrome Nickel	10 A	Push-Pull	Brass	830 V	IP40	19.7 µin	Male Pins Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Crimp	Shielded	G	Panel Mount	8
Amphenol Aerospace Operations JBXEP2G12FQSDS	Chrome Nickel	7 A	Push-Pull	Brass	830 V	IP40	19.7 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Solder	Shielded	G	Panel Mount Right Angle Through Hole	12
Amphenol Aerospace Operations JBXEP2G03FCSDS	Chrome Nickel	17 A	Push-Pull	Brass	830 V	IP40	19.7 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Crimp	Shielded	G	Panel Mount	3

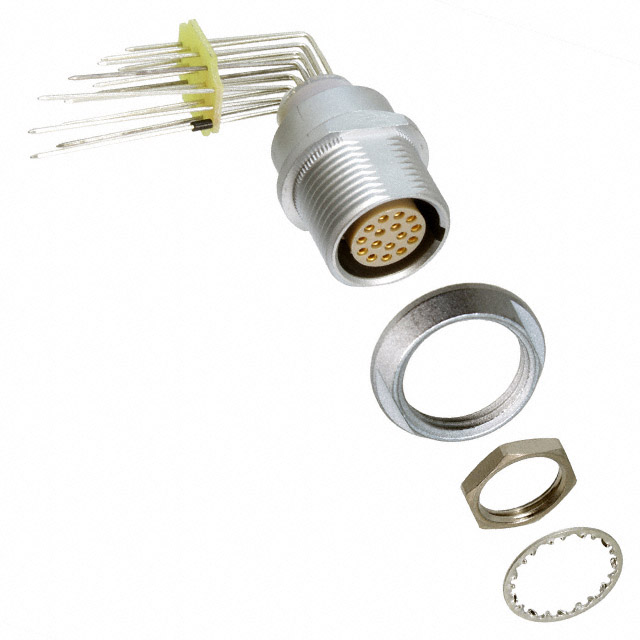

Amphenol Aerospace Operations JBXEP2G16FQSDS	Chrome Nickel	6 A	Push-Pull	Brass	730 V	IP40	19.7 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Solder	Shielded	G	Panel Mount Right Angle Through Hole	16
Amphenol Aerospace Operations JBXEP2G04FPSDS	Chrome Nickel	15 A	Push-Pull	Brass	1000 V	IP40	19.7 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Solder	Shielded	G	Panel Mount Through Hole	4
Amphenol Aerospace Operations JBXEP2G16FSSDS	Chrome Nickel	6 A	Push-Pull	Brass	730 V	IP40	19.7 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Solder Cup	Shielded	G	Panel Mount	16

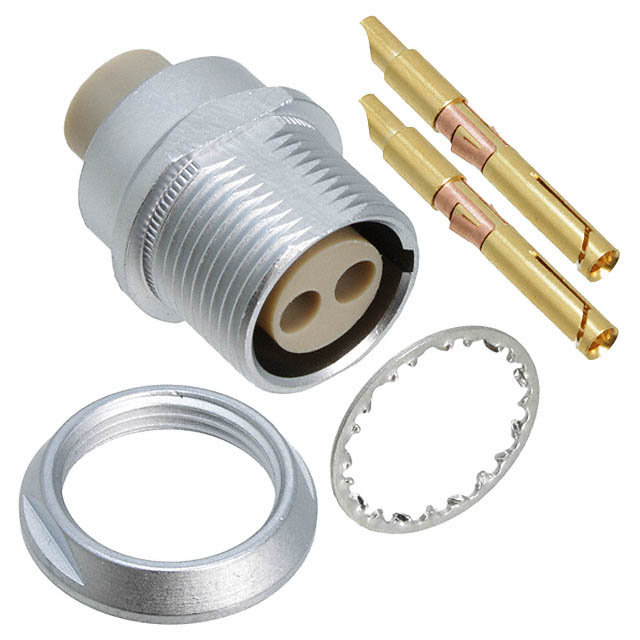

Amphenol Aerospace Operations JBXEP2G02FSSDS	Chrome Nickel	30 A	Push-Pull	Brass	1000 V	IP40	19.7 µin	Female Sockets Receptacle	PEEK Polyetheretherketone	125 °C	-40 °C	Industrial Instrumentation Medical Telecommunications	Bulkhead Front Side Nut	Gold	Metal	Silver	2	2	UL94 V-0	Solder Cup	Shielded	G	Panel Mount	2
