Q-0301U0 Series

Catalog

COAX CBL BNC TO N-TYPE 8.2'

Part	2nd Connector Mounting Type	Overall Impedance	Color	2nd Contact Gender	Features	Style	1st Connector Mounting Type	2nd Connector	1st Contact Gender	1st Connector	Length (ft)	Length	2nd Connector Mounting Feature	Frequency - Max	Cable Type

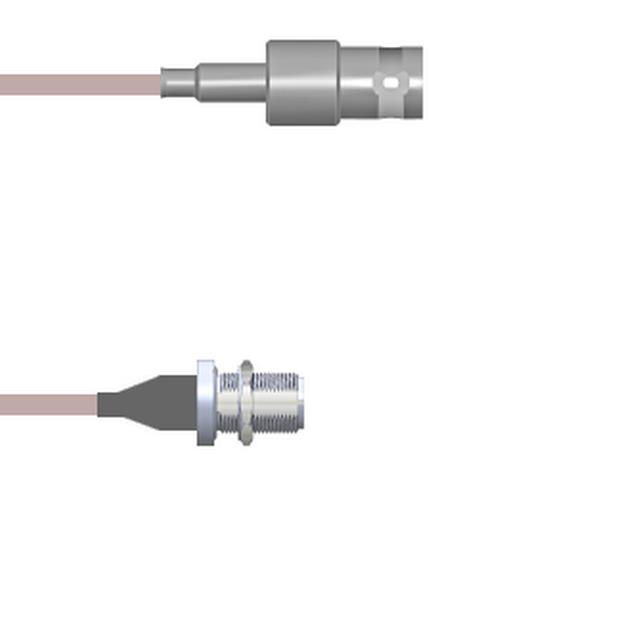

McGill Microwave Systems Q-0301U00052.5M	Panel Mount	50 Ohms	Copper	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack	8.2 ft	98.4 in	Bulkhead - Front Side Nut	4 GHz	316 RG

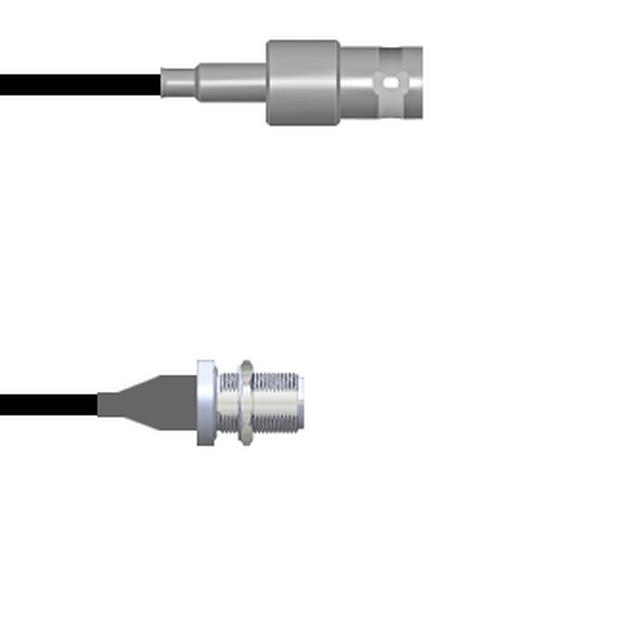

McGill Microwave Systems Q-0301U0003009i	Panel Mount	50 Ohms	Black	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack		228.6 mm	Bulkhead - Front Side Nut	4 GHz	174 RG
McGill Microwave Systems Q-0301U0005003i	Panel Mount	50 Ohms	Copper	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack		3 "	Bulkhead - Front Side Nut	4 GHz	316 RG
McGill Microwave Systems Q-0301U0003012i	Panel Mount	50 Ohms	Black	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack		12 in	Bulkhead - Front Side Nut	4 GHz	174 RG
McGill Microwave Systems Q-0301U0003003i	Panel Mount	50 Ohms	Black	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack		3 "	Bulkhead - Front Side Nut	4 GHz	174 RG
McGill Microwave Systems Q-0301U0003.25M	Panel Mount	50 Ohms	Black	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack		9.843 in	Bulkhead - Front Side Nut	4 GHz	174 RG
McGill Microwave Systems Q-0301U0003036i	Panel Mount	50 Ohms	Black	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack		36 in	Bulkhead - Front Side Nut	4 GHz	174 RG
McGill Microwave Systems Q-0301U00030.5M	Panel Mount	50 Ohms	Black	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack		19.69 in	Bulkhead - Front Side Nut	4 GHz	174 RG
McGill Microwave Systems Q-0301U0003072i	Panel Mount	50 Ohms	Black	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack		72 in	Bulkhead - Front Side Nut	4 GHz	174 RG
McGill Microwave Systems Q-0301U0003006i	Panel Mount	50 Ohms	Black	Female	Shielded	BNC N-Type	Free Hanging (In-Line)	N-Type Jack	Female	BNC Jack		0.5 ft	Bulkhead - Front Side Nut	4 GHz	174 RG
