MKRBWT Series

Catalog

LED XLAMP WARM WHITE 3000K 2SMD

Part	Thermal Resistance of Package	Package / Case	Color	Height - Seated (Max)	Viewing Angle	CCT (K)	CCT Description	Mounting Type	Size / Dimension Width	Size / Dimension Length	CRI (Color Rendering Index)	Current - Max	Current - Test	Lumens/Watt	Voltage - Forward (Vf) (Typ)	Flux (Minimum)	Flux (Typical)	Flux (Maximum)

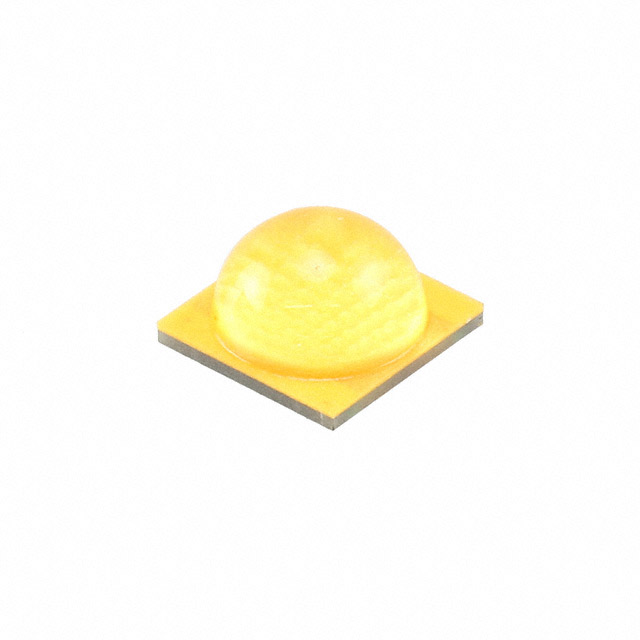

CreeLED, Inc. MKRBWT-00-0000-0N0HG230H	1.7 °C/W	2828 (7070 Metric)	Warm White	0.166 in	120 °	3000 K	2-Step MacAdam Ellipse	Surface Mount	0.276 in	0.276 in
CreeLED, Inc. MKRBWT-02-0000-0N0HG430H	1.7 °C/W	2828 (7070 Metric)	Warm White	0.166 in	120 °	3000 K	2-Step MacAdam Ellipse	Surface Mount	0.276 in	0.276 in	80	420 mA	233 mA	104 lm/W	36 V	840 lm	870 lm	900 lm
CreeLED, Inc. MKRBWT-02-0000-0N0HG227F	1.7 °C/W	2828 (7070 Metric)	Warm White	0.166 in	120 °	2700 K	4-Step MacAdam Ellipse	Surface Mount	0.276 in	0.276 in	80	420 mA	233 mA	97 lm/W	36 V	780 lm	810 lm	840 lm
CreeLED, Inc. MKRBWT-00-0000-0N0HG230F	1.7 °C/W	2828 (7070 Metric)	Warm White	0.166 in	120 °	3000 K	4-Step MacAdam Ellipse	Surface Mount	0.276 in	0.276 in
CreeLED, Inc. MKRBWT-02-0000-0N0HG227H	1.7 °C/W	2828 (7070 Metric)	Warm White	0.166 in	120 °	2700 K	4-Step MacAdam Ellipse	Surface Mount	0.276 in	0.276 in	80	420 mA	233 mA	97 lm/W	36 V	780 lm	810 lm	840 lm
CreeLED, Inc. MKRBWT-00-0000-0N0HF427F	1.7 °C/W	2828 (7070 Metric)	Warm White	0.166 in	120 °	2700 K	4-Step MacAdam Ellipse	Surface Mount	0.276 in	0.276 in	80	420 mA	233 mA	90 lm/W	36 V	730 lm	755 lm	780 lm
CreeLED, Inc. MKRBWT-00-0000-0N0HG430F	1.7 °C/W	2828 (7070 Metric)	Warm White	0.166 in	120 °	3000 K	4-Step MacAdam Ellipse	Surface Mount	0.276 in	0.276 in
CreeLED, Inc. MKRBWT-00-0000-0N0HG227F	1.7 °C/W	2828 (7070 Metric)	Warm White	0.166 in	120 °	2700 K	4-Step MacAdam Ellipse	Surface Mount	0.276 in	0.276 in	80	420 mA	233 mA	97 lm/W	36 V	780 lm	810 lm	840 lm
