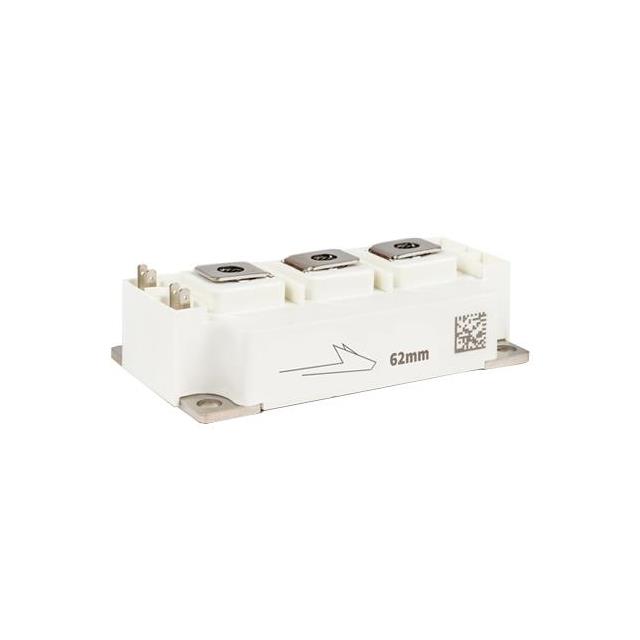

CAS120 Series
Manufacturer: Wolfspeed, Inc.
Beta
⌘K
MOSFET 2N-CH 1200V 193A MODULE
| Part | Current - Continuous Drain (Id) (Tc) | Package / Case | Vgs(th) (Max) | Channel Count | Configuration - Features | Configuration | Power - Max | Drain to Source Voltage (Vdss) | Rds On (Max) | Package Name | Technology | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Gate Charge (Max) | Input Capacitance (Ciss) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Wolfspeed, Inc. | 193 A | Module | 2.6 V | 2 | Half Bridge | N-Channel | 925 W | 1200 V | 16 mOhm | Module | Silicon Carbide (SiC) | Chassis Mount | -40 °C | 150 °C | 378 nC | 6470 pF |
