RTS018 Series

Catalog

CONN RCPT HSG FMALE 23POS PNL MT

Part	Number of Positions	Mounting Type	Includes Total Count	Includes	Contact Shape	Shell Material	Insert Material	Ingress Protection IP Rating	Ingress Protection Description	Contact Size	Contact Type	Orientation	Housing Color	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Type	Material Flammability Rating	Fastening Type	Mounting Feature	Note	Shell Size - Insert Width	Shell Size - Insert Length	Features	For Use With/Related Products	Material	Accessory Type	Color	Shell Size - Insert	Shell Size - Insert

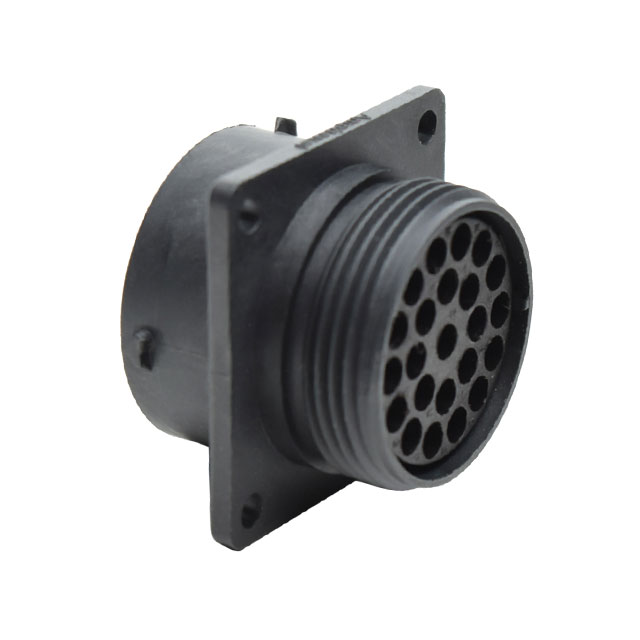

McGill Microwave Systems RTS018N23S03	23	Panel Mount	2 pcs	Connector Gasket	Circular	Thermoplastic	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	16 S	Crimp	N (Normal)	Black	23	18	Receptacle Housing	125 °C	-40 °C	Unshielded	For Female Sockets	UL94 V-0	Bayonet Lock	Flange	Contacts Not Included

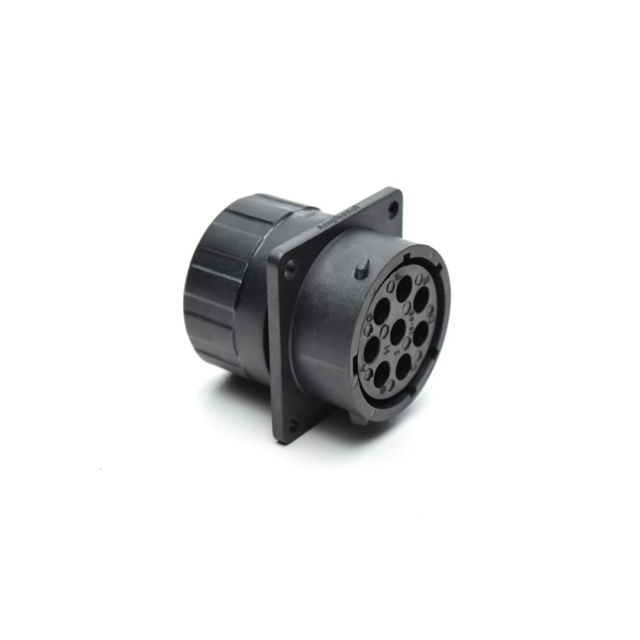

McGill Microwave Systems RTS018N8SHEC03	8	Panel Mount	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	Circular	Thermoplastic	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	2.5 mm	Crimp	N (Normal)	Black			Receptacle Housing	125 °C	-40 °C	Unshielded	For Female Sockets	UL94 V-0	Bayonet Lock	Flange	Contacts Not Included	8 mm	18 mm	Backshell
McGill Microwave Systems RTS018N8PHEC03	8	Panel Mount	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	Circular	Thermoplastic	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	2.5 mm	Crimp	N (Normal)	Black			Receptacle Housing	125 °C	-40 °C	Unshielded	For Male Pins	UL94 V-0	Bayonet Lock	Flange	Contacts Not Included	8 mm	18 mm	Backshell
McGill Microwave Systems RTS018N32PHEC03	32	Panel Mount	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	Circular	Thermoplastic	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	20	Crimp	N (Normal)	Black	32	18	Receptacle Housing	125 °C	-40 °C	Unshielded	For Male Pins	UL94 V-0	Bayonet Lock	Flange	Contacts Not Included			Backshell

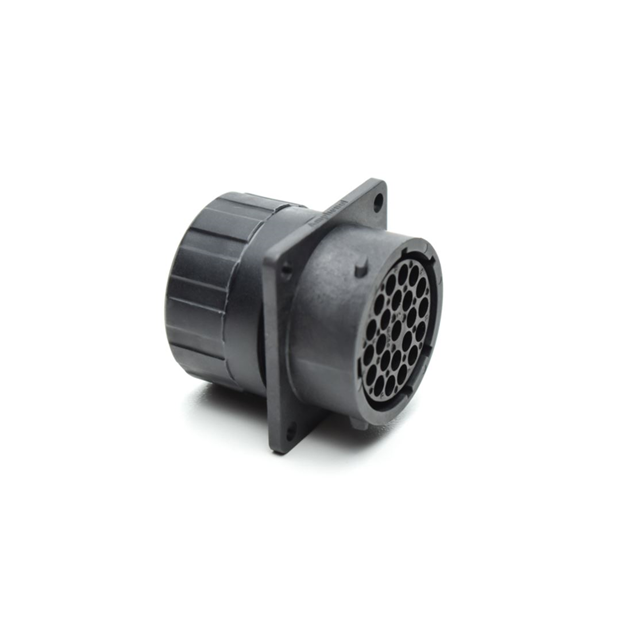

McGill Microwave Systems RTS018N23SHEC03	23	Panel Mount	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	Circular	Thermoplastic	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	16 S	Crimp	N (Normal)	Black	23	18	Receptacle Housing	125 °C	-40 °C	Unshielded	For Female Sockets	UL94 V-0	Bayonet Lock	Flange	Contacts Not Included			Backshell

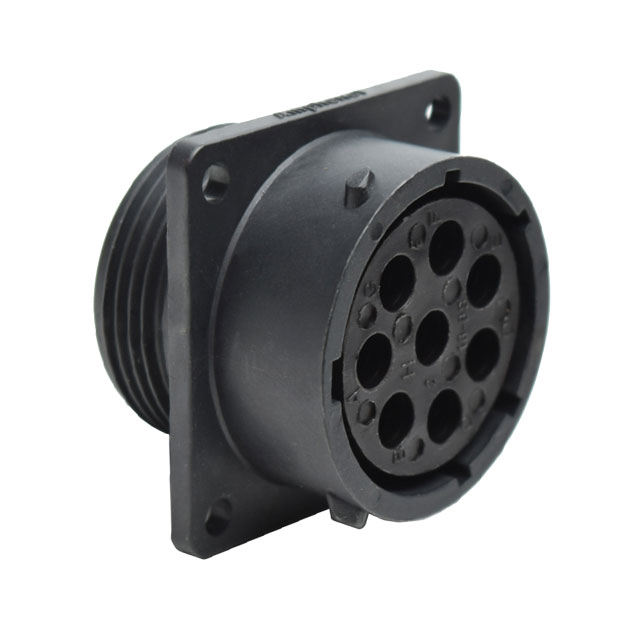

McGill Microwave Systems RTS018N8S03	8	Panel Mount	2 pcs	Connector Gasket	Circular	Thermoplastic	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	2.5 mm	Crimp	N (Normal)	Black			Receptacle Housing	125 °C	-40 °C	Unshielded	For Female Sockets	UL94 V-0	Bayonet Lock	Flange	Contacts Not Included	8 mm	18 mm
McGill Microwave Systems RTS018N23PHEC03	23	Panel Mount	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	Circular	Thermoplastic	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	16 S	Crimp	N (Normal)	Black	23	18	Receptacle Housing	125 °C	-40 °C	Unshielded	For Male Pins	UL94 V-0	Bayonet Lock	Flange	Contacts Not Included			Backshell

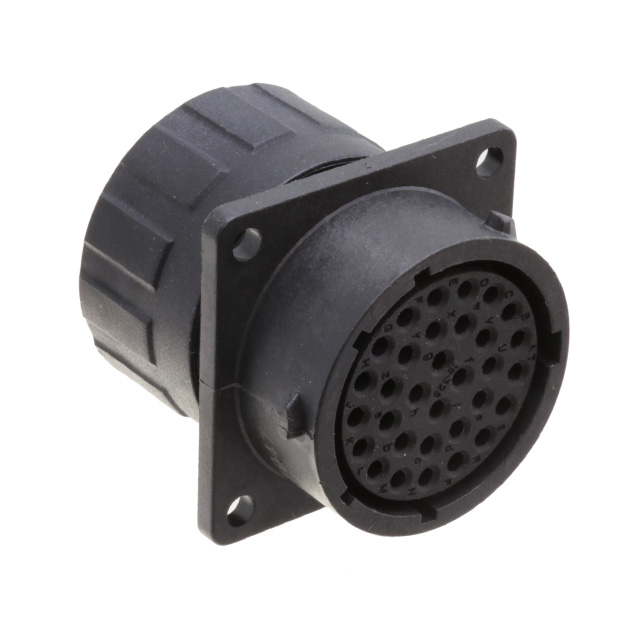

McGill Microwave Systems RTS018N32SHEC03	32	Panel Mount	6 pcs	Backshell Connector Gasket O-Ring Ring Seal	Circular	Thermoplastic	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	20	Crimp	N (Normal)	Black	32	18	Receptacle Housing	125 °C	-40 °C	Unshielded	For Female Sockets	UL94 V-0	Bayonet Lock	Flange	Contacts Not Included			Backshell

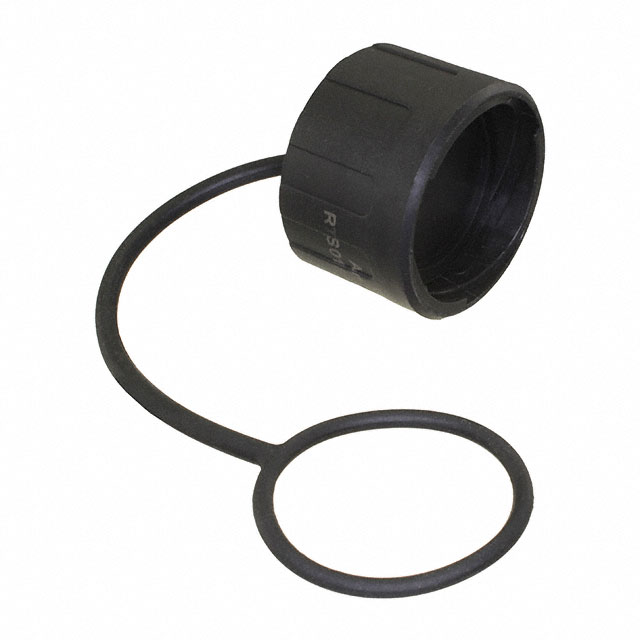

McGill Microwave Systems RTS018DCG																											Contains Strap with Ring Dust Tight Waterproof	Receptacle Connectors	Thermoplastic	Cap (Cover) Dust	Black	18	18

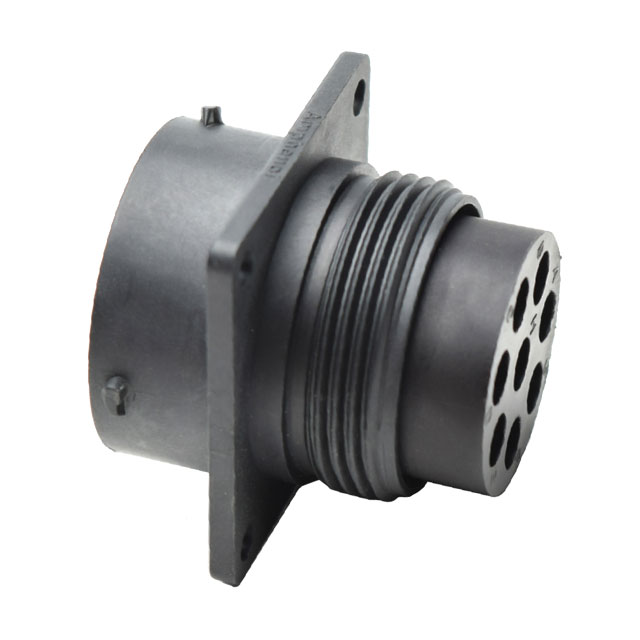

McGill Microwave Systems RTS018N8P03	8	Panel Mount	2 pcs	Connector Gasket	Circular	Thermoplastic	Thermoplastic	IP67 IP69K	Dust Tight Water Resistant Waterproof	2.5 mm	Crimp	N (Normal)	Black			Receptacle Housing	125 °C	-40 °C	Unshielded	For Male Pins	UL94 V-0	Bayonet Lock	Flange	Contacts Not Included	8 mm	18 mm
