hn Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

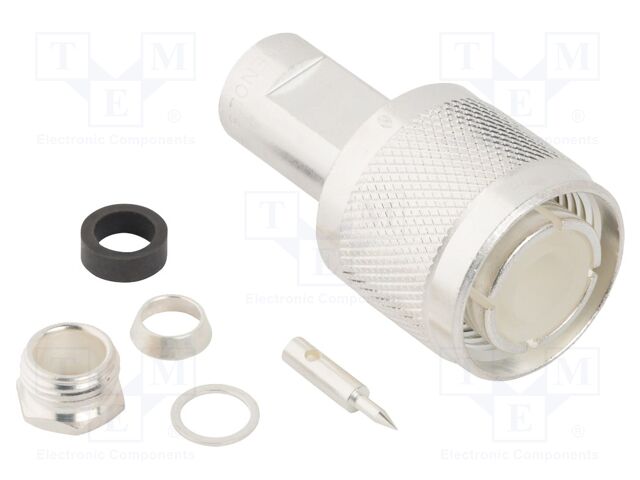

CONNECTOR: COAXIAL; PLUG; MALE; HN; SOLDERING,CLAMP; FOR CABLE
| Part | Connector Type | Mounting Type | Number of Ports | Ingress Protection | Shield Termination | Impedance | Housing Color | Cable Group | Cable Group Current Rating | Fastening Type | Connector Style | Center Contact Material | Contact Termination | Frequency - Max | Operating Temperature (Min) | Operating Temperature (Max) | Center Contact Plating | Dielectric Material | Voltage Rating | Includes | Includes Total Count | Body Finish | Body Material | Mating Cycles | Features | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Male Pin Plug | Free Hanging (In-Line) | 1 | Weatherproof | Clamp | 50 Ohm | Silver | 143 212 54 89248 9290 Belden 1152A RG-6 | 6 A | Threaded | HN Type | Brass | Solder | 4 GHz | -65 °C | 165 °C | Silver | Polytetrafluoroethylene (PTFE) | 1500 V | Braid Clamp Clamp Connector Contact Gasket Washer | 6 pcs | Silver | Brass | 500 cycles | ||
 McGill Microwave Systems | Female Socket Jack | Panel Mount | 1 | Weatherproof | Solder | 50 Ohm | Silver | Threaded | HN Type | Beryllium Copper | Solder Cup | 4 GHz | Extended Insulation | Flange | ||||||||||||
 McGill Microwave Systems | Male Pin Plug | 1 | Clamp | 50 Ohm | Silver | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | Threaded | HN Type | Brass | Solder | 4 GHz | -65 °C | 165 °C | Silver | Polytetrafluoroethylene (PTFE) | Nickel | Brass | 500 cycles |
