2337826 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

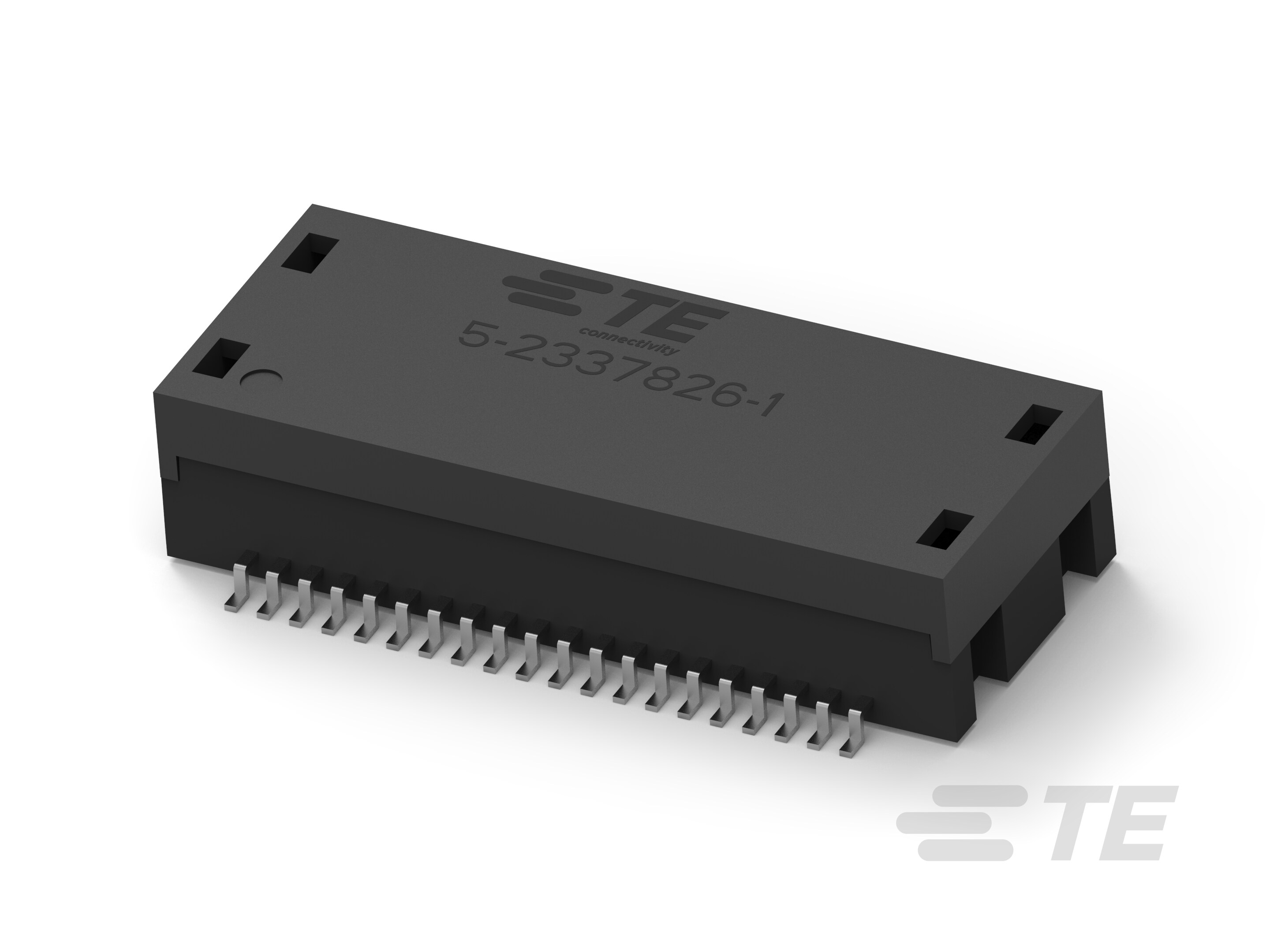

ETHERNET & LAN TRANSFORMER, 10/100 BASE-T, 4 PORT, 1CT:1CT, 350 ΜH, 1.5 KV, SURFACE MOUNT
| Part | Size / Dimension Length | Size / Dimension Width | Termination Style | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Isolation | Height - Seated (Max) | Insertion Loss (Max) | Return Loss (Min) | Turns Ratio - Secondary | Turns Ratio - Primary |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.232 in | 0.482 in | Gull Wing | Surface Mount | -40 °C | 105 °C | 1500 Vrns | 0.285 in | -1 dB | -18 dB | 1 | 1 |
